Product Specifications
Product Description

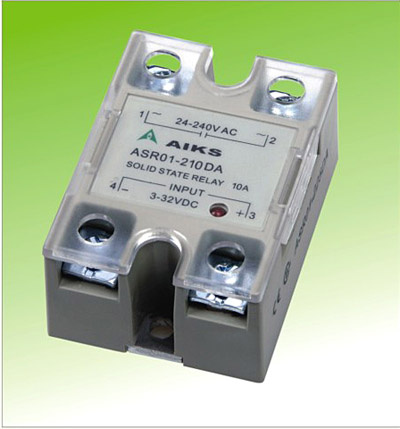

Solid State Relay (ssr Solid State)ASR01-210DA
Input voltage: 3-32VDC
Load volage: 24-240VAC
Load current: 10A/15A/25A/40A/
Outline size: 58*43*27(mm)
General
|
Operational voltage range
|
24-240Vac
|
Operational frequency range
|
47-53Hz
|
Input
|
Rated control voltage range
|
3-32Vdc
|
Pick-up voltage
|
3 Vdc, 90Vac
|
Drop-out voltage
|
1 Vdc, 20 Vac
|
Input current
|
4.5-20mA, 2-15mA
|
Pick-up and Drop-out time(50 Hz)
|
10 ms max
|
Input-ON indication
|
LED
|
Output
|
Rated operational current
|
10, 15, 25 or 40A
|
Zero crossing detection
|
Yes
|
Protection
|
Off-state leakage current at rated voltage and frequency
|
≤4.5mA
|
Dielectric Strength
|
2500Vac @ 1min
|
Mechanical
|
External dimensions
|
58*43*27 (mm)
|
Terminals
|
Screw
|
Environmental
|
Operational temperature
|
-30 to +80°C (-22 to +176°F)
|
Humidity max
|
95%, no condensation
|
