Yueqing Uzola Electric Co., Ltd. >> Solid State Relay (SSR)

Solid State Relay (SSR)

Name: Solid State Relay (SSR)
Brand: China-Manufacturer-Directory.com
SKU: 668929882
Availability: InStock
Rating: 4.6 (51 reviews)

Supplier:	Yueqing Uzola Electric Co., Ltd.
Price:	Negotiable
Min Order:	10/Piece
Quantity::
Trade Terms:	CIF

Product Specifications

Prod Model:	SSR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

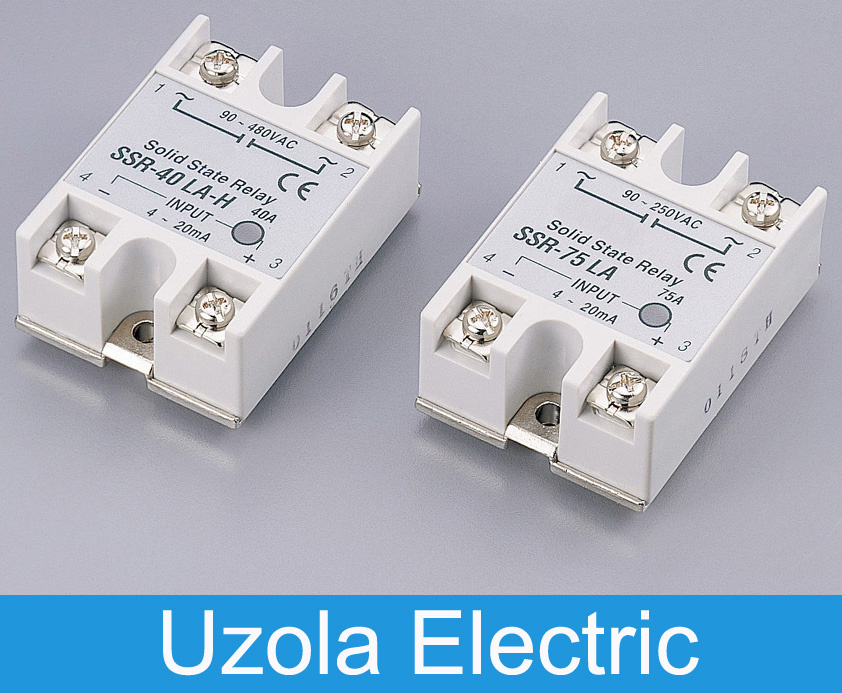

FOTEK Linear control Solid state relay,solid state module,SSR relay

Descriptions:

Type	Terminal Type
Model	SSR-25LA	SSR-40LA	SSR-50LA	SSR-75LA
Rated Load Current	25A	40A	50A	75A
Input Data
Input	4~20mA
Input Resistance	Appr. 1.2KΩ
Control Method	Phase Control
Output Data
Operating Voltage	90~250VAC
Min. Block Voltage	600VAC (Repetive)
Max. One cycle Surge	275A	410A	550A	820A
Leakage Current	<=0.5% of Full Load
Peak Voltage	Over 1200VAC
General Data
Dielectric Strength	Over 2.5KVAC / 1min.
Isolation Strength	Over 50MΩ / 500VDC
Operating Temperature	-20°C ~ + 80°C
Housing Material	Intensive ABS
Weight	Appr. 105g		Appr. 110g
