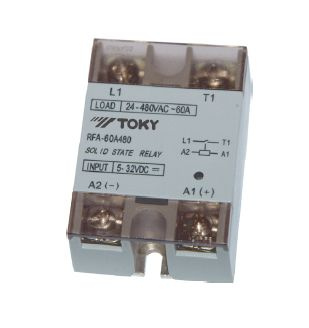

Solid State Relay with Heat Sink, SSR (RFA)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CPT |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
RFA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features:
1)Using photoelectric coupling isolation,Compressive strength read 2kv between the input - output - fin.
2)Zero-cross activation,to avoid high-frequency interference when on\off.
3)RC filter circuit can absorb Surge avoid malfunction occurs and to protect the chip.
4)RFA adopt 2 signal phase reverse parallel SCR to constitute enhanced control mode.
5)RFA adopt large volume of chip welding technology with large loading allowance and high coefficient of heat transfer, etc
6)The input use constant current circuit to ensure consumption between 6 ~ 32 v current constant.
Mounting Note:
1)Use a heat sink (accessory) to protect solid state relays, and the heat sink must be grounded.
2)Must install quick fuse.
3)Radiator must choose correct model according to the work-environment temperature and load current.
4)Contact distance between the heat sink and rediator should not be greater than 0.05mm when you install the radiator the rough degree should not be greater than 0.02mm.
Note:
1)It can ensure the thermal conductivity without impurities using a gram of thermal Grease to paint on metal surface of heat sink.
2)Tightening up the 2 nuts in turn,the M4 nut torque of 1.2 NM , the M5 nut torque of 0.75M.
3)Suggest that open check whether the normal installation, ensure the metal coating and heat conduction layer without bubbles.
