Elecal Electric Appliance Co., Ltd. >> Solid State Relay

Solid State Relay

Name: Solid State Relay
Brand: China-Manufacturer-Directory.com
SKU: 765998165
Availability: InStock
Rating: 5 (103 reviews)

Supplier:	Elecal Electric Appliance Co., Ltd.
Price:	US $ 10/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Application :
· Current:5-400A
· Voltage:24-440V
· All models feature the same compact dimensions.
· Built-in MOV effectively absorbs extermal surges.
· Operation indicator(red LEDa)enables monitoring operation .
· Protective cover for greater safety .
· DC and AC,ACand AC,DC and DC,AC and DC input versions available.

Type	ZG3NA	ZG3NC	ZG3V
Dimensions(mm)	58 × 43 × 27	57 × 44 × 22	104 × 73.5 × 24
Function	Many kinds of input standards SSR, With operation display
Output	Insulation	Photoelectric coupler
Load Voltage	3-32VDC / 90-420VAC
Current	10~40A	10~80A
Leakage Current	100VAC 5mA 200VAC 10mA
VoRmVceo	1000
di/dt(A/us)	200
dv/dt(v/us)	400
I2t(A2S)	25~3000
Tj(^oC)Max.TJ(C)	100
Input	Input Voltage	3-32VDC / 90-250VAC
Input Current	<40mA
Off Voltage	1VDC
On Voltage	3VDC
Off Time	0.5ms DC / 10msAC
On Time	0.5ms DC / 10msAC
Dielectric Strength	50Hz, 60S 2500VAC
Ambient Temperature	-30^oC~80^oC(Under non-ice / dewfall condition)
Efficiency of Safety Working Current	Dissipative load is 60% / Inductive load is 40%

Type	Input Voltage	Output Voltage	Output Current (A)
ZG3T-203B	3-32VDC	30-240VAC	3
ZG3T-303B	3-32VDC	90-480VAC	3
ZG3M-301B	3-32VDC	90-480VAC	1
ZG3N-203B	3-32VDC	30-240VAC	3
ZG3M-208B	3-32VDC	30-240VAC	8
ZG3V-301B	3-32VDC	90-480VAC	1
SSR-25DA	3-32VDC	24-380VAC	25

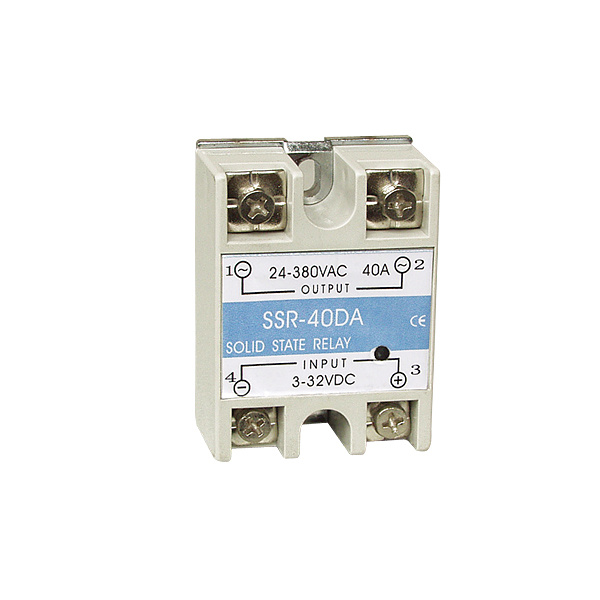

SSR-40DA	3-32VDC	24-380VAC	40
SSR-25AA(VA)	80-250VAC	24-380VAC	25
SSR-40AA(VA)	80-250VAC	24-380VAC	40
ZG3NC-210B	3-32VDC	30-240VAC	10
ZG3NC-310B	3-32VDC	90-480VAC	10
ZG3NC-220B	3-32VDC	30-240VAC	20
ZG3NC-320B	3-32VDC	90-480VAC	20
ZG3NC-225B	3-32VDC	30-240VAC	25
ZG3NC-325-B	3-32VDC	90-480VAC	25

Type	ZG3INA	ZG3INB	ZG13
Dimensions(mm)	104 × 73.5 × 24	104 × 73.5 × 24	104 × 73.5 × 24
Function	Many kinds of input standards SSR, With operation display
Output	Insulation	Photoelectric coupler
Load Voltage	0~220VAC/0~380VAC		0~380VAC
Current	10~40A	10~80A
Leakage Current	100VAC 5mA 200VAC 10mA
VoRmVceo	1000
di/dt(A/us)	200
dv/dt(v/us)	400
I2t(A2S)	25~3000
Tj(^oC)Max.TJ(C)	100
Input	Input Voltage	0-10VDC / 4-200mmA / 470K-560K
Input Current	40mA
Off Voltage	1VDC
On Voltage	3VDC
Off Time	0.5ms DC / 10msAC
On Time	0.5ms DC / 10msAC
Dielectric Strength	50Hz, 60S 2500VAC
Ambient Temperature	-30^oC~80^oC(Under non-ice / dewfall condition)
Efficiency of Safety Working Current	Dissipative load is 60% / Inductive load is 40%

Type	Input Voltage	Output Voltage	Output Current (A)
ZG3NC-240B	3-32VDC	30-240VAC	40
ZG3NC-340B	3-32VDC	90-480VAC	40
ZG3NC-250B	3-32VDC	30-240VAC	50
ZG3NC-270B	3-32VDC	30-240VAC	70
ZG3NC-370B	3-32VDC	90-480VAC	70
ZG3NC-215A	80-250VAC	30-240VAC	15
ZG3NC-220A	80-250VAC	30-240VAC	20
ZG3NC-240A	80-250VAC	30-240VAC	40
ZG3NC-250A	80-250VAC	30-240VAC	50
ZG33-310B	3-32VDC	30-240VAC	10
ZG33-340B	3-32VDC	90-480VAC	40
ZG1NC-210C	2W/470K-560K	30-240VAC	10
ZG1NC-215C	2W/470K-560K	30-240VAC	15
ZG1NC-220C	2W/470K-560K	30-240VAC	20
ZG1NC-225C	2W/470K-560K	30-240VAC	25
ZG1NC-240C	2W/470K-560K	30-240VAC	40

Elecal Industrial Automation is Specializing in the manufacture and export of low-voltage and hight-voltage electrical products in China. Such as MCB, MCCB, ELCB, RCD, Contactor, Fuse, Relay, Switch, Distribution Box etc.

All the manufacturing process of the products is in strictly conformity to international IEC standard and we have established and perfected quality control procedures in accordance with ISO9001 international quality management system.
