Product Specifications

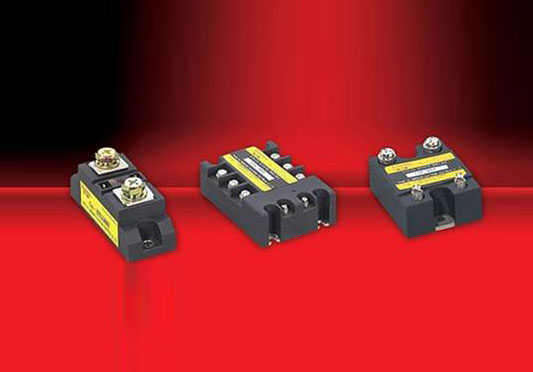

Product Description
A relay is an electrically operated switch. Many relays use an electromagnet to operate a switching mechanism mechanically, but other operating principles are also used.
Relays are used where it is necessary to control a circuit by a low-power signal (with complete electrical isolation between control and controlled circuits), or where several circuits must be controlled by one signal.
1.Features of products:
A. Comply with IEC (international electrotechnical commission)standard.
B. Adopts international fashion lines and technology, input sub-linear control, constant current control, LED indication working state.
C. Triac output or single-phase anti-parallel SCR output, zero-voltage turnning on, zero current breaking.
D. Light segregation between input and output, built-in RC sorption circuits
E. Beautiful appearance, small volume, corrosion resistant, shock resistant, explosion-proof, no spark, no noise, high speed, etc.
F. Semi-permanent mechanical life.
G. Each series are equipped with universal or enhanced kinds
2. Typical application
A. Ac-dc switch and temperature control
B. Industrial automation control
C. CNC machinery, remote control system
3. Technical parameters
Product model |
GJ (X.SSR-DA)10-100A |
GJ (X.SSR-DA)120-350A |
GJ(X.SSR-DA)15-60A |
Product name |
Single-phase industrial grade solid state relay |
Three-phase solid state relay |
Control voltage |
3-16VDC 3-32VDC |
3-32VDC |
3-16VDC 3-32VDC |
Control current |
6-35MA |
6-35MA |
5-40MA |
Connect voltage |
3VDC |
3VDC |
3VDC |
Shutoff voltage |
1VDC |
1VDC |
1VDC |
Load voltage |
40-480VAC 40-1200VAC |
40-480VAC 40-1200VAC |
40-480VAC |
Load current |
10.20.30.40.60.80.100A |
120.150.200.250.300.350A |
25.40.60.80.100.120A |
State voltage drop |
<1.6VAC |
<1.6VAC |
<1.6VAC |
Hige time |
≤10ms |
≤10ms |
≤10ms |
Broken state leakage current |
≤8mA |
≤10mA |
≤8mA |
Environment temperature |
-30~80ºC |
-30~80ºC |
-30~80ºC |
Work instructions |
LED |
LED |
LED |
Shape dimension |
Fig 06 |
Fig 07.08 |
Fig 09 |
Product model |
GJ (X.SSR-DA)15-60A |
Product name |
Single-phase solid state relay |
Control mode |
2W470-560K
Potentiometer adjustment |
Load voltage |
220VAC 380VAC |
Pressure regulating scope |
10-480VAC |
Isolation voltage |
No isolation |
Output voltage |
15.20.30.40.60A |
State voltage drop |
≤3VAC |
Environment temperature |
-30~80ºC |
Work instructions |
NoºC |
Shape dimension |
Fig06
|
