Product Specifications
| Prod Model: |
SL-5868P, SL-5818 |
Product Description
This instrument is compatible with several standards of GB/T 3785, IEC 651 Type 2, ANSIS 1.4 Type 2. It is widely used to test the sound level of environment, mechanic, vehicle, ship and other noise. Fit for industry environment protecting, working, sanitation, teaching search and other departments.

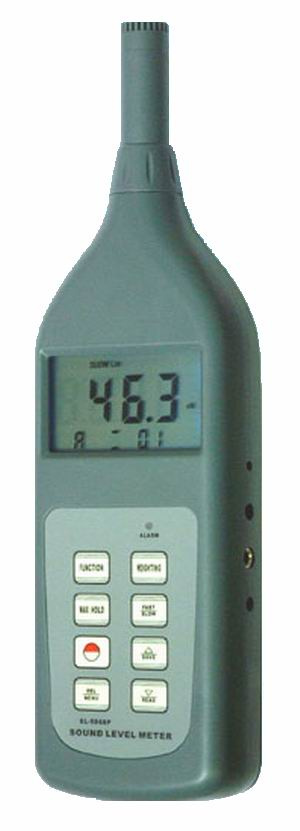

Sound Level Meter
Model: SL-5868P
Display: LCD display
Standard: IEC651 Type2, ANSIS1.4Type2
Parameters measured: SL, Leq, LN
Measuring range:
A. 30-130dB
C. 35-130dB
Line. 35-130dB
Detection characteristics: Fast/Slow
Resolution: 0.1dB
Accuracy: 1dB
Built-in calibration signal: 94dB
Alarm setting: 30-130
Max. Hold function
DC output: 0~2V D. C.
Alarm output: Electronic switch
Note: D. C. Output and Alarm output can only select either one.
The default is D. C. Output (A. C. Is optional)
PC interface: RS232C (Cable & software are optional)
Can memorize 50 group data
Display: 10mm (0.4") LCD (Liquid Crystal Display)
Function: SL, Leq, LN.
Frequency range: 31.5Hz~8KHz
Measurement range:
LP: 30~130dB (A)
35~130dB (C)
35~130 dB (F)
Leq: 30-130dB
LN.: 0-100%
Detection characteristics: Fast/Slow
Resolution: 0.1dB
Accuracy: 1dB
Built-in calibration signal: 94dB
Alarm setting: 30-130
Max. Hold function
DC output: 0~2V D. C.
Alarm output: Electronic switch
Note: D. C. Output and Alarm output can only select either one.
The default is D. C. Output (A. C. Is optional)
Memory: Maximum 50 group data
Indicator: Low battery indicator
Auto power off
Power supply: 4x1.5v AAA (UM-4 battery
Size: 236 x 63 x26 mm
Weight: 170g (including batteries)
Standed delivery:
1. Main Unit 1PC
2. Carrying Case 1PC
3. Operation Manual 1PC
Optional Accessories:
1. ND9 sound level meter calibrator
2. RS-232 and software
3. External relay
Model: SL5818
Standard: IEC651 Type2, ANSIS1.4Type2
Function: SL, Leq
Measuring: A. 30-130dB C. 35-130dB Line. 35-130dB
Filter
Detection characteristics: Fast/slow
DC output: 10mv=1dB
Resolution: 0.1dB
Accuracy: 1dB
Display: LCD display
Power supply: 4x1.5V AA (UM-3) battery
Battery indicator: Low battery indicator
Dimensions: 210x69x32mm
Weight (not including probe): 175g
Since 1990, Colead Industrial Co., Ltd., is one of leading professional manufacturer of various instruments and meters in China, exporting to worldwide market with higher quality and lower price.
We are ISO9001: 2000 compliant, most of our products get CE & RoHS approval, some of them get GS, SGS, C-TICK, FCC, FDA, PAHs etc. Also our company can provide OEM, ODM and other business way.
If you are interested in our products, or have a customized requirement to fill, please contact us for further information. It is saying of us "all we do is only for you".
Our major products include Coating Thickness Meters, Ultrasonic Thickness Gauges, Vibration Meters, Hardness Testers, Surface Roughness Testers, Moisture Meters, Tachometers, Stroboscopes, Anemometers, Sound Level Meters, Dew Point Meters, Temperature Meters, Humidity Meters, Lux Meters, Water Quality Meters, Gas Detectors, Range Finders, Infrared Thermometers, Diamond Testers, Scales, Stud/Metal/AC Wire Detectors, Clamp Meters, Multimeters and Electrical Testers etc.
