Product Specifications
| Prod Model: |
SP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

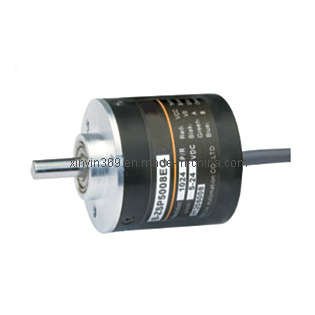

Rotary Encoder, Encoder
Applications features
Outer diameter φ 50× 50, after axle diameter φ 8× 15 electric cable.
Is suitable in the precise working conditions, the automatic chemical industry controls the domain.
Its characteristic is uses the ASIC photoelectric apparatus, the reliability is high, the life is long, antijamming ability, wide temperature use scope and so on.
Uzola is a leading and professional industrial automation instruments factory in China, we focus on the R&D and manufacture of temperature controller, Process Controller, Solid State Relay, Rotary Encoder. Industiral automation control are all about precision, robust, accuracy, stability and safety, This has been the guideline and backbone of our policy. We've been dedicated ourselves in providing cost-effective products to our customers from around the world.
|
Resolution |
1-5000P/R |
|
Power supply voltage |
DC5V or DC5V~24V |
|
Output voltage VH |
≥ 3.5V ≥ Vcc-2.5V |
|
Output voltage VL |
≤ 0.5V ≤ 1.0V |
|
Current consumption |
≤ 100mA |
|
Output |
A. B. Z |
|
Response frequency |
≥ 100kHz Max |
|
Rise/fall time |
24V≤ 1μ s 5V Driver ≤ 0.1μ s |
|
Starting torque |
1.5× 10 -2 N· m(+25º C) |
Uzola Electric is a group companies specialized in manufacturing industrial electrical appliance, is a national large-scale enterprise integrated with R&D, manufacturing, trade and service, etc.
Members of Uzola keep strict policy of quality. Supplied material to the market meet requirements and standards for safety. We always search for the optimal ration of price and quality, which the client receives.
Our decisions impact environment and its future, that is why we think globally and responsibly. We preserve environment and nature resources making a priority for ecology and economy. Follow and disseminate innovations that enable to save costs and have no negative impact to nature. New technologies having no harm to nature is a value, that we rule and invest in.
