Space Frame Cost Effective Prefab Steel Structure/Steel Frame Structure

Product Specifications

Prod Model:	56*120*604
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Light Steel Structure and Sandwich Panel
Connection:	Bolts
Size:	as Your Request
Earthquake Resistance:	Grade 10
Sound Insulation:	30-40db
Wall&Roof:	Single/Sandwich Panel
Certificate:	ISO9001,ISO14001,SGS,BV
Guarantee Year:	40 Year
Type:	Light Section Steel
Standard:	BS
Trademark:	Carbon Structural Steel
Forming:	Cold Drawn Steel
Connection Form:	Welded Connection
Member:	Steel Column
Type Of Steel For Building Structure:	High-Strength Steel
Carbon Structural Steel:	Q235
Residential Wall Structure:	Connector
Application:	Steel Structure Bridge

Product Description

1.Steel frame structure brief Introduction

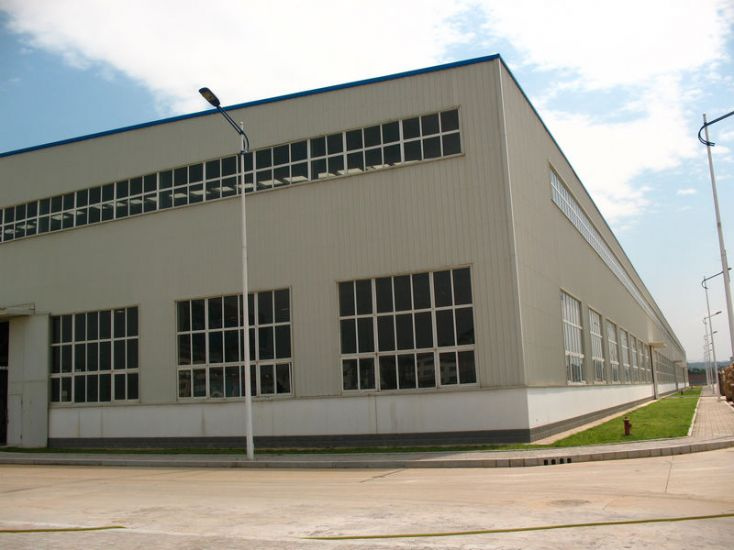

Steel frame structure is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section and U section steel components, roof and walls using a variety of panels and other components such as windows, doors, cranes, etc.

Steel frame structure system is the structural system of weight-bearing framework connected by columns, beline, arc or mansard beam. In industrial and civil buildings, single-span, double span or multi-span, double slope or single slope style single level portal framework. Windows and ventilator or day-lighting panel can be installed according to actual situation.

2. Steel frame structure workshop material
1)The main frame (columns and beams)is made of welded H-style steel.
2)The columns are connected to the foundation by pre-embeddding anchor bolt.
3)The beams and columns, beams and beams are connected with high intensity bolts.
4)The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by self-tapping nails.
5)Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel and others.

3. Steel frame structure features
1. Industralized full assemble: Light portal steel structure from room surface, wall surface, wall frame, heat preservation layer and weight bearing structure. Obtaining these high serial and assembling characteristics, they can be massively manufactured.
2. Elegant apperance and hollow inside: More suitable for use compared with ordinary structure. The workshop and the storage can be dived at will.
3. Construction member and section form are reasonable with light deadweight: The weight of portal
Steel structure is the one eighth to one tenth of the reinforced concrete. Each member can take different forms and and setions
According to their reinforced tension so as to achieve the most economical and reasonable goal.
4. Easy to assemble: All members are manfactured in fatory and assembled on site. Installation are usually realized by high-strength bolts, ordinary bolts, pulling rivets with less wielding and shorter
Period of construction.
5. Comparably lower costs: Portal steel structure is light in weight, less foundation costs, shorter period of construction. On the whole, the cost is cheaper than reinforced concrete.

4.Steel frame structure main description
If you really interested, please give me the following information:
1. Dimension: Length, width, height, eave height, roof pitch, etc.
2. Doors and windows: Dimension, quantity, where to put them.
3. Local climate: Wind speed, snow load, etc.
4. Insulation material: EPS, PU, rockwool, glasswool
5. Crane beam: Do you need crane beam inside the steel structure?
6. Is there any materials that are not allowed to import into the country where the structure is planning to use?
7. If you have other requirements, please also inform us.
8. It's better if you have your own drawings or pictures. Please send them to us.

Degree of Standardization	custom-made product, design and manufacture according to clients requirement
Length	No limited, increase expansion joint when length more than 200m.
Width	single span should be less than 12m, an arbitrary  width could make by union spans
Height	single floor ≤  5m, two or three floors, average height  ≤  4m
Ground Channel	Galvanized steel panle compression, thickness is 0.8mm
Post	Inside post is steel square pipe, material is Q235, components surface make antirust process, and  decorate with color steel compression parts.
Roof Beam	roof truss consist of thin sharpe steel by welding, component surface make antirust process
Purlin	purlin is Ctype steel, material is Q235, components surface make antirust process.
Floor	made of floor master beam, secondary beam and floor surface plate(plywood)
Door	color steel sandwich panel door, size: 750mm*2000mm;
Window	PVC sliding window, with steel screen.
Ceiling	mineral wool acoustic panel, aluminium buckle panel, PVC ceiling
Electrical accessories	Supply plan, design and construction according to relevant national norms(220V, 50Hz, with lamp,  switches and multi-function sockets
