Speaker System

Name: Speaker System
Brand: China-Manufacturer-Directory.com
SKU: 684715682
Availability: InStock
Rating: 4.3 (86 reviews)

Supplier:	Shenzhen Mansion Electronic Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,FCA

Product Specifications

Prod Model:	T-1588
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
2 Passive 8'' Speaker+15'' Subwoofer:	Subwoofer Frequency Response 45 ~ 250Hz, +/- 3dB
Axial Sensitivity 1 W/ 1m 101dB:	Maximum Spl @ 1m 127dB @ 10% Thd
Subwoofer Power AMP 1 X 300 RMS For Bass:	Satellite Power AMP 150W X 2 RMS for Satellites
Active Protection Circuitry Opto-Limiter:	Input Sensitivity 0.775V
Satellite Frequency Response 120 Hz~ 8kh:	Axial Sensitivity 1 W/ 1m 101dB
Maximum Spl @ 1m 121dB @ 10% Thd:	Nominal Impedance 4ohm
Low/MID Drive 1 X 8":	Hf Drive 3/4"
Directivity 90" X 40":	Crossover Frequency 2.5 kHz, 12dB Per Octave
Speaker Material:	Wood
Usage:	Stage/DJ
Structure:	Bass Reflex Enclosure
Amplification Type:	8'' Passive +Subwoofer Amplifier
SNR:	Frequency Response: 45 ~ 250Hz, +/- 3dB

Product Description

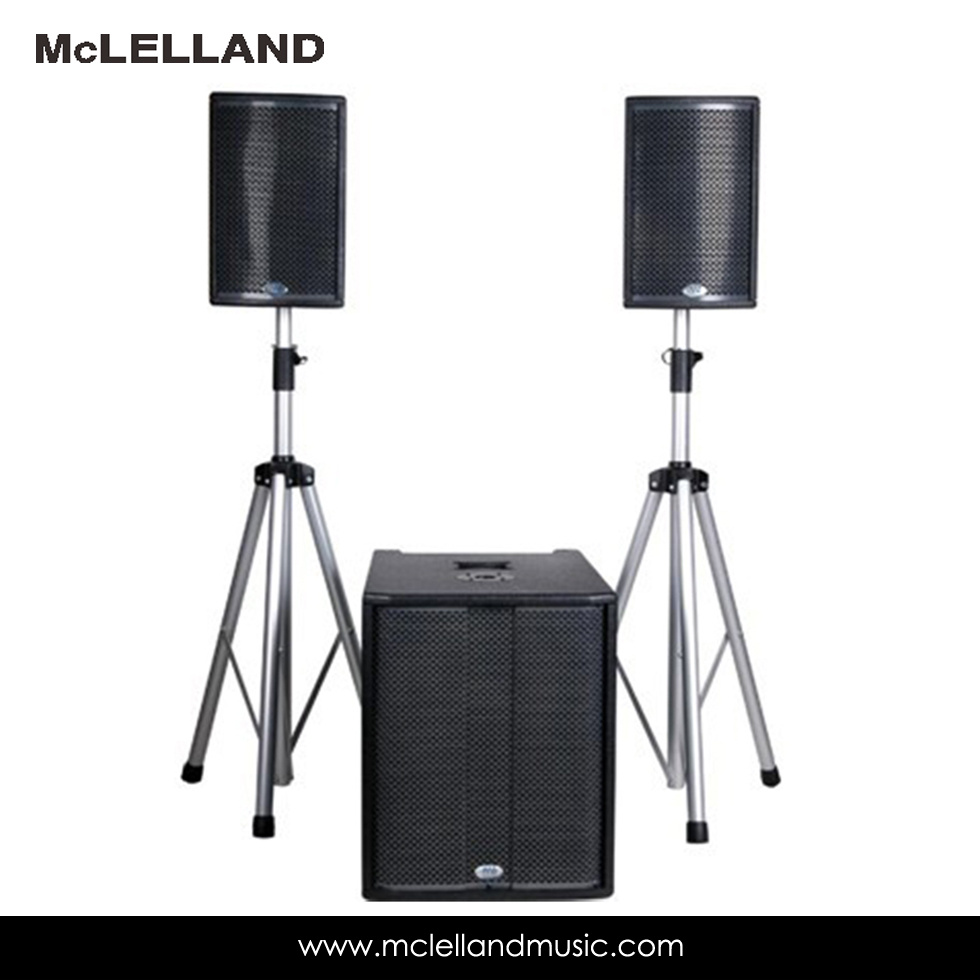

Speaker System(T-1588)

Features:

The T-1588 speaker system is a complete sound reinforcement solution consisting of two

8" two-way speakers and an active 15" subwoofer, to deliver the best ultra mate sound

quality. This system was designed for easy operation, like Mobile DJ, Live Band, Church. All

you have to do is set up the sound system components, connect the XLR right and left

signal cables, speaker cables and power cords and you're ready to load your sound in any

time & any place.

Specification:

Subwoofer

Frequency Response: 45 ~ 250Hz, +/- 3dB

Axial Sensitivity: 1 W/ 1M 101dB

Maximum SPL @ 1m: 127dB @ 10% THD

Bass Woofer

Subwoofer Power Amp: 1 x 300 RMS for bass

Satellite Power Amp: 150W x 2 RMS for satellites

Active Protection Circuitry: Opto-limiter, subsonic filter

Input Sensitivity: 0.775V

Connection: 2 x XLR input

2 x XLR through

2 x Speakon @ Satellite out

EQ: Low 75Hz +/- 10dB

Mid 1.3 KHz +/- 10dB

High 10 KHz +/- 10dB

Low Pass Turning Frequency: 50 ~ 500Hz -3dB

Satellite

Frequency Response: 120 Hz~ 8KHz, +/- 3dB

Axial Sensitivity: 1 W/ 1M 101dB

Maximum SPL @ 1m: 121dB @ 10% THD

Nominal Impedance: 4Ω

Low/Mid Drive: 1 x 8"

HF Drive: 3/4"

Directivity: 90"x 40"

Crossover Frequency: 2.5 KHz, 12dB per octave

HF Protection (Passive): Dynamic protection circuitry

Power Handing Capacity: 150W RMS

Connector: 1 x Speakon

Subwoofer
Frequency Response	45 ~ 250Hz, +/- 3dB
Axial Sensitivity	1 W/ 1M 101dB
Maximum SPL @ 1m	127dB @ 10% THD
Bass Woofer
Subwoofer Power Amp	1 x 300 RMS for bass
Satellite Power Amp	150W x 2 RMS for satellites
Active Protection Circuitry	Opto-limiter, subsonic filter
Input Sensitivity	0.775V
Connection	2 x XLR input 2 x XLR through 2 x Speakon @ Satellite out
EQ	Low 75Hz +/- 10dB Mid 1.3 KHz +/- 10dB High 10 KHz +/- 10dB
LowPassTurning Frequency	50 ~ 500Hz -3dB
Satellite
Frequency Response	120 Hz~ 8KHz, +/- 3dB
Axial Sensitivity	1 W/ 1M 101dB
Maximum SPL @ 1m	121dB @ 10% THD
Nominal Impedance	4Ω
Low/Mid Drive	1 x 8"
HF Drive	3/4"
Directivity	90"x 40"
Crossover Frequency	2.5 KHz, 12dB per octave
HF Protection (Passive)	Dynamic protection circuitry
Power Handing Capacity	150W RMS
Connector	1 x Speakon

Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.

Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.

We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.

At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.

Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
