| Supplier: | Huizhou Dayawan Fox Etech Limited |
|---|---|
| Price: | US $ 102/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,EXW,CIF |
|
|

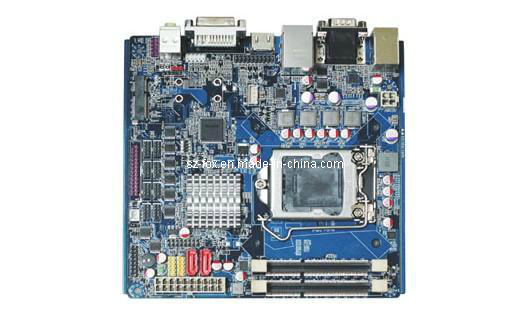

| Prod Model: | ITX-MH61 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| COM: | 10*COM |
| Integrated Graphics: | Integrated Graphics |
| Main Chipset: | Intel |
| Maximum Memory Capacity: | 16G |
| Structure: | Mini-ITX |
| Memory: | DDR3 |
| SATA Interface: | SATA2.0 |
| CPU Socket: | LGA 1155 |
| Printed Circuit Board: | Six Layer |
| Main Board Structure: | Integrated |
| Audio Effects: | Not HiFi |
| Main Features | |
| Form Factor | Mini-ITX 170mm×170mm |
| Chipset Manufacturer | Intel |
| CPU | Support the newest LGA1155 interface all series processor |
| Chipset | Intel® H61 Express chipset |
| BIOS | AMI BIOS |
| RAM | DDR3 1066/1333/800MHz memory, SO-DIMM socket,maximum up to 16GB |
| Integrated Graphics | Intel X4500 |
| Sound | Onboard Realtek ALC662 high-fidelity 6 channel sound card. |
| Network | Onboard RTL8111EL Gigabit Ethernet LAN |
| Storage | 2*SATA;1*mSATA |
| USB | 8*USB 2.0/1.1(4 external;4 expansion header) |
| Expansion Sockets | 1*Mini SATA socket;1*Mini-PCIE socket for WIFI |
| rear panel I/O | 1*PS2 port |
| 1*HDMI | |
| 2*COM port | |
| 1*DVI port | |
| 1*VGA port | |
| 4*USB 2.0/1.1 port | |
| 1*1000M RJ45 port | |
| 2*Audio I/O interfaces( Line in,Line out,Mic) | |
| Internal I/O | 4*USB 2.0/1.1 expansion header |
| 2*CPU/SYS Chassis fan connectors | |
| 1*Audio I/O expansion header | |
| 8*COM expansion headers (support RS232/422/485) | |
| 1*GPIO expansion header(8 group) | |
| 1*LPT expansion header | |
| 1*VGA expamsion header | |
| 1*HDMI expansion header | |
| 1*Audio power amplifier | |
| 2*Onboard Mini PCIE expansion header | |
| 1*SPDIF expansion header | |
| Power Interface | 4PIN,24PIN ATX power supply |
| Working Temperature | -20°C~70°C (-4°F~158°F) |
| Storage Temperature | -20°C~80°C (-4°F~176° ) |
| Operating Humidity | 10%~90% (non-condensing) |
| Advantages | |
| 1.Embedded high performance industrial motherboard. 2.DDR3 1 066/1333/800MHz memory,SO-DIMM socket maximum up to 16GB. 3.Support LGA 1155 interface Intel Sandy/Ivy Bridge series processor 4.Onboard 8*USB2.0 high-speed interface, 5.Onboard VGA. DVI.HDMI display interface, support double screen double power consumption 6.Reliable, High stability, Low noise, low power consumption.Perfectly 7.Certificate:CE,FCC,RoHS | |
