Product Specifications
Product Description
Overview:

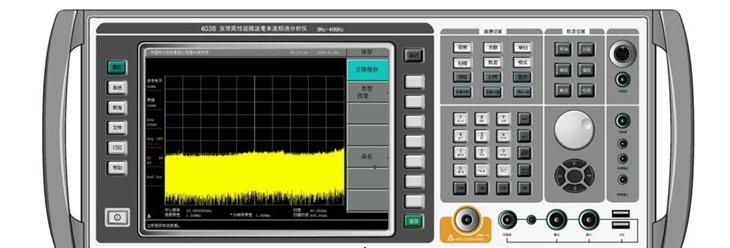

ZY4036 series spectrum analyzer is the new generation instruments of Zhongyou. It has the advantages of broad bandwidth, high resolution, high dynamic range, high precision, low phase noise and fast measurement speed. It is manufactured with a lot of new technologies, such as all digital IF, auto spectrum detection and real-time calibration and broadband microwave and millimeter wave integration. It has excellent performance and is adaptive to all environments. The modular and standard design on the one hand improves the producibility, debugging, maintenance and reliability dramatically, on the other hand strengthens the connectivity among the modules. The combination of software and hardware modules forms the series products and makes the upgrade and extension more convenient.
ZY4036 can measure the frequency, power .bandwidth and modulation of many type of signals, such as modulated signal, harmonic distortion, stimulus and response, pulsed RF signal and phase noise. It has a wide range of applications as follows: communication, radar, navigation, spectrum management, signal supervision, information security, the research ,production test and metrology of electronic devices and components.
ZY4036 series spectrum analyzer is a product of independent design and have the full IPR. Many key technologies used in it are innovative in china. ZY4036 series spectrum analyzer is the new generation high performance microwave and millimeter wave spectrum analyzer of the ZhongYou with the highest performance level in china and the comprehensive performance is among the current international advanced level.
|
Model |
ZY4036 |
ZY4036A/ZY4036B/ ZY4036D/ZY4036E/AV4036F/AV4036G |
|
Frequency range |
3Hz∼40GHz |
3Hz∼4GHz/8GHz/18GHz/26.5GHz/43GHz/50GHz |
|
10MHz Precise frequency reference |
Frequency accuracy: ±(last calibration date ×aging rate+temperature stability+calibration accuracy) Aging rate: ± 1 ´ 10 -9 /day , ± 1 ´ 10 -7 /year Temperature stability: ± 1 ´ 10 -8 (20∼ 30) ± 5 ´ 10 -8 (0 ∼ 55) Frequency accuracy: ± 7 ´ 10 -8 |
|
Frequency readout accuracy |
±(readout ×frequency reference error+0.5%span+5%resolution bandwidth+2Hz+0.5horizontal resolution) Horizontal resolution=span/(sweep points-1),default point is 751 under adaptive state |
|
Frequency counting accuracy |
Marker accuracy ± (frequency read out +frequency reference error+0.100) Delta marker accuracy: ± (delta marker readout× frequency reference error+0.100) Counter resolution : 0.001Hz |
|
Span Continuous and step model |
Range: 0Hz(zero span) 100Hz ∼ 40GHz Resolution: 0.001Hz Accuracy: ±(0.2%×span+span/(sweep point number-1)) |
|
Sweep time |
Range: zero span 1us ∼ 6000s Span ≥100Hz 5ms ∼ 2000s Accuracy: span ≥ 100Hz (continuous)±0.01%(nomination) Span ≥ 100Hz(step) ±40 % (nomination) Span = 0 Hz ±0.01% (nomination) |
|
trigger |
Trigger: free video, power supply, external(front, rear panel) Trigger delay: 1us ∼ 500 ms Resolution: 0.1us |
|
Resolution bandwidth |
Range: 1Hz ∼ 3MHz (10%step)4MHz,5MHz,6MHz,8MHz Accuracy: 1Hz∼3MHz ±6% 4MHz∼8MHz(< 4GHz) ±20% Selectivity: (–60dB/–3dB): ≥5:1 |
|
Video bandwidth |
Range : 1Hz ∼ 3MHz (10%step),4MHz,5MHz,6MHz,8MHz Accuracy: 1Hz ∼3MHz ±6% (nomination) |
|
Sideband noise (20degree ∼ 30degree,carrier1GHz) |
-91dBc/Hz@100Hz,-103dBc/Hz@1kHz,-114dBc/Hz@10kHz,-117dBc/Hz@100kHz, -145dBc/Hz@1MHz,-154dBc/Hz@6MHz,-156dBc/Hz@10MHz |
|
Residual FM |
< 1Hz×N(N is harmonic number) |
|
Amplitude range |
Measurement range: DANL∼max safe input signal level Attenuation range : 0 ∼ 70dB ,2dB step |
|
Max input level |
CW(input attenuation ³ 10dB): +30dBm(nomination) Peak pulse power(pulse width<10us,duty cycle<1%,input attenuation>30dB):+50dBm(100W) (nomination) Current voltage: input< ±0.2Vdc |
|
1dB gain Compression point (dual tone,mixer input level) |
20MHz∼200MHz 0dBm 200MHz∼4GHz +3dBm 4GHz∼8GHz +3dBm 8GHz∼26.5GHz -2dBm 26.5GHz∼50GHz 0dBm |
|
DANL (input loaded,sample or average detection, video average,log,20degree∼30degree) |
10MHz∼50MHz -142dBm 50MHz∼1GHz -152dBm 1GHz∼2GHz -151dBm 2GHz∼3GHz -150dBm 3GHz∼4GHz -147dBm 4GHz∼8GHz -152dBm 8GHz∼16GHz -145dBm 16GHz∼20GHz -140dBm 20GHz∼26.5GHz -138dBm 26.5GHz∼40GHz -129dBm 40GHz∼50GHz -127dBm |
|
Display |
Log scale: 0.1dB ∼1dB/div 0.1dBstep,1∼20/div 1dB step(10divs) Linear scale: 10 divs Scale units: dBm, dBmV, dBμV, V, W |
|
Frequency response (10dBattenuation,20degree∼30degree, Auto preselector) |
3Hz∼4GHz ± 1.0 dB 4GHZ∼8GHz ± 1.8dB 8GHz∼22GHz ± 2.8dB 22GHz∼26.5GHz ± 3.0dB 26.5GHz∼50GHz ± 3.5dB |
|
Absolute magnitude accuracy |
(10dB attenuation,10Hz £ RBW £ 1MHz,input signal -10∼-50dBm, auto coupling,any reference level,any scale) 300MHz ±0.24dB All frequencies ±(0.24Db+frequency response) |
|
Input VSWR (input attenuation≥8dB) |
50MHz∼3GHz < 1.5:1 3GHz∼18GHz < 1.7:1 18GHz∼26.5GHz < 1.9:1 26.5GHz∼40GHz < 1.9:1 40GHz∼50GHz < 2.0:1 |
|
Resolution bandwidth Conversion uncertainty |
1Hz∼1MHz £ ± 0.2dB 1.1MHz∼3MHz £ ± 0.3dB 4 5 6 8MHz £ 1.0dB |
|
Reference level range |
Log scale –170 dBm ∼ +30 dBm , 0.01 dB step Linear scale 707 pV ∼ 7.07 V , 0.1% step |
|
Fidelity of display scale |
Input mixer level £ -20dBm ±0.07dB -20dBm < input mixer level < -10dBm ±0.13dB |
|
Second harmonic distortion |
10MHz∼2.0GHz(mixer level -40dBm) -82dBc 2.0GHz∼4.0GHz(mixer level -10dBm) -94dBc 4.0GHz∼13.25GHz(mixer level -10dBm) -96dBc 13.25GHz∼25GHz(mixer level -10dBm) -100dBc |
|
TOI distortion( mixer level -30dBm,dual tone frequency interval>15kHz,20∼30degree) |
10MHz∼4.0GHz < -88dBc 4.0GHz∼8.0GHz < -92dBc 8.0GHz∼50GHz < -84dBc |
|
Trace detection models |
Standard ,sample, positive peak, negative peak, average, effective value |
|
Temperature range |
Operation range 0∼+50 degree Storage range -40∼+70 degree |
|
Memory capacity |
Internal 1GB External USB mobile storage equipment |
|
dimensions |
depth x width x height = 500 x 426 x 177 (mm) |
|
weight |
Net weight about 22kg Gross weight about 26kg |
|
Input connector |
AV4036/AV4036F/G:2.4mm(male),impedance 50ohm AV4036A/B/C/D:N type(female),impedance50ohm |
Order information: Basic unit :AV4036 series spectrum analyzer options:code,name,instruction
|
code |
name |
instruction |
|
1 |
Phase noise measurement |
measuring the phase noise of input signal and gives the curves of phase noise. |
|
2 |
0 band preamplifier |
Range :100kHz∼4GHz,gain ³ 25dB, noise figure < 7dB,improve the DANL of 100kHz∼4GHz,up to 12dB,good at detecting weak signal. |
|
3 |
70MHz/140MHz IF output |
Conducting 70MHz or 140MHz IF to other Equipment for analysis |
|
4 |
Broadband FM demodulation output |
Demodulation of FM signal |
|
5 |
Tone demodulation |
Demodulating AM/FM signals and output through built-in louder speaker. |
|
6 |
Auxiliary video output |
Synchronous video output to other equipments for further analysis |
|
7 |
21.4MHz IF output |
Rear panel output of 21.4MHz IF to other equipments for analysis |
|
8 |
Aluminium alloy case |
Tight and portable aluminium alloy case with handleand rolling wheels,which are convenient for transportation |
