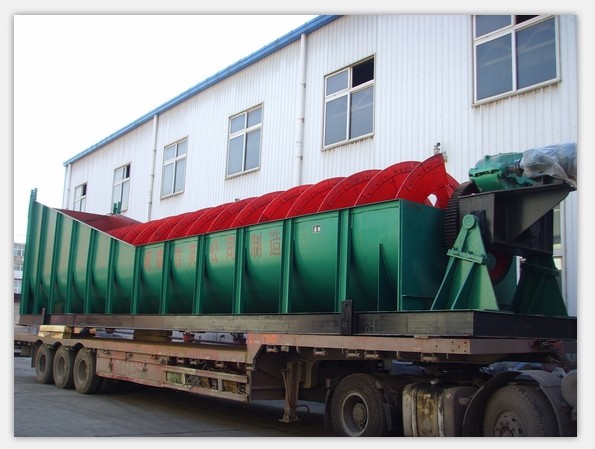

Spiral Classifier
Price: |
Negotiable/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
High Weir Type, Sinking Type |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Spiral Diameter: |
750mm--3000mm |
Mining Object: |
Ore Pulp |
Spiral Rotation Speed: |
Depend on Oneself |
Type: |
Beneficiation Machinery |
Product Description
Spiral Classifier is the main equipment in mineral dressing plants, used to grade solid particle of different density and speed in liquids. With grinders, it can form a closed circuit, which is used to do the pre-grading and check grading, and granule declining and dehydrating in ore washing. It's divided to single spiral and double spirals; According the difference of spiral's depth in overflow surface, it's divided to high weir type and sinking type.
Check the bolt of each component before using, make clear its degree of tightness, lift the screw shaft, run under zero load, shift the lifting handle, drop down slowly, make the deposit in sink active, finally work, and then the bearing shafts in both axle heads shall be filled up with grease oil regularly.
The main specifications of Spiral Classifier:
Kind
Type
Spiral Diameter
(mm)
Water trough
length
(mm)
Spiral rotation
speed(r/min)
Capacity(t/d)
Motor Power(kw)
Sand return
Overflow
Drive
Hoist
High
weir
type
FG7.5
750
5500
6~10
340~570
65
3.0
Manua
FG10
1000
6500
5.0~8.0
675~1080
110
5.5
Manua
FG12
1200
6500
5.0~8.0
1170~1870
155
5.5
1.5
FG15
1500
8400
4.0~6.0
1830~2740
235
7.5
2.2
FG20
2000
8400
4.0~6.0
3240~5400
400
11
2.8
FG24
1400
9210
3.6
4650~7450
580
15
3.0
FG30
3000
12500
3.2
11650
890
22
4.0
2FG12
1200
6500
5.0~8.0
2340~3740
310
5.5× 2
1.5× 2
2FG15
1500
78400
4~6.0
3660~5480
470
7.5× 2
1.5× 2
2FG20
2000
8400
3.0~5.5
7780~11880
800
11× 2
2.8× 2
2FG24
2400
9210
3.6
13600
1160
15× 2
3× 2
2FG30
3000
12500
3.2
14600~23400
1785
45
4× 2
Sinking
type
FC12
1200
8400
5~8
1170~1870
120
7.5
2.2
FC15
1500
10500
4.0~6.0
1830~2740
185
7.5
2.2
FC20
2000
12900
2.0~5.5
3895~5940
320
15
2.8
FC24
2400
14200
2.5~4.0
4650~7450
455
18.5
4
FC30
3000
14300
3.2
11625
705
30
4
2FC15
1500
10500
4.0~6.0
2280~5480
370
7.5× 2
1.5× 2
2FC20
2000
12900
3.0~5.5
6480~11800
640
11× 2
3× 2
2FC24
2400
14200
3.67
9300~14900
910
18.5× 2
4× 2
2FC30
3000
14300
3.2
23300
1400
45
4× 2
