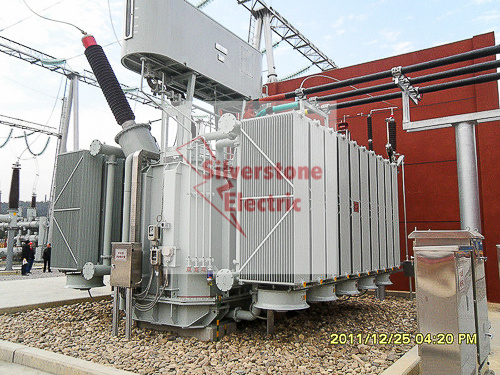

Product Specifications
| Prod Model: |
SFFZ-63MVA/220KV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
20kv |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Application: |
Audio |
Product Description
Feature:
1. Wide-spreading application: Power station
2. Withstanding short-circuit capability:
Operation under the various severe situations
3. Low noise:
Cater to the environmental requirement in the cities
4. Low losses: Economical operation
Ordering notes:
Please indicate the following items:
1. Application: Type of furnace, annual average temperature, Max. Environmental temperature, elevation and so on.
2. Rated capacity
3. Phase number
4. Frequency
5. Rated voltage
6. Tapping range and voltage regulating method
7. Impedance voltage
8. Vector group
9. Losses and performance
10. Noise level
11. Leading requirement
12. Special requirement
Rated Capacity
(kVA)
| Primary Voltage
(kV)
| Secondary Voltage
(V)
| Vector Group | Total Losses
(kW)
| Delivery Weight(kg)
| Total Weight (kg)
| Central of the Truck for Transformer (mm)
| Dimension
(mm)
|
|
|
4000
| 35
| 96-112
| Dy1
YNd11
| 57.7
| 16950
| 22450
| 1435× 1435
| 3980× 2900× 4360
|
|
5000
| 96-112
| 68.2
| 20040
| 26540
| 4290× 3335× 4185
|
|
12500
| 156-140
| 155.0
| 28780
| 31740
| 2000× 1435
| 4620× 2400× 5050
|
|
20000
| 290-160
| 220.2
| 47500
| 55900
| 6000× 3600× 5120 |
