Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
220-240 |
| Matterial: |
Metal |
| Place Of Origin: |
Zhejiang China (Mainland) |
| Type: |
With Switch |
| Grounding: |
Standard Grounding |
| IP Rating: |
IP55 |
| Application: |
Residential/General-Purpose |
| Rated Current: |
13A |
Product Description
Specifications

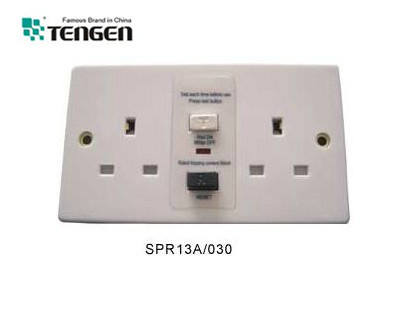

Latching RCD Passive 13A
Rated trip current:30mA
Typical Trip time:40mS
weatherproof RCD socket, BS
Rohs,CE Certification
Application
1.An easily fitted socket incorporating a Residual Current Cevice ,give much greater safety in the use of electrical appliances against a rick of electrocution
2.WSSP plastic type can be fitted to a standard box with minimumdepthof 25mm
3.Designed to be usde in the fixed position only and not mounted ourdoors.
press white/yellow test(T)button the indicator flag turns balck and indicator light turns off means the RCD has tripped successfully
4.Designed and manufactured in accordance with the relevant clause of BS7228 ,and used with BS 1363 plugs fitted with a BS 1362 fuse only.
Technical Data
Rated voltage | 220-240V/50Hz |
| Maximum operating current | 13A |
| Rated trip current | 30mA |
| Typical Trip time | 40ms |
| RCD contact breaker | Double pole |
| Cable capacity | 6mm |
Latching RCD (Sometimes called Passive) - When the power is lost due to an earth fault, the RCD trips out and isolates the circuit it is protecting. Latching RCD's do not trip during power cuts so they are great for fridges and freezers and also for protecting remote/unmanned areas. This would also make them ideal for protecting some heating equipment set to "Frost Protection", fish tanks, battery charging, and the protection of remote or unmanned areas.
Non-Latching RCD (Sometimes called Active) - When the power is lost due to earth fault or power cut, the RCD isolates the circuit that it is protecting and remains off until it is manually reset. A must for protecting circuits supplying rotating machinery or some heating apparatus for example.
Zhejiang Tengen Imp.& Exp.Co., Ltd.Is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly.Mainly including:
1.Electrical apparatus:Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2.Wiring accessories:Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3.Hardware:Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4.Tools:Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5.Fire alarm and warning system:Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring.Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery.If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
