Spray Booth for Industrial Using

Name: Spray Booth for Industrial Using
Brand: China-Manufacturer-Directory.com
SKU: 686511262
Availability: InStock
Rating: 4.9 (113 reviews)

Supplier:	Qingdao Hua Yushun Commercial Co., Ltd.
Price:	US $ 8900-29800/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	longer spray booth
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Internal Size(Lxwxh):	15000X5000X5000mm
External Size(Lxwxh):	15144X6896X5600mm
Foundation And Floor:	2 Rows Air Exhust Plenum Chamber
Wall:	75mm EPS Panel with 0.5mm Steel
Main Door:	1 Unit, 4000X4500mm (Wxh)
Operator's Door:	2units, 650X2000 mm(Wxh)
Lights:	72PCS Ceiling Lights, 48PCS Side Lights
Intake Air System:	4X7.5kw Double-Intake Centrifugal Fans
Exhaust Air System:	2X11kw Double-Intake Centrifugal Fans
Heating Type:	2 Sets Riello Rg5s Diesel Burner
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Captain

Product Description

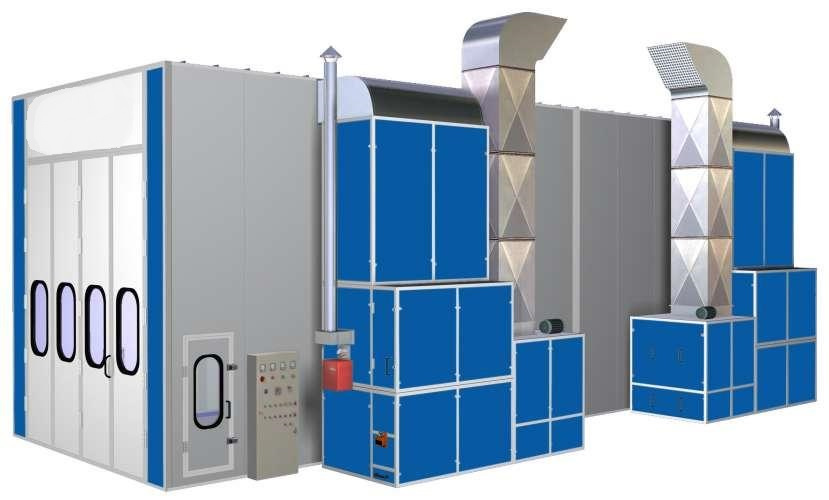

15M Double -Intake Centrifugal Fans Riello RG5S Burner Industrial Spray Booths with baking

Booth Dimension
- Internal Size(L×B×H)	15000×5000×5000mm & 49'2''X16'4''X16'4''
- External Size(L×B×H)	15144×6896×5600mm & 49'7''X22'6''X18'4''

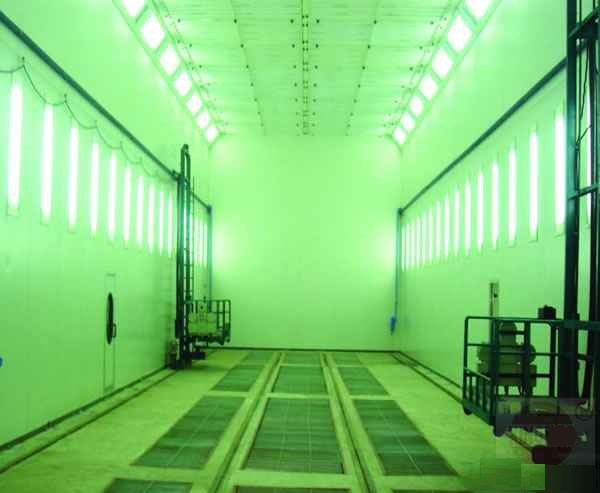

Foundation and Floor
- Grid	2 rows air exhust plenum chamber
- Metal Basement	Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is 12650×760mm(L×W), with galvanized grids made by twisted steel and flat bar above
Wall and Door
- Steel Wall	Profiled bar beams in the roof to strengthen the room body. Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm, tongue and groove interlock structure
- Roof Panel	Single profiling galvanization plate
- 4-Folded Entrance Door With Safety Glass Window	1 Unit, 4000×4500mm (WxH) galvanized steel cover frame, with polystyrene(EPS) inside
- Operator's Door With Safety Glass Window	2Units, 650×2000 mm(W×H)

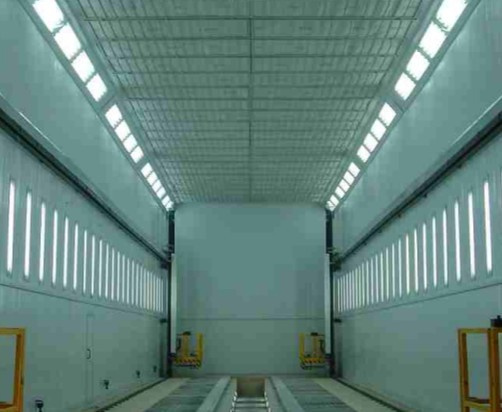

Lighting System
- Ceiling Lights	18Units, each 4×36 W, with electronic ballasts
- Side Lights	12U22Units, each 4×36W, with electronic ballasts
- Brightness	>1000LUX
Filter System
- Filter	Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter
- Filtering area	44M2
Ventilation System
- Intake air system (Fresh Air)	4×7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, total air capacity 42000m3/h
- Exhaust air system(Exhaust Air)	2×11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, total air capacity 36000m3/h
- Damper actuates	Equip pneumatic damper actuates from spraying to baking cycle, manual dampers for exhaust air
Heating System
- Heating Exchange	Stainless Steel
- Heating Exchange Capacity	260000Kcal/h
- Max. Drying Temperature	80 °C
- Heating time	8-10 min (from 20 to 60) by Drying Phase
- Heating Type (optional)	RIELLO RG5S (260000 kcal/h)Diesel )2set
Control Box
- Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start
- Total power	63KW
