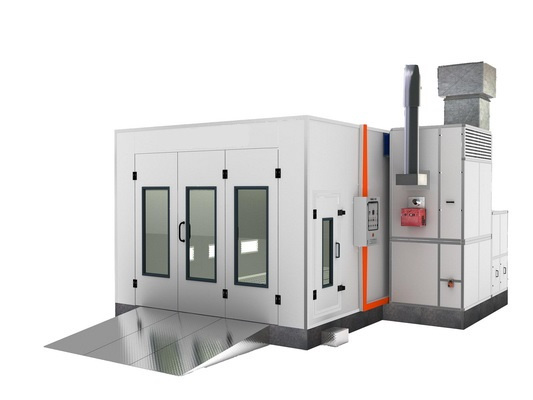

Spray Paint Booth, Coating Line Machine, Drying Chamber

Name: Spray Paint Booth, Coating Line Machine, Drying Chamber
Brand: china-manufacturer-directory.com
SKU: 702515212
Availability: InStock
Rating: 4.6 (94 reviews)

Supplier:	Qingdao Hua Yushun Commercial Co., Ltd.
Price:	US $ 5200-8500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	EX-YCC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Dimension:	700053003500mm(LWH)
Inside Dimension:	690040002800mm(LWH)
Front Door(mm):	2800(W)*2600(H), 3 Folded, with 2 Pressure Lock
Service Door (mm):	650*1800, with Two Sets of Pressure Lock
Wall Panel:	50mm EPS Panel, Tongue and Groove Interlock Constr
Basement:	Circumferential Diamond Plate Design, Middle with
Inlet Fan(Centrifugal):	2X3kw
Outlet Fan(Centrifugal):	1X4kw
Heating System:	Italy Baltut Bt14 Diesel Burner
Lighting System:	8unitsx4 Ceiling, 10unitsx2 Side
Certification:	ISO
Airflow Direction:	Lateral Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Captain

Product Description

Model:	EX-YC 100R
Outside Size(mm):	700053003500
Inside Size(mm):	690040002800
Front Door(mm):	2800(W)*2600(H), 3 pieces folding doors,frame cover, with two sets of pressure locks.
Service Door(mm):	650*1800, with two sets of pressure lock which will automatically open when the pressure inside is over the limit.
Total Power:	12 kw
Cabin System	Wallboard	Thickness: 50 mm, EPS material, tongue and groove interlock construction.
	Basement	300mm depth, patented circumferential diamond plate design, middle with grids, 2 Pcs ramps, each size: 750X2000MM(WXL).
	Inlet Fan	Double-intake centrifugal fan, Capacity: 10500m³/h each.		Outlet Fan	Double-intake centrifugal fan, Capacity: 14500m³/h.
		Power: 3 kw			Power: 4 kw
		Quantity: 2 set			Quantity: 1 set
	Ducting	3 meters exhausted air duct, one flop damper, one weather hood.
Purification System	G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter.
Heating System	Italy Baltut BT14 diesel burner, 140000Kcal/h.
	Heating exchanger, stainless steel, argon arc welding, heating exchange rate 85%.
	Chimney ducting		2 meters stainless ducting and one chimney elbow.
	Max temp: 80 degree centigrade, heating time: 5-8 min(20-60 degree centigrade),fuel consumption: 4-6 kg/ vehicle.
Lighting System	Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux.
Controlling System	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller.
Environmental System	G3 grade glass fiber floor filter.

Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.

· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.

· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.

Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
