Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing Technics: |
loading machine |
| Processing Object: |
loading |
| Type: |
loading |
Product Description

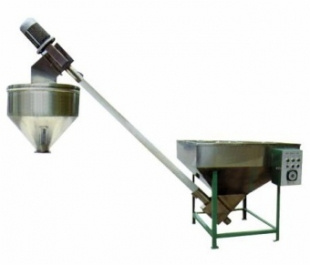

It can be used with all kinds of extruders, it can automatically transport plastic powder into the hopper of molding machine by means of a controller of material lever, it can save labor and realize safety and reliability.
|
Item |
ZJG100 |
ZJG300 |
ZJG700 |
|
Rated conveying capacity(kg/h) |
100 |
300 |
700 |
|
Hopper capacity(kg) |
100 |
120 |
150 |
|
Spring dia(mm) |
30 |
36 |
59 |
|
Max conveying capacity(kg/h) |
200 |
450 |
1000 |
|
Conveying pipe and length of spring(m) |
3 |
3-5 |
3-5 |
|
Storage tank’s capacity(kg) |
120 |
150 |
200 |
|
Motor(kw) |
1.1 |
1.5 |
2.75 |
|
Dimension(mm) |
650*980 850*620*740 |
650*1162 905*655*840 |
820*1550 950*950*960 |
|
Weight(kg) |
120 |
150 |
250 |
Zhangjiagang City JiaYu Machinery Co. Ltd located by the side of Yujia Bridge Jinfeng Town Zhangjiagang City. Our company is one specialized in producing liquid filling machinery manufacturer. We insisted that take the market as the guidance, the quality as the important line. We have established perfect quality system certification and outfitted consummate experiment with test facility. We own a high quality development group and manufacturing stuff with two senior engineers, four engineers and ten technicians.
The products we supply have pure water, mineral water treatment equipment, drinking water bottle & barrel filling machine, carbonated drink filling machine, aseptic cold filling machine and hot filling machine etc. Especially model QGF SERIES barreled filling production. Also we can offer the craft consultation, the workshop plane layout, installation and trial running and the technical training. Our products has been sold everywhere in our country, also Russia and some MID-east countries.
We are willing to establish business relations with our high quality products and perfect service with you.
Welcome to visit our company and give your instruction!
