Product Specifications
| Prod Model: |
TLS-YW200I |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spring Testing Machine: |
Tension & Compression |
| Type: |
Material Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC380V |
Product Description

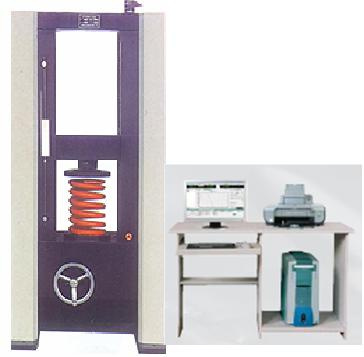

TLS-YW200I Micro-computer controlled Spring Tension & Compression Testing MachineThe tester is mainly used for carrying on intenisty test, mechanics performance and process capacity analysis of various kinds of springs. Main features: The software consists of functions modules such as speed control, parameter input, data processing, result obversation, record retrieval, chart display & print, data storage, etc. Diversified testing methods: Test of residual height and deformation of spring under pre-set testing load; Test of testing load; Under preset height of deformation of spring, etc.
Mutiple points data auto-collection: Avoid the impact of spring stress on the testing data. Thus the total testing process is completely automatic. Overload protection and thus keep the load cell free of damage. Powerful data-processing and statistic functions; Able to plot stiffness curve, calculate spring segment stiffness, plot the normal distribution vurve, calculate the index of process capablity, etc. Stable and reliable operation and accurate measurement powered by the drive system which is constituted by CNC Motor speed-control system or imported advanced AC servo speed-controller as well as its motor.
|
Max.test Load (kN) |
200(4 steps, 10%,20%,50%,100%) |
|
Effective measuring range(kN) |
4-200kN |
|
Min. reading of load(N) |
3 |
|
Min.resolution of displacement(mm) |
0.01 |
|
Effective testing space(mm) |
1000 |
|
Diameter of compression plates(mm) |
Φ300 |
|
Moving speed of upper & lower plates(mm/min) |
0.05-500 |
|
Power |
380V, 50Hz, 3 phases |
TIME Group Inc. was established in 1984 is a leading manufacturer of Material Testing Machines in China. TIME Group Inc. has over 2, 800 dedicated, highly skilled employees in facilities located in China. From engineering, service, training, to front-line support, our commitment to customer satisfaction is the driving force behind everything we do. In 1995, we achieved the ISO 9001 certificate, and we have got many other certificates, such as CE. We are not only famous in China, but also have been exporting into more than 35 oversea countries and area.
JINAN SHIJIN GROUP was established in 1952, is the leading company in testing machine industry, honored as the excellent HI-TECH company in China. In August, 2003, TIME GROUP INC. Merged SHIJIN GROUP, this is a landmark in China testing machine industry.
We invested 180 million RMB to build a new factory of TIME SHIJIN GROUP in the Jinan economy & technology development district in 2010, and it occupies 102 Mu, with building area 46800 sq. M. It consists of 10 production lines: Foundry, Heat Treatment, Painting, Big Parts, Accessories, Bearings, Electric, Oil Sources, Load Frame, Installation & Calibration, Diversified Big Digital Controlled Processing Centers and 131 units of special machine tool equipments. The advantages of our new factory are not only the biggest production capacity in the Testing Machine industry of China, but also with the most modern technology.
