Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
3/4/6/9/12/15/18/25W |
| LED: |
SMD2835 |
| Power Factor: |
>0.9 |
| CRI: |
70-80 |
| Color Temperature: |
Ww3000-3500k,Nw4000-45000k,W6000-6500k |
| Emitting Position: |
Side Emitting |
| Lifespan: |
>50000 Hours |
| Warranty: |
2-3 Years |
| Light Source: |
LED |
| Dimmable: |
Without Dimmable |
| Appearance: |
Round |
| Type: |
Ceiling |
| Certification: |
CCC |
| Voltage: |
85V-265V |
| Housing Material: |
Die Casting Aluminum |
| Emitting Color: |
Warm White,Natural White,White |
| Base Material: |
Aluminum |
| Beam Angle: |
120° |
Product Description

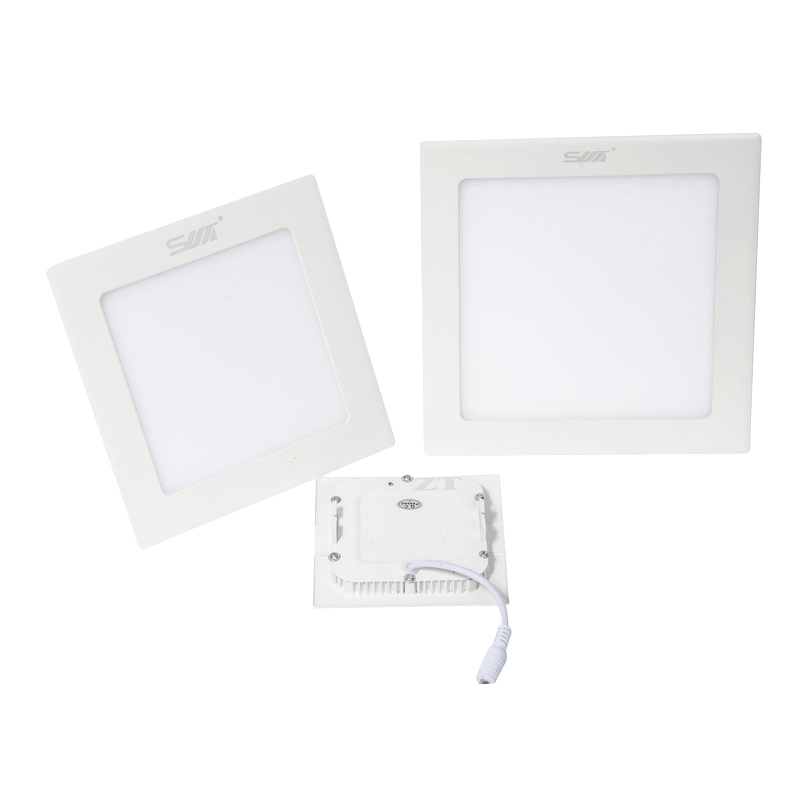

Square LED Panel Light
Feature:
1. Beautiful and clean appearence,easy installation
2. High light and high luminous efficiency SMD2835 LED as light source
3. High quality light guide plate and diffusion plate,ensure the light uniform and soft
4. Superior die casting aluminum makes good heat dissipation,no heavy metals and harmful gas,environmental friendly
5. Adopting outside power supply with wide input voltage,no flicker,no glare,no radiation
6. Low power consumption,can save energy more 80% than traditional fluorescent lights
7. CE, RoHS approved,safe and reliable
8. Long life time, up to 50,000 hours
Applications:
1. Commercial and exhibition locations
2. Hotel,shopping mall
3. Conference/meeting room
4. Factory, office, residence
5. School, hospital and other public places
Installation:
1. Cut a hole on the ceiling where the panel light will be installed
2. Install the LED driver and imbed the panel light in the hole
3. Connect the power supply and start
Packaging and Delivery:
1. Packing Detail:Standard Export Packing or Customized Packing
2. Delivery Time: 5-7 days for sample order, 20 days for container order
Power | 3W | 4w | 6w | 9w | 12w | 15w | 18w | 25w |
| Input voltage | AC85-265V |
| Working frequency | 50-60HZ |
| Size | 90**90*25mm | 110*110*25mm | 120*120*25mm | 150*150*25mm | 170*170*25mm | 190*190*25mm | 225*225*25mm | 300*300*25mm |
| Cutout | 75*75mm | 90*90mm | 105*105mm | 130*130mm | 155*155mm | 175*175mm | 210*210mm | 280*280mm |
| LED type | SMD2835 |
| LED qty. | 15PCS | 20PCS | 30PCS | 45PCS | 60PCS | 75PCS | 90PCS | 120PCS |
| IP grade | IP20 |
| Luminous Flux | 220lm | 300lm | 450lm | 650lm | 890lm | 1150lm | 1350lm | 2000lm |
| Luminous efficiency | 70-80lm/w | 70-80lm/w | 70-80lm/w | 70-80lm/w | 70-80lm/w | 70-80lm/w | 70-80lm/w | 70-80lm/w |
Color temperature | Warm White:3000-3500K
Nature White:4000-4500K
Cool White:6000-6500K |
| CRI | Ra:70-80 |
| Power factor | >0.9 |
| Working temperature | -20 ~ +60centigrade |
| Lifespan | > 50,000hours |
| Warranty | 2-3years |
Zhongshan sanling Lighting Co, Ltd. which located in Zhongshan, Guzhen, where is one of the four world-famous lighting production base.
Our marketing channels spread all over Guangdong Province, even all over the country. All products are sold to Japan, America, Europe, and the Middle East...etc. With near 8 years rapid development, sanling is a famous manufacturer in both Domestic and Overseas.
Our Company specializing in the production of LED Panel Light, LED Downlight, LED Tube and LED Bulb, etc.
Our products are mainly applied to the hotel, square, residential districts, garden, the commercial building. Recreation places, the road lighting and outdoor lighting design.
Since the founding of the 2003 our company upheld the purpose of "Quality first, Customer first".
Our products are all designed and manufactured according to the standard of CE & RoHS and ISO. The products and after-sale service is well received.
The reason we have success today should thanks to all Golden friends and customers who always care and support us.
Warmly welcome the global retailers, distributors to join us for bright future.
