Sqz Type Cement Resistor for UPS, Audio, Transducer
| Price: |
US $ 0.1/Piece |
| Trade Terms: |
others |
| Min Order: |
2000/Piece |
| Pay Type: |
T/T |

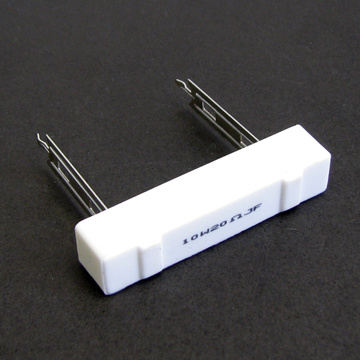

Hot sale SQZ Type 5w 1K Ceramic Cement resistor
Cement Resistors(RX/BRX/HRX)
1, Good heat-durability, low temperature coefficient, low noise, high load power, high insulating capacity
2, Operating ambient temperature: -55C to +275C
3, Resistance tolerance: ± 1%, ± 2%, ± 5%, ± 10%
Forming Type & Power:
SQP: 1W-11W, 15W, 17W, 20W, 25W
SBH: 5W-11W, 15W, 17W, 20W, 25W
SQM: 1W-11W, 15W, 20W
SQS: 5W, 7W, 10W, 15W, 20W, 25W
SQO: 4W, 5W, 6W, 7W, 8W
SQZ: 3W-11W, 15W, 17W, 20W, 25W
SQH: 3W-11W, 15W, 17W, 20W, 25W, 30W, 40W, 50W, 100W
SHG: 10W, 11W, 15W, 20W, 25W, 30W, 40W
Z4-16, Z5-16: 4W, 10W
ZC-11: 5W
M450: 80W
Tolerance: ± 1%, ± 2%, ± 5%, ± 10%
Range: 0R01-100K

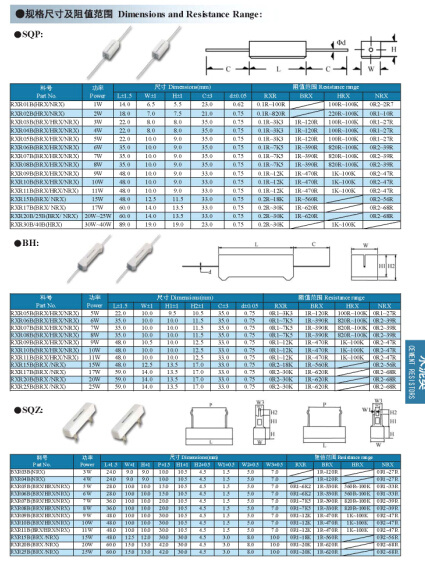

Part No. |
Power | Dimensions(mm) | Resistance range |
| L±1.5 | W±1 | H±1 | P±1.5 | H1±1 | H2±0.5 | W1±0.5 | W2±0.5 | W3±0.5 | RXR | BRX | HRX | NRX |
| BXR03B(NRX) | 3W | 24.0 | 9.0 | 9.0 | 10.0 | 10.5 | 4.5 | 1.5 | 5.0 | 7.0 |
| 1R~120R |
| 0R1~27R |
| BXR04B(NRX) | 4W | 24.0 | 9.0 | 9.0 | 10.0 | 10.5 | 4.5 | 1.5 | 5.0 | 7.0 |
| 1R~120R |
| 0R1~27R |
| RXR05B(BRX/HRX/NRX) | 5W | 28.0 | 10.0 | 10.0 | 15.0 | 10.5 | 4.5 | 1.5 | 5.0 | 7.0 | 0R1~6K2 | 1R~330R | 560R~100K | 0R1~33R |
| RXR06B(BRX/HRX/NRX) | 6W | 28.0 | 10.0 | 10.0 | 15.0 | 10.5 | 4.5 | 1.5 | 5.0 | 7.0 | 0R1~6K2 | 1R~330R | 560R~100K | 0R1~33R |
| RXR07B(BRX/HRX/NRX) | 7W | 36.0 | 10.0 | 10.0 | 20.0 | 10.5 | 4.5 | 1.5 | 5.0 | 7.0 | 0R1~7K5 | 1R~390R | 820R~100K | 0R2~39R |
| RXR08B(BRX/HRX/NRX) | 8W | 36.0 | 10.0 | 10.0 | 20.0 | 10.5 | 4.5 | 1.5 | 5.0 | 7.0 | 0R1~7K5 | 1R~330R | 820R~100K | 0R2~39R |
| RXR09B(BRX/HRX/NRX) | 9W | 48.0 | 10.0 | 10.0 | 30.0 | 10.5 | 4.5 | 1.5 | 5.0 | 7.0 | 0R1~12K | 1R~470R | 1K~100K | 0R2~47R |
| RXR10B(BRX/HRX/NRX) | 10W | 48.0 | 10.0 | 10.0 | 30.0 | 10.5 | 4.5 | 1.5 | 5.0 | 7.0 | 0R1~12K | 1R~470R | 1K~100K | 0R2~47R |
| RXR11B(BRX/HRX/NRX) | 11W | 48.0 | 10.0 | 10.0 | 30.0 | 10.5 | 4.5 | 1.5 | 5.0 | 7.0 | 0R1~12K | 1R~470R | 1K~100K | 0R2~47R |
| RXR15B(BRX /NRX) | 15W | 48.0 | 12.5 | 12.0 | 30.0 | 30.0 | 4.5 | 3.0 | 8.0 | 10.0 | 0R1~18K | 1R~560R |
| 0R2~56R |
| RXR20B(BRX /NRX) | 20W | 60.0 | 15.0 | 13.0 | 42.0 | 30.0 | 4.5 | 3.0 | 8.0 | 10.0 | 0R1~20K | 1R~620R |
| 0R2~68R |
| RXR25B(BRX /NRX) | 25W | 60.0 | 15.0 | 13.0 | 42.0 | 30.0 | 4.5 | 3.0 | 8.0 | 10.0 | 0R1~20K | 1R~620R |
| 0R2~68R |
| Prod Model: |
SQZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sqz Cement Resistor: |
White |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Throught Hole |
| Type: |
Cement Resistors |
| Brand: |
Pak Heng |
