Src (smg) Helical Gearbox

Name: Src (smg) Helical Gearbox
Brand: China-Manufacturer-Directory.com
SKU: 749550785
Availability: InStock
Rating: 4.4 (81 reviews)

Supplier:	Taizhou Sihai Machinery Co., Ltd.
Price:	US $ 90/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SRCF01P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	550W
Input Speed:	1400rpm
Speed Ratio:	28.5
Service Factor:	1.2
Output Speed:	49.1rpm
Output Torque:	103nm
Color:	Silver
Size:	240205200
Weight:	7kg
Certification:	ISO9001:2008
Manufacturing Method:	Cut Gear
Material:	Aliumininum Alloy
Toothed Portion Shape:	Helical
Type:	Helical

Product Description

Technical Features

The high degree of modularity is a design feature of SRC helical gearboxes range. It can be connected respectively with motors such as normal motor, brake motor, explosion-proof motor, frequency conversion motor, servo motor, IEC motor and so on. This kind of product is widely used in drive fields such as textile, foodstuff, ceramics packing, logistics, plastics and so on. It is possible to set up the version required using flanges or feet.

Products characteristics

SRC series helical gear units has more than 4 types. Power 0.12-4kw; Ratio 3.66-54; Torque max 120-500Nm. It can be connected (foot or flange) discretionary and use multi-mounting positions according to customers requirements.

Ground-hardened helical gears;

Modularity,can be combined in many forms;

Aluminium casing, light weight;

Gears in carbonize hard, durable;

Universal mounting;

Refined design,space effective and low noise

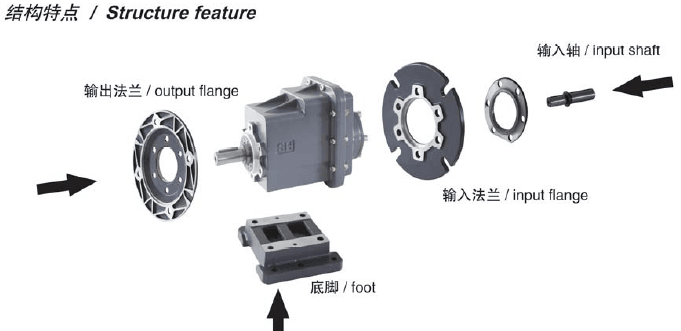

Structure feature
Model illuminate

1	Code for gear units series
2	No F or code means foot mounted.With F code B5 flange mounted.With Z code B14 flange mounted
3	Specification code of gear units 01
4	I,II,III,B5 Output flange specification,default I not to write out is ok
5	IEC: Input flange HS: shaft input
6	Transmission ratio of gear units
7	M1:Mounting position, default mounting position M1 not to write out is ok
8	Position diagram for motor terminal box,default position o°(R) not to write out is ok
9	No mark means without motor Model motor(poles of power)
10	Voltage - frequency
11	Coil in position for motor, default position S not to write out is ok

Relevant parameter
4.1 Power P

4.2 Rotation speed n

n1 Gear units input speed

n2 Gear units output speed

If driven by the external gearing,1400r/min or lower rotation speed is suggested so as to optimize the working conditions and prolong the service life.Higher input rotation speed is permitted, but in this situation,the rated torque M2 will be reduced
4.3 Rotation speed n
4.4 Torque M
4.5 Service factor fs

The effect of the driven machine on the gear unit is taken into account to a sufficient level of accuracy using the service factor fs. The service factor is determined according to the daily operation time and the starting frequency Z. Three load classifications are considered depending on the mass acceleration factor. You can read off the service factor applicable to your application in following figure. The service factor selected using this diagram must be less than or equal to the service factor as given in the performance parameter table.

SRCZ01 P(IEC) Performance parameter

kw	Output speed	Torque	Speed ratio	fs	Model	IEC
0.55	49.1rpm	103N.M	28.5	1.2	SRCZ01	80B5/B14

IEC	N	T	P
63B5	95	5	140
71B5	110	5	160
71B14	70	5	105
80B5	130	5	200
80B14	80	5	120
90B5	130	5	200
90B14	95	5	140

Mounting position and terminal box orientation

If inquiry the produces please confirm this paramater to us:

1. speed ratio

2. how many power as your use(kw)

3. which of mounting position (flange or foot)

4. others

less than 100kg better use express(3 to 7 days all country)

more than 100ke better use shipping(10 to 30days all country)

Warannty:

Worm: Chrominum alloy --20CR and the harness of face 56-62HRC

Worm gear: brozne-10-3#

Quality:ISO7

welcome to onling chating
