Shenzhen Handsome Technology Co., Ltd. >> SRT-6200 2 Parameters Surface Roughness Tester

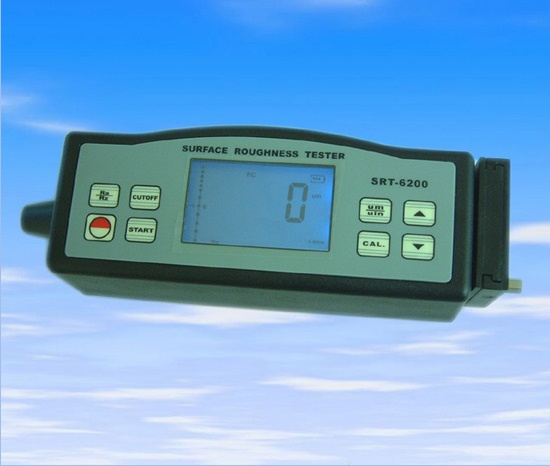

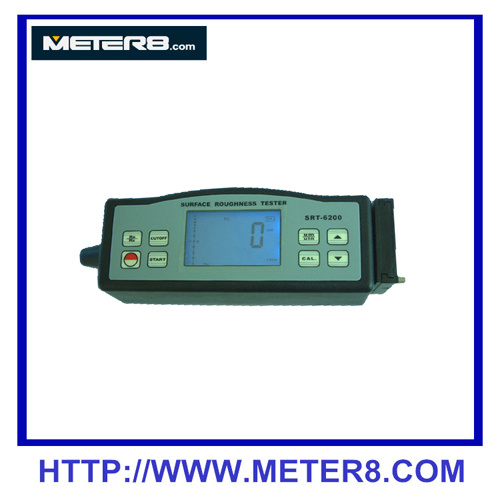

SRT-6200 2 Parameters Surface Roughness Tester

Name: SRT-6200 2 Parameters Surface Roughness Tester
Brand: china-manufacturer-directory.com
SKU: 724196425
Availability: InStock
Rating: 5 (21 reviews)

Supplier:	Shenzhen Handsome Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	SRT-6200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Parameters:	Ra, Rz
Measuring Range:	Ra: 0.05-10.00um/1.000-400.0uinch Rz: 0.020-100.0u
Accuracy:	Not More Than 10%
Fluctuation Of Display Value:	Not More Than 6%
Test Principle:	Inductance Type
Radius Of Probe Pin:	10um
Material Of Probe Pin:	Diamond
Measurement Force Of Probe:	16mn(1.6gf)
Probe Angle:	90°
Vertical Radius Of Guiding Head:	48mm

Product Description

SRT-6200 2 Parameters Surface Roughness Tester
Specifications:
Parameters: Ra, Rz
Measuring Range:
Ra: 0.05-10.00um/1.000-400.0uinch
Rz: 0.020-100.0um/0.780-4000uinch
Accuracy: Not more than 10%
Fluctuation of display value: Not more than 6%
Sensor:
Test Principle: Inductance type
Radius of Probe Pin: 10um
Material of Probe Pin: Diamond
Measurement Force of Probe: 16mN(1.6gf)
Probe Angle: 90°
Vertical Radius of Guiding Head: 48mm
Maximum driving stroke: 17.5mm/0.7inch
Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional
Evaluation length: 1~5 cut off optional
Driving speed:
Sampling length = 0.25mm Vt=0.135mm/s
Sampling length = 0.8mm Vt=0.5mm/s
Sampling length = 2.5mm Vt=1mm/s
Returning Vt=1mm/s
Resolution:
0.001µm if reading <10µm
0.01µm if 10µm=reading<100µm
0.1µm if reading =100µm
Evaluation length: 5 cut-off
Display: 4 digits, 10mm LCD, with blue backlight
Power Li-ion battery: Rechargeable
Operating conditions:
Temp. 0~50C
Humidity <80%
