Anping County Shunlu Wire Mesh Co., Ltd. >> Ss304 Welded Wire Mesh

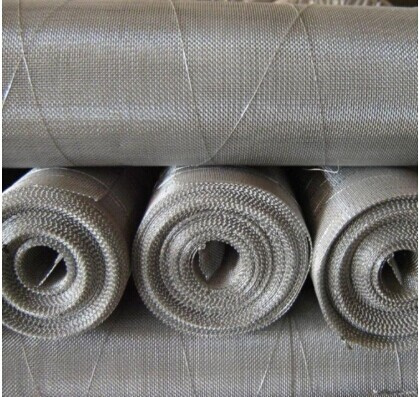

Ss304 Welded Wire Mesh

Name: Ss304 Welded Wire Mesh
Brand: China-Manufacturer-Directory.com
SKU: 692380452
Availability: InStock
Rating: 4.4 (135 reviews)

Supplier:	Anping County Shunlu Wire Mesh Co., Ltd.
Price:	US $ 25/Roll
Min Order:	1/Roll
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	s213
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mesh:	2-600
Width:	0.5-2m
Surface Treatment:	Bright
Length:	1-50m
Certificte:	ISO ,CE
Wire Dia:	0.015-2mm
Application:	Decorative Mesh
Material:	SUS304
Weave Technique:	Plain Weave
Hole Shape:	Square

Product Description

Specifications
Stainless Steel Wire Mesh
Free sample can be sent for your evaluation
Stainless mesh material: 316L 316 304 302etc

Stainless Steel Wire Mesh ( Free sample can be sent for your evaluation )
------------------------------------------------------------------------------------------
1. Materials: Stainless wire mesh used AISI302, 304, 304 L 316, 316 L stainless steel wire as raw materials.
2. Weaving: Plain weave, twill, Micronesia knitting pattern from which patterns dense network including plain - dense pattern, twill - dense pattern.
3. We plant the production of stainless steel wire mesh with a precise, reproducible production, wear-resistant, high strength, long service life, structural unity, does not curl, easy to use, screen thickness uniformity, anti-static, anti-acid-base resistance corrosion products with acid, alkali, temperature, wear-resistant properties.
4. Stainless Steel Wire Mesh mainly used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries
For many fields(barbecue
Professional stainless steel wire mesh (factory price)
1. Raw material: 302, 304 304L 316 316L
2. Gauge:
A. Wire diameter: 0.01mm-5mm
B. Mesh: 3-500 mesh
C. Width: 0.5m-5m
D. Length: 30m

3. Weave method:
A. Plain weave
B. Twill weave
C. Dutch weave

4. Capability
A. Acid resistant,
B. Alkali resistant
C. High temperature resistant
D. High tensile force
E. Wear resistance

5. Uses:
Used for sieving and filtering in acid and alkali conditions. It is also used as slurry mesh in petroleum industry, screen or filter mesh in chemical industry and chemical fibre industry, acid cleaning mesh in electro galvanization industry.

Mesh count per inch	Wire diameter inches	Absotu filer rating microns μm	Nominal filter rating microns μm
8X85	.014X.0126	318 - 340	250 - 255
12X64	.024X.0165	270 - 285	200 - 205
14X88	.020X.013	225 - 245	150 - 155
20X150	s.0098X.007	155 - 165	100 - 105
24X100	.015X.010	115 - 125	80 - 85
30X150	.009X.007	95 - 100	65 - 70
40X200	.007X.0055	65 - 70	55 - 60
50X250	.0055X.0045	55 - 60	40 - 45
80X400	.0049X.0028	43 - 48	35 - 40

Twill

Dutch Weave

Mesh count per inch	Wire diameter inches	μm	Nominal filter rating microns μm
20x250	.0098x.0079	110-120	98-105
30x360	.0098x.0060	90-100	80-84
40x560	.0070x.0040	70-75	47-52
120x400	.0040x.0025	50-55	37-43
120x160	.0040x.0025	40-45	28-32
80x700	.0040x.0030	35-40	24-26
200x600	.0024x.0018	28-32	19-21
165x800	.0028x.0020	24-26	14-16
165x1400	.0028x.0016	16-18	9-11
200x1400	.0028x.0016	12-14	5-6
250x1400	.0022x.0016	11-12	3-4
325x2300	.0015x.0010	8-9	2-3
