Product Specifications
| Prod Model: |
SSR-HD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Lr2 Thermal Relay Hot Sell Product |
| Inside Parts: |
Pure Copper |
Product Description

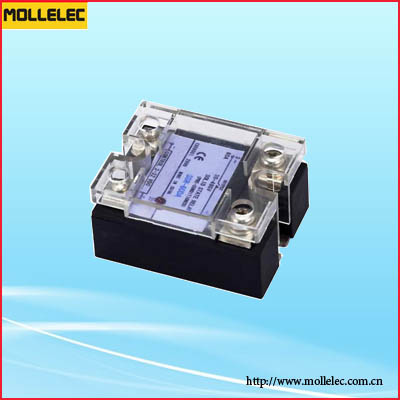

Single phase solid state relay
SSR: Reliable, fast switch, noiseless, long life, compact, no spark
40A 10A 20A 60A 25A 80A 10A
1. Low inductance case
2. Vacuum Weld Techinics
3. LED indicator
4. Clarity protect Panel
5. Favorable price with quality assurance
6. Timely delivery with good service
7. Authentication symbol of CE. RoHS
Features
Current:0.5A~400A
Voltage:12V~680V
Small outline
Vacuum Weld Techinics
Make R/C(MOV) inside could absorb out ITSM
Led indicator
Clarity protect Panel
IEC standard
Input & output type
DC/AC AC/AC DC/DC AC/DC |
Typical Applications
AC/DC switch & temp. control
Automate control
Numerical control machinery |
|
|
|
|
|
SSR-D Series Solid State Relay (DC-AC) |
|
Rated load current |
Operating voltage |
Min.ON voltage |
Min.OFF voltage |
Trigger current |
Load voltage |
Block voltage |
Voltage drop |
Peak current |
Leakage current |
Turn-on time |
Turn-off time |
Insulation voltage |
T j |
Outline |
|
A |
V |
V |
V |
12V |
V |
V |
V |
A |
mA |
ms |
ms |
V |
°C |
|
10 |
3-23 |
>2.4 |
<1.0 |
7.5mA |
240/480 |
600 |
2.0 |
135 |
3.0 |
10 |
10 |
2500 |
-30
~
+80 |
SSR1/2 |
|
25 |
3-23 |
>2.4 |
<1.0 |
7.5mA |
240/480 |
600 |
2.0 |
275 |
3.0 |
10 |
10 |
2500 |
|
40 |
3-23 |
>2.4 |
<1.0 |
7.5mA |
240/480 |
600 |
2.0 |
410 |
3.0 |
10 |
10 |
2500 |
|
60 |
3-23 |
>2.4 |
<1.0 |
7.5mA |
240/480 |
600 |
2.0 |
635 |
3.0 |
10 |
10 |
2500 |
|
75 |
3-23 |
>2.4 |
<1.0 |
7.5mA |
240/480 |
600 |
2.0 |
850 |
3.0 |
10 |
10 |
2500 |
|
90 |
3-23 |
>2.4 |
<1.0 |
7.5mA |
240/480 |
600 |
2.0 |
990 |
3.0 |
10 |
10 |
2500 |
Outline |
