Product Specifications
| Prod Model: |
SSR-V 10A 20A 25A 40A 60A 80A 100A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Relay Hot Sell Product |
| Inside Parts: |
Pure Copper |
Product Description
1. Low inductance case
2. Vacuum Weld Techinics
3. LED indicator
4. Clarity protect Panel
5. CE, ISO

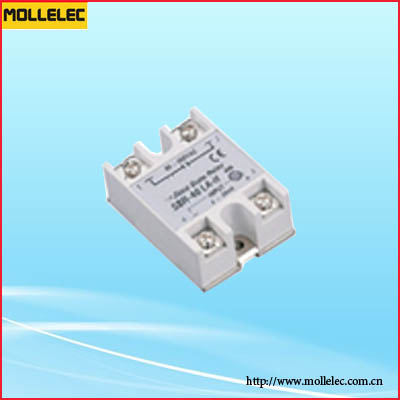

SSR-V Series Solid State Voltage Regulator
High quality. Low price. Quality certificate, Factory outlet, specializ
1. Low inductance case
2. Vacuum Weld Techinics
3. LED indicator
4. Clarity protect Panel
5. Favorable price with quality assurance
6. Timely delivery with good service
7. Authentication symbol of CE. RoHS
Features
Current:0.5A~400A
Voltage:12V~680V
Small outline
Vacuum Weld Techinics
Make R/C(MOV) inside could absorb out ITSM
Led indicator
Protection Panel
IEC standard
Input & output type
DC/AC AC/AC DC/DC AC/DC |
Typical Applications
AC/DC switch & temp. control
Automate control
Numerical control machinery |
|
|
SSR-V Series Solid State Voltage Regulator |
|
Rated load current |
Variable
resistance |
Operating
voltage |
Block
voltage |
Voltage
drop |
Peak
current |
Leakage
current |
Dielectric
strength |
Peak
current |
Insulation
sttength |
T j |
Outline |
|
A |
KΩ |
V |
V |
V |
A |
mA |
V |
A |
MΩ/VDC |
°C |
|
10 |
0~470 |
24~380 |
600 |
2.0 |
135 |
5.0 |
2500 |
135 |
50/500 |
-30
~
+80 |
SSR1/2 |
|
25 |
0~470 |
24~380 |
600 |
2.0 |
275 |
5.0 |
2500 |
275 |
50/500 |
|
40 |
0~470 |
24~380 |
600 |
2.0 |
410 |
5.0 |
2500 |
410 |
50/500 |
|
10 |
0~560 |
24~380 |
600 |
2.0 |
135 |
5.0 |
2500 |
135 |
50/500 |
|
25 |
0~560 |
24~380 |
600 |
2.0 |
275 |
5.0 |
2500 |
275 |
50/500 |
|
40 |
0~560 |
24~380 |
600 |
2.0 |
410 |
5.0 |
2500 |
410 |
50/500 |
|
|
