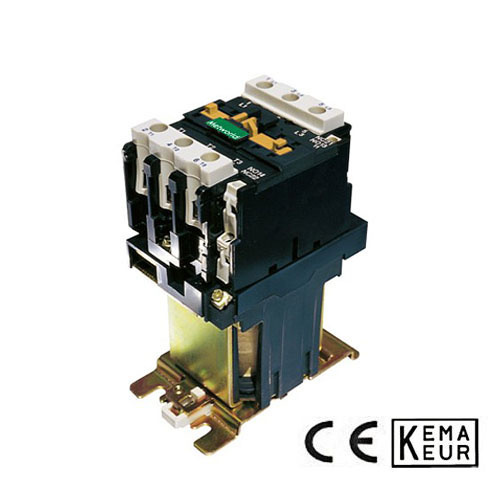

St19 Series Contactor for Power Factor Correction

Product Specifications

Prod Model:	ST19-2511, ST19-3202, ST19-4311, ST19-5002, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Demision:	Customized
Specification:	Customized
Material:	Customized
Standards:	IEC
Brand:	Metworld
No. Of Contacts:	N/0, N/C, etc.
N.M:	1.7, 2.5, 9, etc.
Power:	19, 24, 29, 36, 92, etc.
Frequency:	50, 60, Hz
Application:	Power Factor Correction
Size:	Miniature
Theory:	Thermal Relay
Usage:	Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay
Protective Characteristics:	Enclosed Rlay
Load:	Medium Power Relay

Product Description

ST19 series changeover capacitor contactor is mainly applicable to a powerLine of AC 50Hz or 60Hz, rated working voltage up to 380V. It is used to putA low voltage parallel connected capacitor in operation or switch it Off in a Low voltage reactive power compensation device. The contactor is equippedWith a surge suppressor, which can effectively reduce the surge currentPassing through the capacitor at witching on and suppress the over-voltageAt switching off. The product is in conformity with the standards IEC947-4-1.

Type	220V,240V kVAR	400V,440V kVAR	660V,690V kVAR	Power poles N/O,N/C		N.m
ST19-2511	6.7	12.5	19	1	1	1.7
ST19-3202	8.5	16.7	24	-	2	1.7
ST19-4311	10	20	29	1	1	2.5
ST19-5002	15	25	36	-	2	2.5
ST19-6312	20	33.3	48	1	2	5
ST19-8012	25	40	58	1	2	5
ST19-12512	40	60	92	1	2	9

Shipping:

1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
We provide 1 year warranty.
