Shandong Senter Electronics Co., Ltd. >> St308 Android 1d Laser Barcode PDA with RFID Reader 2D Qr Code

St308 Android 1d Laser Barcode PDA with RFID Reader 2D Qr Code

Name: St308 Android 1d Laser Barcode PDA with RFID Reader 2D Qr Code
Brand: china-manufacturer-directory.com
SKU: 702364062
Availability: InStock
Rating: 4.3 (138 reviews)

Supplier:	Shandong Senter Electronics Co., Ltd.
Price:	US $ 300/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ST308
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Smartphone
OS:	Android
Memory Capacity:	≥1GB
Applications:	Military PDA
CPU Type:	Qualcomm
Internet Connection:	WI-FI
Classification:	Bar-code Scanner
Screen Size:	4 Inch

Product Description

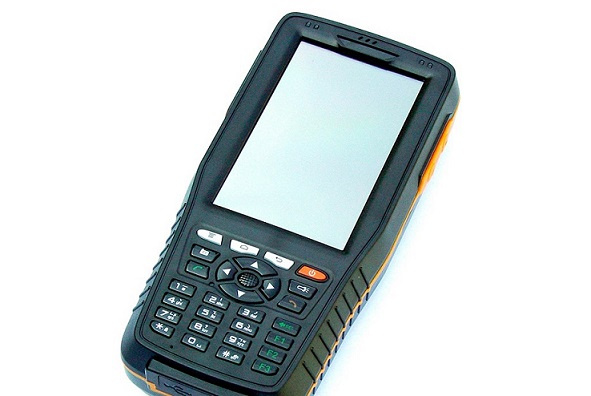

ST308   Industrial PDA
The first Android / 4 Core / 3G Industrial PDA in the world

Overview

Key Features
-- Android 4.1 operating system
-- MSM 4 core CPU, 1.2GHZ; RAM: 1G; Flash: 8G
-- IP65/Drop resistance from 1.2m
-- 4 inch IPS LCD screen, 480*800
-- 1D/2D laser bar code scanning (optional, you can chose 1D or 2D)
-- RFID (You can choose HF or UHF)
-- 3G WCDMA / CDMA
-- WI-FI, Bluetooth, GPS
-- Powerful 6000mAh battery capacity
--Seat type charger
-- Support LAN port
--5.0 million pixels; support auto focus and fill-flash function.

Applications
-- Logistics
-- Medical Treatment
-- Electrical Power
-- Gas Inspection
-- Purchasing Fair
-- Wareshouse inventory
-- Wareshouse management
-- Access control
-- Vehicles management
-- Asset management
Specifications

Standard Parts
General Specifications
Operating system		Android 4.1 embedded OS
CPU		1.2GHz
RAM		RAM:1G
		FLASH: 8G
Ports		One USB 2.0 port and one RJ45 port
Protection Grade
Industrial Protection Grade		IP65
Drop Grade		Drop resistance from 1.2m
Wireless Communication
Bluetooth		V2.0 ,Class II module
GPS		Support both A-GPS and GPSOne; the switch of GPS power supply can be controlled independently.
WIFI		Support IEEE 802.11b/g/n
3G		Support CDMA2000 1X/EVDO or WCDMA/GSM
Physical Layer Parameter
Display Screen			True color 4" IPS touchable display screen with 800*480 resolution
Keyboard			Physical numeric keyboard consisting of 33 keys
Camera			5.0 million pixels; support auto focus and fill-flash function.
Headset			Supports standard headset, Bluetooth headset; support Mike and receiver function
Vibration Function			Vibrating prompt function
Flashlight Function			Used for emergency lighting
Rechargeable Lithium Battery			3.7V, 6000mAh
Weight			350g
Dimension			173mm83mm38mm
Standby			The standby current is less than 10mA; more than 480 hours of continuous standby.
Environmental characteristics
Working Temperature		-20ºC ~ +50ºC
Storage Temperature		-40ºC ~ +60ºC
Humidity		5%-95% relative humidity; no condensation
Optional Parts (You can choose following optional modules, based on the market requrement)
Barcode scanning	Order code
	J	1D Laser barcode scanning
	2	2D Laser barcode scanning
	R	CCD barcode scanning
RFID	H	HF 13.56MHZ, support ISO14443A and ISO15693
	US	UHF 900MHZ(optional), support EPC C1 GEN2/ ISO 18000-6C, short distance 50cm Or 865-868MHZ(Europe Standard)
	UL2	UHF 900MHZ, support EPC C1 GEN2/ ISO 18000-6C,long distance 2m Or 865-868MHZ(Europe Standard)
	UL4	UHF(ultrahigh frequency) 900MHZ,4m Or 865-868MHZ(Europe Standard) Or 865-868MHZ(Europe Standard)
	L	Low frequency 125KHZ or 134KHZ

As a mainstay enterprise of China communication maintenance, Senter Electronics Co., Ltd, apply itself to the development, manufacture and distribution of communication maintenance instruments & facilities. The company is located in Zibo New-Hi Technology Area, Shandong Province, which is in the east of China. Senter was built in 1996. It has been approved as Hi-Tech enterprise in 1999. It has passed the ISO9001 of International Quality System Approval in June, 2000, and the authentication of software enterprise by Chinese Information Industry government in 2002. The postdoctral scientific research workstation was built in 2002, it helps Senter to create more advanced technology projects. During almost ten years development, Senter obtained 26 items of China National Patents.

The main customers of Senter are China Telecom, China Mobile and China Union; For overseas market, Senter provides test sets for telecoms, both famous manufacturer and distribution agent from UK, India, Thailand, Malaysia and other South Asian countries.

Senter acts upon to hunt for advanced technical, guarantees the quality of products, provide excellent after sales service.

To face the development of information technology in the 21st century, Senter will endeavor to research & development of test instruments in the field of communication, and to face directly various challenges, make persistent efforts, supply satisfied service to the information construction.
