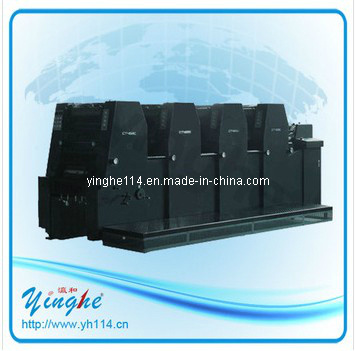

Stable China-made 4 Color Offset Press Machine
Type: Offset Printer
Condition: New
Plate Type: Offset printer
Place of Origin: Guangdong, China (Mainland)
Brand Name: Yinghe
Model Number: YH456
Usage: Paper Printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 380V
Gross Power: 10Kw
Dimensions(L*W*H): 4500*1800*1600mm
Weight: 9000kg
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Gripper margin: 8-10mm
Max. Printing size: 400X560mm
Packaging & Delivery
| Packaging details | Wooden packing |
| Delivery time | 30-45days |
Specification:
1. Over thick whole cast iron pedestal
2. Electric bevel draw plate plus intelligent plate draw system
3. Pneumatic pressure on-off
4. Rapid plate loading device
5. Import INA bearing original Germany
6. Electric control system adopts Taiwan component, 10.5" color touch screen
7. Equipped with fault diagnosis system
8. High quality alcohol tank and dampening motor has tracking function
9. Information collection adopts digital sensors
10. One set of special and universal tool
11. Automatic lubrication system
12. Automatic dry powder device
Optional device
1. Electric PS plate positioning punch machine
2. Air compressor
3. CPC ink volume remote control system
4. Automatic quick plate change device
| Model | YH456 |
| Max. printing size | 400X560mm |
| Min. sheet size | 210X297mm |
| Max. print format | 505 X 345mm |
| Paper size | 0.04-0.40mm |
| Max. speed | 10000 pieces/hour |
| Speed adjustment | Frequency converter |
| Plate size | 430X560X0.15mm |
| Blanket size | 500X560X1.90mm |
| Gripper margin | 8-10mm |
| Plate loading | Auto loading(optional) |
| Ink rollers | 16pcs per unit(4 form) |
| Dampening | Alcohol |
| Pile at feeder | 800mm |
| Pile at delivery | 400mm |
| Power supply | 380V,10KW |
| Noise | Less than 80db |
Yinghe Group LIMITED is one of the biggest leading company for sign equipment & media in China., Since founded in 2002. It mainly produces all kind of advertisement equipment, marking equipment and engrave machine such as inkjet printer, engraver, cutting plotter, DOT pin marker, and is a high scientific and technical enterprise that combines research, development, production and sale together.
Yinghe Group LIMITED relies on market experience for many years, establishes a relatively stable, continuously expanding and perfect sale and after-sale-service network. Our products have spread all provinces, municipalities and autonomous regions all over in China. Since 2002, Yinghe has begun targeting the foreign market. Now our product has been sold to Europe, USA, South America, North America, and Africa, totally more than 50 countries.
Branch office: China: Guangzhou, Shanghai, Beijing, Wuhan, Xi'an, Kunming, Hongkong.
Overseas parter: Nigeria, India, Poland.
