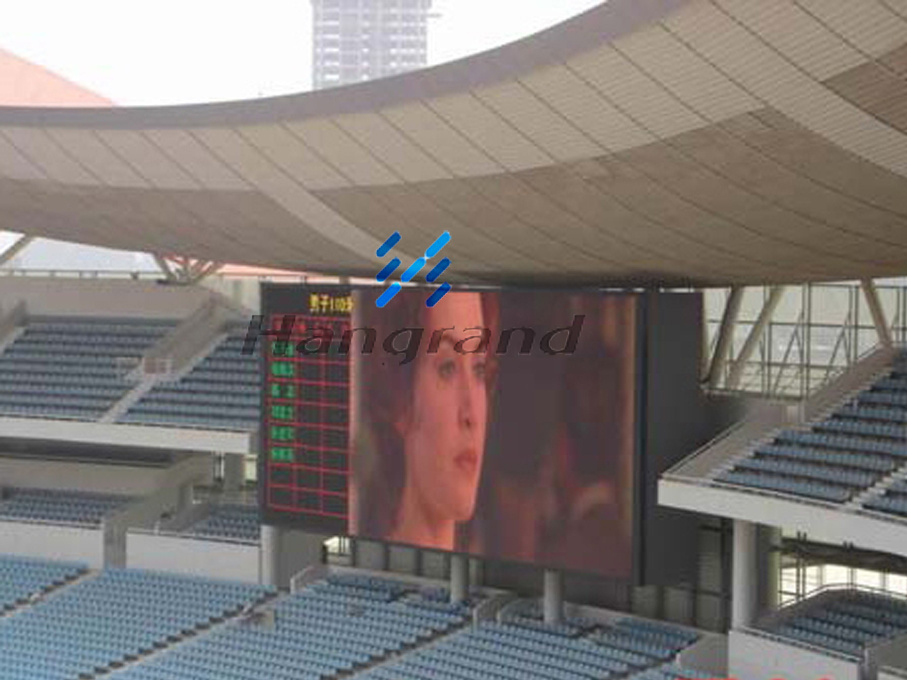

Stadium LED Display

Name: Stadium LED Display
Brand: China-Manufacturer-Directory.com
SKU: 700606265
Availability: InStock
Rating: 4.6 (107 reviews)

Supplier:	Shenzhen Hangrand Technology Co., Ltd.
Price:	Negotiable
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Guangdong, China (Mainland)
Brand Name:	Hangrand
Model Number:	Hg-Op10s
Pixels:	10mm
Service:	Service
Warranty:	2 Years
LED Chip:	CREE/Silan/Opto
Delivery:	10-15 Working Days
Payment:	T/T, L/C
Ingress Protection:	IP65
Usage:	Outdoor
Tube Chip Color:	Full Color
Display Function:	Video
Certification:	CE & RoHS

Product Description

Outdoor DIP Rental Full Color LED Display

Product Features
1, adopt the high quality LED lamps with black appearance, high brightness, less lumens depreciation, broaden viewing angles in horizontal and vertical.
2, Use private mold and special texture design on the surface, choose the 100 % PC as the kit materials with the characteristics of: Stable shapes, non-crackle, good tenacity, and high evenness for even split joint, , which is properly long-time used for outdoor.
3, IP65, Fire protection grade 94CV0, UV proof, resistance of high and low temperature, and acid base salty mist.
4, the whole raven is uniformity; Contrast ratio of the screen is very high, white balance is conformity, displaying color is uniformity, and the picture definition is high.
5, Supports signal flow randomly, satisfies different array and putting in order to create different image effects.
6, Equips professional video processor, which supports signal formats like AV, DP, VGA, DVI, YPbPr, HDMI, SDI etc.

	ITEMS	P10
Module	Pixel Pitch	10mm
	Pixel Density	10000dots/m 2
	Led Lamp Type	DIP
	Led Configuration	1R1G1B
	Module Size	160× 160mm
	Module Resolution	16× 16
	Scan Mode	1/4 Duty
	Drive Mode	Constant Current
Cabinet	Cabinet Size	800× 640mm
	Cabinet Resolution	80× 64
	Module Quantity	20
	Cabinet Weight	55kg/m 2
Display	Brightness	≥ 6500cd/m 2
	Contrast Ratio	≥ 4096: 1
	Viewing Angles(H/V)	120° /60°
	Min. Viewing Distance	10m
	Gray Scale	≥ 12bits/4096level
	Colors	68.7billion
Power Supply	Average Power Consumption	250w/m 2
Power Supply	Working Voltage	AC 90 to 260V, 50 to 60Hz
Control System	Frame Changing Rate	60 to 85Hz
	Refresh Rate	600 to 4000Hz
	Brightness Adjustment	0 to 100%
	Ganma Correction	(-0.5 to 5.0)
	Color Temperature	3000 to 9300K
	Brightness Correction	By Pixel, Module, Cabinet Correction
	Data input Source	AV, S-Videom, VGI, DVI, HDMI, SDI, DP
	Control Method	Synchronization with computer
	Data Transmission Distance	100m by UTP CAT5; 500m by Multi Optic Fiber; 10km by Single Optic Fiber
	Operation Environment	Windows(2000, XP, Vista, 7)
Reliabilty	Storage Temperature	(-40 to 85)centi degree
	Working Temperature	(-20 to 50)centi degree
	Working Humility	10% to 90%
	MTBF	5000Hrs
	IP Rating	IP65/IP43(Front& Rear)
	Blind Spot Rate	≤ 0.01%
	Lifespan	100, 000Hrs

Shenzhen Hangrand Technology Co., Ltd. is a Hi-Tech enterprise specializing in LED displays, LED & LED lighting products and LED decoration products. We are mainly engaged in the production of outdoor&indoor LED displays, LED bulbs, LED spotlights, ceiling lamps, LED tubes etc.
Our products have gained national patent (Patent NO: 0226570.8). We also have passed CCC, CE, RoHS, FCC and UL Certifications. Our products have been sold to Europe, American, Middle East, Africa and Australia.
Our company is located in the Hengguan Industrial Park in Pinghu, Shenzhen. Our factory covers more than 10000sqm and has 600 employees including 50 senior technicians. Our highly skilled staff members and excellent management persons have implemented a strict quality supervision and inspection system, which ensures that our products can achieve international standards. Our R&D Dept. Has strong capability of developing new items in accordance with customers' requirements. OEM and ODM orders are welcome. We strongly believe in the tenet of "innovation forever, which can lead to a bright future".
We are looking forward to building up good business relationships with all customers based on mutual benefits. You are welcome to visit us and contact us for more details.
