Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Brand Name: |
Hangrand |
| Model Number: |
Hg-IP5c |
| Pixels: |
5mm |
| Service: |
Service |
| Warranty: |
2 Years |
| LED Chip: |
CREE/Silan/Opto |
| Delivery: |
10-15 Working Days |
| Payment: |
T/T, L/C |
| Ingress Protection: |
IP43 |
| Usage: |
Indoor |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video |
| Certification: |
CE & RoHS |
Product Description
Indoor Full Color Rental LED Display for Advertising
Product Features
1, adopting the brightness and hue adjustment technologies, eliminate the bright and dark patches and plaques, realize the color and brightness uniform of the whole display; Taking the HDTV standards as the color correction reference, restore nature vivid colors for the whole display.
2, meticulous design of modules reduce the plane difference to less than 0.2mm, effectively eliminate the mosaic phenomenon and ensure the excellent flatness and contrast of the whole display.
3, Modular ultra light cabinet with fast lock and dowel pin on it make it quite easy for installation, disassemble and maintain. It can realize lifting or piling installation on site.
4. Cabinet made of good quality pressure-casting aluminum can bear load strength and reduce deformation; It's suitable for large entertainment.
5, Cabinet inside with power and signal indicator realizes fast fault diagnosis and in-time restoration; Time switch function makes unattended operation possible.
Application Fields:

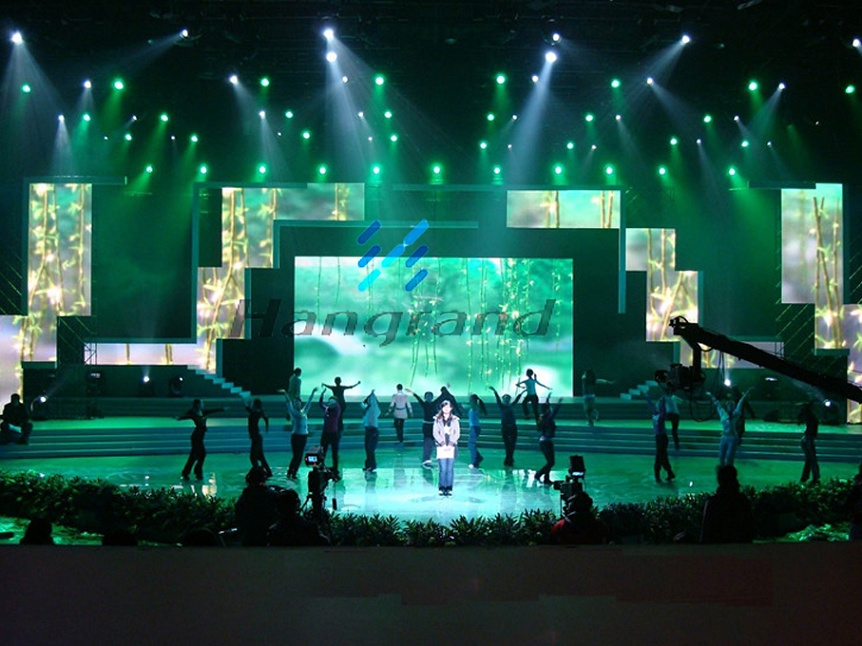

Stage performing, Video Conferencing, Traffic Scheduling, Auto Show, Safety Monitoring, large scale ridotto, opening and closing ceremony of the sports events, different celebration activities, commodity trade or exposition fair and so on.
|
|
ITEMS |
P5 |
|
Module |
Pixel Pitch |
5mm |
|
Pixel Density |
40000dots/sqm |
|
Led Lamp Type |
SMD 3 IN 1 |
|
Led Lamp Size |
3.5× 2.8mm |
|
Led Configuration |
1R1B1G |
|
Module Size |
160× 160mm |
|
Module Resolution |
32× 32 |
|
Scan Mode |
1/8 duty |
|
Drive Mode |
Constant Current |
|
Cabinet |
Cabinet Size |
640× 640mm |
|
Cabinet Resolution |
128× 128 |
|
Module Quantity |
16 |
|
Cabinet Weight |
less than 25kg/m 2 |
|
Display |
Brightness |
≥ 2500cd/sqm |
|
Contrast Ratio |
≥ 2000: 1 |
|
Viewing Angles |
140° (H)/140° (V) |
|
Min. Viewing Distance |
5m |
|
Gray Scale(Single Color) |
≥ 12bits/4096 level |
|
Colors |
68.7 billion |
|
Power Supply |
Average Power Consumption |
500w/m 2 |
|
Working Voltage |
AC 90 to 260V, 50 to 60Hz |
|
Control System |
Frame Changing Rate |
60 to 85Hz |
|
Refresh Rate |
600 to 4000Hz |
|
Brightness Adjustment |
0 to 100% |
|
Ganma Correction |
(-0.5 to 5.0) |
|
Color Temperature |
3000 to 9300K |
|
Brightness Correction Mode |
By Pixel, Module, Cabinet Correction |
|
Data input Source |
AV, S-Videom, VGI, DVI, HDMI, SDI, DP |
|
Control Method |
Synchronization with computer |
|
Data Transmission Distance |
100m by UTP CAT5; 500m by Multi Optic Fiber; 10km by Single Optic Fiber |
|
Operation Environment |
Windows(2000, XP, Vista, 7) |
|
Reliability |
Storage Temperature |
(-40 to 85)centi degree |
|
Working Temperature |
(-20 to 50)centi degree |
|
Working Humidity |
10% to 90% |
|
Lifespan |
100, 000Hrs |
|
MTBF |
5000Hrs |
|
IP Rating |
IP43 |
|
Blind Spot Rate |
≤ 0.01% |
Shenzhen Hangrand Technology Co., Ltd. is a Hi-Tech enterprise specializing in LED displays, LED & LED lighting products and LED decoration products. We are mainly engaged in the production of outdoor&indoor LED displays, LED bulbs, LED spotlights, ceiling lamps, LED tubes etc.
Our products have gained national patent (Patent NO: 0226570.8). We also have passed CCC, CE, RoHS, FCC and UL Certifications. Our products have been sold to Europe, American, Middle East, Africa and Australia.
Our company is located in the Hengguan Industrial Park in Pinghu, Shenzhen. Our factory covers more than 10000sqm and has 600 employees including 50 senior technicians. Our highly skilled staff members and excellent management persons have implemented a strict quality supervision and inspection system, which ensures that our products can achieve international standards. Our R&D Dept. Has strong capability of developing new items in accordance with customers' requirements. OEM and ODM orders are welcome. We strongly believe in the tenet of "innovation forever, which can lead to a bright future".
We are looking forward to building up good business relationships with all customers based on mutual benefits. You are welcome to visit us and contact us for more details.
