Stage Effect 10r Beam Moving Head Light

Name: Stage Effect 10r Beam Moving Head Light
Brand: china-manufacturer-directory.com
SKU: 771000145
Availability: InStock
Rating: 5 (97 reviews)

Supplier:	Guangzhou CN Eagle Lighting Co., Ltd.
Price:	US $ 620-650/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	ZY-BS280
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Consumption:	470W
Lens:	High Precision Optical Glass Lens
Colors:	13 Color+White
Rotating Gobo Wheel:	9 Gobos+ White
Static Gobo Wheel:	14 Fixed Gobos+White
Prism 1:	8-Facets Circular Rotating Prism
Prism 2:	6-Facets Linear Rotating Prism
Zoom:	2.5° -20°
Net Weight:	19kg
Warranty:	2 Years
Emitting Color:	Changeable
Strobe:	Adjustable Speed Strobe
IP Rating:	IP20
Certification:	CE
Light Source:	Osram 280W Lamp
Material:	Plastic + Steel
Control Channel:	16CH/24CH
Control Mode:	DMX512,Automatic and Master/Slave Mode
Voltage:	100-250V

Product Description

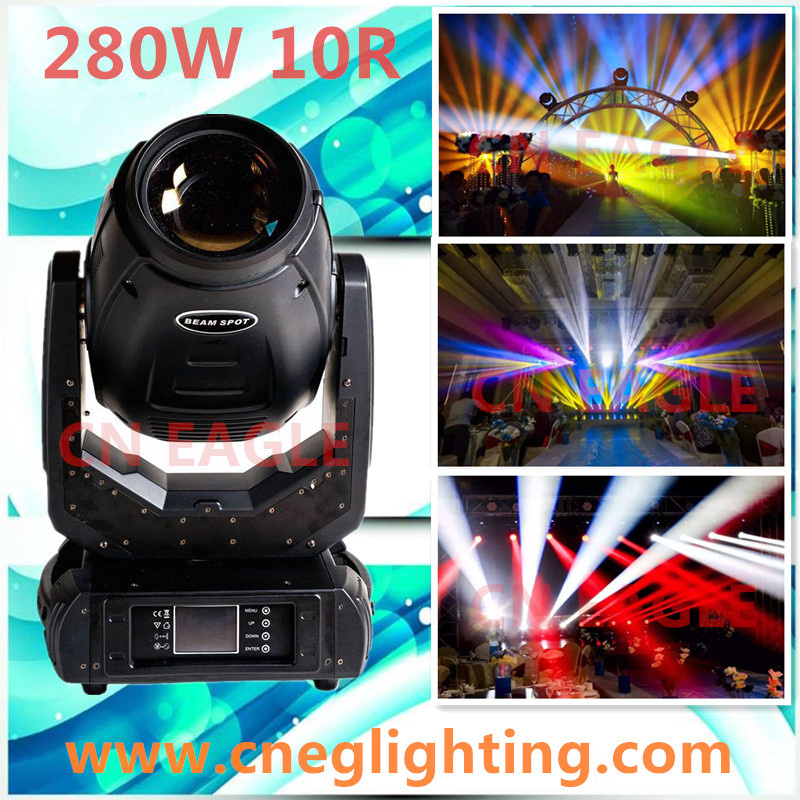

10r Beam Moving Head Light

Technical Parametes:

Lamp	Osram 280w lamp
Input voltage range	100-240V,50/60HZ
Dimmer	Smooth dimmer from 1-100%
Control channels	16/24 CHs
Pan	540 °
Tilt	270 °
Static Gobo wheel	14 gobos+open
Rotating Gobo wheel	9 rotating, indexable and replaceable+open
Prism 1	16/8- facet circular prism rotating in both directions at different speeds
Prism 2	6- facet linear prism rotating in both directions at different speeds
Frost filter	Separate, variable frost filter
Zoom	Linear motorized zoom
Strobe	Strobe effect with variablespeed(max. 15 flashes/sec.)
Size	364250585.5mm
weight	15.3KG

Effects & Zoom:

3D gobo effect

3 user editable programs, each up to 100 steps

Beam & Wash & Zoom effect

Zoom range: 2.5 ° -10 ° beam application

Zoom range: 5 °-20 ° spot application

Motorized Linear Zoom: 2.5 °-20 °

Prism & Color Wheel & Gobo Wheels:

Prism (1): 16/8-facet circular prism rotating in both directions at different speeds

Prism(2): 3D prism, with continuous rotation in both directions

Color wheel: 13 dichronic filters + white

Static gobo wheel: 14 gobos + open

Rotating gobo wheel: 9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos +open

Guangzhou CN Eagle Lighting Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments.

The main products include moving head beam, LED stage light, follow spot, LED PAR Lights etc.

We own a professional R&D team, who has about 10 more years experience in stage lighting.

Our sales team can provide best service by engineers and technical staff members' supporting.

Most of our products have passed CE quality management system standard as well.

There are numerous domestic projects we have been undertaken, was praised by all the customers.

Our main products are 200W/230W/280W/330W 5r/7r/10r/15r moving head beam, 19 X 15W bee eye LED moving head, 36/37 X 15W LED moving head, 54 X 3W LED PAR/ non-waterproof LED PAR,

8 X 12W LED moving spider light etc,

Our lighting are suitable for stage event, concert, studio, night club, disco, architectural, karaoke television we currently provide comprehensive service and customer support to over 40 international countries and regions.

We offer high quality products, best after-sales service, fast shipment.

Customer First! We always strive to exceed the customer's expectation. We go thogether to become the leading stage lighting supplier on a global maket.
