Product Specifications
| Prod Model: |
XM-D4F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Feature: |
Heat Resistant |
| Mesh Type: |
Assembled Belt Reinforced Double Wire,etc |
| Length: |
as Your Demand |
| High Tensile: |
Corrosion Resistance |
| Load Capacity: |
1080-1280/M2 |
| The Net Width: |
150 ~ 5500mm |
| Belt Speed: |
0.15 ~ 0.50m/Min |
| Application: |
Barbecue Wire Mesh |
| Material: |
304L |
| Weave Technique: |
Plain Weave |
| Hole Shape: |
W Shape |
Product Description
Specifications
Conveyor belt

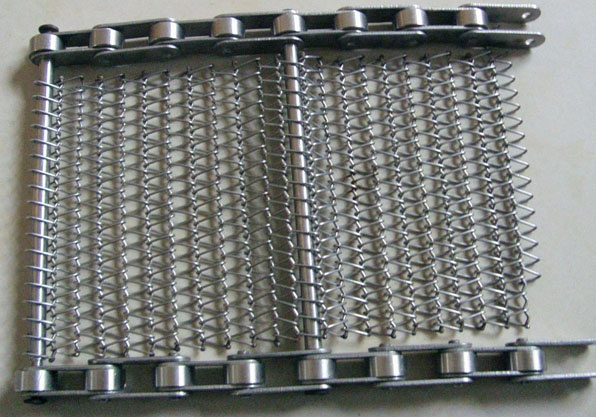

Stainless steel conveyor belt
Large capacity
Durable working life
Easy to install
Conveyor belt
Conveyor belt mesh, conveyor belt, mesh belt, mesh B word
Material: Stainless steel wire: 304 316 310 430 and so on, stainless steel wire, low carbon steel wire, galvanized iron wire, nickel chromium wire, iron chromium aluminum wire, polyester wire.
Weaving and characteristics: Its organizational structure and shape of ordinary weaving, reinforce weaving, sectional common weaving.
Application: Widely applied in petroleum, metallurgy, food processing machinery, pharmaceutical, glass, printed circuit board special equipment and other industries.
Main technical parameters
1, the net width: 150 ~ 5500mm
2, belt speed: 0.15 ~ 0.50m/min
3, temperature: -40 ° C ~ 1300 ° C
4, the edge of the form: Curved edge, upsetting, welding and other forms.
Features:
1, has good corrosion resistance, abrasion resistance, high temperature properties.
2, moderate and high temperatures in the negative with satisfactory anti-shrink, anti-oxidation, anti-fracture properties.
3, reasonable design, compact structure, specifications, ease of installation, operation and reliable
Conveyor mesh belt
1: Widely used in solar -power, mine, petroleum, chemical, food, pharme ceuticals, glass printing and machine
2: Heat treatment, drying, cooling. Refrigerating, cleaning, dehydration. Sintering.
3: Sintering furface, anaealing furnace, continuous tunnel furnace.
4: The sprocket drive ensures positive and stable running.
5: Belt can have tight mesh and can carry small items.
|
Mesh Diameter |
Other Mesh Diameter |
Other Mesh NO./m |
Mesh NO./m |
|
4 |
6 |
33(radix) |
40(circle) |
|
3.5 |
3.5 |
33(radix) |
40(circle) |
|
2.8 |
2.8 |
52(radix) |
60(circle) |
|
2 |
2 |
57(radix) |
71(circle) |
|
2.8 |
2.8 |
72(radix) |
80(circle) |
|
2.8 |
3 |
92(radix) |
100(circle) |
|
2.8 |
2.8 |
105(radix) |
118(circle) |
|
2.8 |
2.8 |
60(radix) |
138(circle) |
|
1.6 |
1.6 |
72(radix) |
80(circle) |
|
1.6 |
1.6 |
105(radix) |
118(circle) |
|
1.6 |
1.6 |
125(radix) |
138(circle) |
|
1.6 |
1.6 |
158(radix) |
158(circle) |
|
1.2 |
1.2 |
92(radix) |
100(circle) |
|
1.2 |
1.2 |
105(radix) |
118(circle) |
|
1.2 |
1.2 |
92(radix) |
138(circle) |
|
1.2 |
1.2 |
158(radix) |
158(circle) |
|
0.9 |
0.9 |
158(radix) |
158(circle) |
Anping Xingmao Metal Wire Mesh Co., Ltd. is located at Anping County, Hebei Province, the famous Wire Mesh Town in China. XingMao is a one of the 5 biggest wiremesh companys in China, has advanced technology and equipment of production, test and inspection. The products are all inspected by our professional inspection team. We can design and develop different wire mesh products upon customers requirements or drawings.
Our main products include:
Gabion basket,
Gabion box,
Security Fence,
Garrison Fencing,
Perforated metal sheet,
Stainless steel wire mesh,
Galvanized iron wire,
Black annealed wire,
Alumium alloy wire mesh,
Brass wire mesh,
Copper mesh etc,
Which are widely applied in petroleum, chemical, food, construction and other industries.
Our export amount is up to 65, 000.00 dollars averagely per month. We mainly export to Europe, America, South Amercia, East and south Asia, MID east district, and some parts Africa countrys. With a dozen of years, we have entered into steady business with hundreds of customers at home and abroad.
General Manager, on behalf of all employees of Xing Mao, warmly welcomes you contact us for further information! We trust we can cooperate well based on mutual benefit and trust!
