Stainless Steel Fermentation Tank Wine Making Machinery Double Layer

Product Specifications

Prod Model:	ZTFV-08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	SUS304or SUS316L
Surface Finish:	Mirror Polish
Certifications:	CE, SGS, ISO 9001
Type:	Refrigeration Equipment
Product Type:	Toothpaste
Processing Material:	Natural Ingredients
Process:	Ferment
Composition:	Fermentation

Product Description

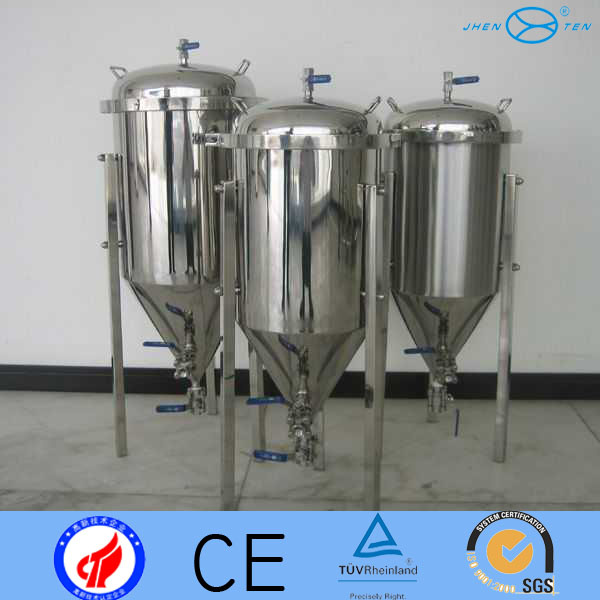

Stainless Steel Fermentation Tank Wine Making Machinery Double Layer

Specifications

stainless steel grape beer fermenter, they are made of stainless steel 304 or ss316,used for grape beer production .
stainless steel grape beer fermenter
supplying range as below,
Tank (Pressure Vessel) volume: 500L-500000L
Dimension: we could design diameter and height as per customers' request
Material: Stainless Steel (304 or 316L)
Tank shell thickness: 1.5-8mm
Pressure (MPa): Atmospheric pressure-Middle pressure (According to the America Design standard)
Function: fermentation tank
Design temperature: 0-200 degree
Medium: Various drinks including wine, beer, fruit juice, and so on.
Tank surface: Mirror polished ,Matt polished ,2B
Operation plate form: We can design the platform if required.
Mixing: Top side or bottom mixing.
General accessories(If required): Manhole, CIP, respirator, sight glass, mixing
Manufacture standard: Chinese Pressure Vessel Design and Making Standard (Or  America Pressure Vessel Design and Making Standard)
Guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arcwelder and auto polishing machines and cooperating with international famous finished


Main parameters:


Item	Volume	A	B	C	D	E	F	G
ZTFV-04	400L	950	1090	500	750	165	320	2220
ZTFV-06	600L	950	1090	500	1000	165	320	2470
ZTFV-08	800L	1100	1240	500	1030	175	351	2561
ZTFV-1	1000L	1270	1410	500	1030	195	386	2636
ZTFV-1.5	1500L	1270	1410	500	1390	195	386	3096
ZTFV-2	2000L	1400	1540	500	1460	225	413	3223
ZTFV-3	3000L	1600	1740	500	1670	255	455	3505
ZTFV-4	4000L	1850	1990	500	1700	305	506	3636
ZTFV-6	6000L	1850	1990	500	2470	305	506	4406
ZTFV-10	10000L	2150	2315	500	2970	340	568	5268
ZTFV-15	15000L	2450	2615	500	3400	360	631	5781
ZTFV-20	20000L	2850	3015	500	3400	380	714	5884



Why Choose Us:

Specialist manufacturer

We have own factory,we get CE certification,Special equipment pressure vessel manufacturing license.We specialize in manufacturing beer brewing equipment.

2.Quality and price

We have professional purchasing team. Comparing multiple vendors,then choose
best raw materials and the most preferential price. We have skilled worker and
strict quality control system,provide the best quality products to our customers.


3.Convenient transportation

Our company is located in Wenzhou Zhejiang,which is near Shanghai port and Ningbo port. It just take 5 hours from shanghai to our factory and take 3 hours
from Ningbo to our factory.

4.Clear order process

We have clear order process. From mails &calling→→order confirmed →→make advance payment→→workshop produce→→pay the balance→→deliver goods→→buyers receiving confirmation→→satisfaction survey.

5.Quality of service

We will provide photos to make our customers know the order status. Of course,we welcome our customers to our factory to inspect any time!
