Product Specifications
| Prod Model: |
QK-0108 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Width: |
0.5-1.8m |
| Wire Gauge: |
Bwg12----24, etc |
| Sample: |
Free |
| Wire Diameter: |
0.4-6mm |
| Certification&Inspection: |
ISO9001:2008, SGS, etc |
| Customized: |
Avaliable |
| Business Type: |
Manufacturer |
| Zinc Coated: |
Electro Galvanized and Hot-Dipped Galvanized |
| Specification: |
Roll |
| Color: |
White, Green |
| Material: |
Galvanized Iron Wire |
| Application: |
Window Curtain |
| Surface Treatment: |
Galvanized |
| Weave Method: |
Positive and Negative Twist |
| Weave Technique: |
Plain Weave |
Product Description
1.Products Description
*Material: Low carbon steel wire, stainless steel wire
*Weaving and characteristics:
*Hot dipped galvanizing after weaving
*Weaving with hot dipped galvanized iron wire
*Electric galvanizing after weaving
*Weaving with electric galvanized iron wire
2.Specifications
| Specification List of Welded Wire Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
3.Products pictures
4.Packaging&shipping
5.Payment
6.Company Information
Hebei Qunkun Metal Product Co., Ltd is a premier manufacturer and supplier of wire mesh products located in Anping Town, the famous Wire Mesh Land of China. We have engaged in wire drawing, wire mesh weaving and metal fabricating for about ten years and have accumulated rich experiences in this field.
Our Products:

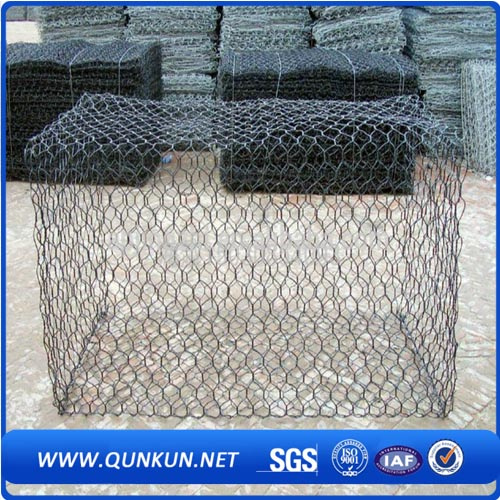

Hexagonal wire netting, gabions, chain link fence, wire mesh fences, welded wire mesh, welded wire panels,expanded metal mesh, stainless steel wire mesh, Dutch woven wire cloth,galvanized square wire mesh, galvanized wire, insect screen, barbecue grill netting, razor wire, barbed wire andfencing accessories.Any need,just told us.
