Yueqing Langir Electric Co., Ltd. >> Stainless Steel Metal Waterproof Push Button Switch, 12 Volt Illuminated Pushbutton Switch

Stainless Steel Metal Waterproof Push Button Switch, 12 Volt Illuminated Pushbutton Switch

Stainless Steel Metal Waterproof Push Button Switch, 12 Volt Illuminated Pushbutton Switch
Supplier: Yueqing Langir Electric Co., Ltd.
Price: US $ 3.25/Piece
Min Order: 20/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: Ls16-F-M1-S-D-R
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Is Customized: Yes
Material: Stainless Steel
Function: Momentrary
LED Shape: DOT Illumination
Voltage: 12V
Usage: Reset Button

Product Description

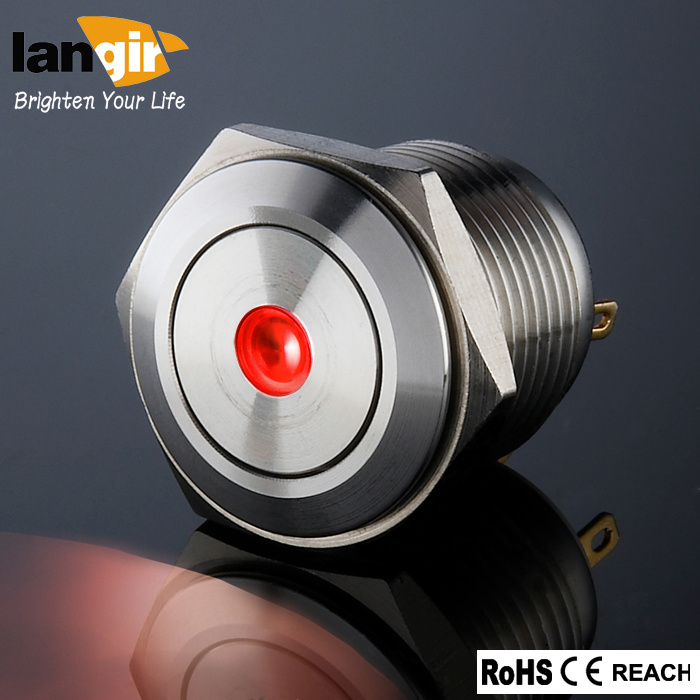

 Ls16 Waterproof  Flat Stainless Steel Dot momentary pushbutton switch with red LED
is_customized                            Yes
Material                                       Stainless steel
Function                                      Momentrary
LED shape                                 Dot illumination


TypeLs16-FLs16-F/RLs16-F/D
Illuminated TypeNon-IlluminatedRingDot
TerminalPin(2.8*0.5)



Max.Switch RatingIth:2A Ui:36VDC



Contact Ressistance≤50mΩ



Insulation Resistance≥1000mΩ



Dieletric Strengh2000VAC



Operation Temp_20C~+55C



Mechanical Life1000000 Cycles



Electric Life200000 Cycles



Contact MaterialSliver Alloy



Torque5~14Nm



Operation Pressure3~5N



ProtectionIP65/IK08



Material





ActuatorStainless Steel/*Anodized Aluminum



BodyStainless Steel/Nickel Plated Brass/*Anodized Aluminum
TypeLED



BasePBT



Voltage6V/12V/24V/36V/110V/230V



LifeApprox:40000 hours



Established in 2009, Langir Electric Co., Ltd. Specializes in manufacturing low voltage electrical control equipment and components. With these series comprising the majority of our product range, we are now supplying various models of metal pushbutton switch, piezo switch and other electrical components.

With workshop facilities covering an area of 1, 500 square meters and sophisticated manufacturing equipment introduced into our factory, we have gradually set up the system of providing clients with the highest grade products according to the ISO system. With our strict quality self-requirement, we passed CE, RoHS certificate. Reach and National CCC certificate are in progress.

Due to consistent high quality and reasonable prices, our brand LANGIR products have gained an excellent reputation in various markets. From 2009-2012 year, our annual sales value increased 50%-100% year by year.

We are looking forward to being able to cooperate with your company. If you are interested in any of our series or have a customized requirement to complete, please don't hesitate in contacting us.

We sincerely invite you to be our agent.
