Product Specifications
| Prod Model: |
LHTQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating Way: |
Steam Heating, Electricity Heating |
| Extractor Material: |
SUS304 or SUS316L |
| Extractor Shape: |
Cylinder, Cone |
| Main Parts: |
Extractor, Condenser, Cooler, Separator |
| Type: |
Preparation Machinery |
| Finished Dosage Form: |
Liquid |
| Certification: |
SGS |
Product Description

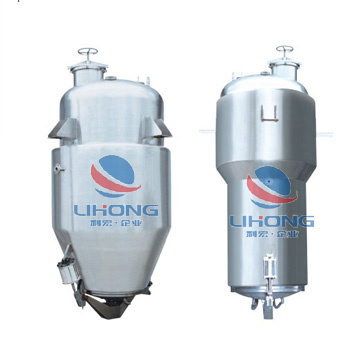

TQ multi-functional extracting tanks
Application: Herb industry, dextrose, dairy industry, liquid food industry
Material: SUS304 or SUS316L
Evaporation capacity: 500L ~ 15000L
Steam heating
Jacket (PUF)
Low temperature vacuum concentration processing
Finish: Internal Mirror Polish, external Matt
GMP standard
| Specification Model | TQ-0.5 | TQ-1.0 | TQ-2.0 | TQ-3.0 | TQ-6.0 | TQ-8.0 |
| Full capacity(L) | 650 | 1200 | 2500 | 3500 | 6500 | 8900 |
| Extractor Design pressure(MPa) | 0.09 |
| Jacket Design pressure(MPa) | 0.3 |
| Inlet diameter(mm) | 300 | 300 | 400 | 400 | 450 | 500 |
| Heating area(m 2 ) | 2.4 | 3.1 | 4.2 | 5.5 | 7.1 | 9.5 |
| Condensing area(m 2 ) | 3 | 5 | 5 | 8 | 10 | 12 |
| Cooling area(m 2 ) | 1 | 1 | 1 | 1 | 1.5 | 1.5 |
| Filtering area(m 2 ) | 0.25 | 0.25 | 0.25 | 0.25 | 0.5 | 0.6 |
| Discharging diameter(mm) | 800 | 800 | 800 | 800 | 1000 | 1200 |
| Consumption(kg/h) | 245 | 325 | 345 | 645 | 720 | 850 |
| Container class | Class I |
Wenzhou Lihong Machinery Technology Co., Ltd. A special manufacturer integratd with design, manufacture, solutuin finding, devotes itself to manufacture equipments in the fields of
1. Dairy equipments.
2. Brewery processing equipments.
3. Pharmaceutical equipments.
4. Pipe and fitting.
It mainly focus on producing health-grade equipments for extraction, concentration and recovery of stainless steel tank and pipe accessories and valves, series full automatic CIP cleaning machines and PLC system.
All the product is designed and made strictly in accordance with the ISO90012000, the GMP standard.
Our advanced craft is focus on tanks, fittings, extraction and concentration of Herbs, recovery of alcohol and high efficient and energy-saving equipments and the high practice and attractive appearance can improve the production efficiency greatly.
The complete equipment for large transfusion and water injection features pleasant appearance and special structure; The injection and material allocation system and extraction & concentration system for China traditional drug and the CIP system can realize the automatic management for production and control.
The Lihong company holds the marketing purpose of WIN-WIN situatuion and keeps long-term cooperation with the famous manufacturer native and abroad. The products are exported to oversea enjoys high repuation from the clients.
The Lihong always holds the operation purpose of honest, innovation.
Business Type: Manufacturer/Factory
Number of Employees: 55
Management System Certification: ISO 9000,GMP
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T, Western Union
Average Lead Time: Peak season lead time: 1-3 monthsOff season lead time: one month
Number of Foreign Trading Staff: 1~3 People
Main Customer(s):
| Company Name: | Black Sheep Winery |
| Country / Region: | Canada |
| Products You Supply: | Stainless Steel Wine Tank |
| Company Name: | FAIRY DELIGHTS LTD |
| Country / Region: | Tanzania |
| Products You Supply: | Milk cooling tank, pump, fittings |
| Company Name: | PT. Pachira Distrinusa |
| Country / Region: | Indonesia |
| Products You Supply: | Concentrator |
| Company Name: | KEAN SOFT DRINKS LTD |
| Country / Region: | Cyprus |
| Products You Supply: | Milk Cooling Tank |
| Company Name: | Owenpeters Scientific Instrument NIG. LTD |
| Country / Region: | Nigeria |
| Products You Supply: | Milk Machine |
Export Year: 2003-03-01
Export Percentage: 51%~70%
Main Markets: South America, Southeast Asia/ Mideast, Africa
Export Mode: Exportation via agency
Factory Address: No. 168, Houzhang Road, Yongzhong Street, Longwan District, Wenzhou, Zhejiang, China
R&D Capacity: Own Brand(LIHONG)
No. of R&D Staff: 5-10 People
No. of Production Lines: 4
Annual Output Value: US$5 Million - US$10 Million
