Product Specifications
| Prod Model: |
stainless steel wire mesh |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Width: 2',2.5',3',4',5'length:15m And 30: |
Mesh Size:1mesh-635mesh |
| Application: |
Cages |
| Material: |
SUS304 |
| Weave Technique: |
Plain Weave |
| Hole Shape: |
Square |
Product Description

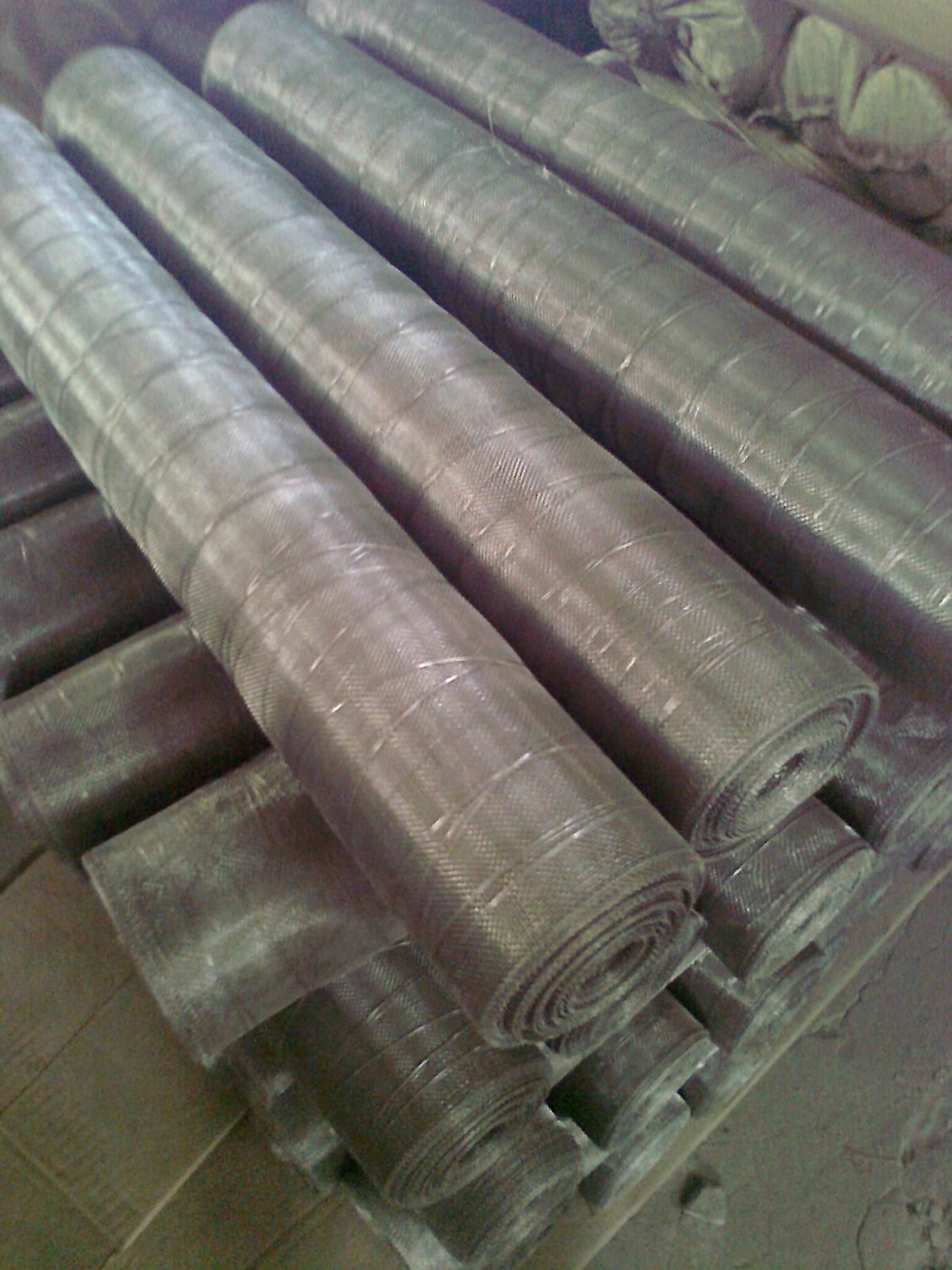

Stainless Steel Woven Wire Mesh
The Stainless steel wire mesh is made of the SS wire to woven, also called Stainless steel woven mesh Screen, To made the square hole with plain weave, named Stainless steel square mesh. For the Twilled woven, can called Stainless steel twilled mesh cloth.
The Stainless steel wire mesh and screen mesh is reeds with imports of wire mesh for weave. To make sure the hole or mesh have uniform size, smooth and beautiful mesh screen for suitable to filter industrial.
The Material Have SS 304, 304L, 316, 316L.
The Weaving Type: Plain Weave, Twill Weave,
The Woven Mesh Width: 0.5m-1.5m
Plain Woven: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter. Characteristics: Square aperture, high flow through, relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration
Twill Weave: Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft)is mostly the same.
The stainless steel woven wire mesh its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.
|
Stainless Steel Woven Wire Mesh (Plain Weave) |
|
mesh/inch |
wire diameter(mm) |
Aperture (mm) |
|
14mesh |
0.45 |
1.362 |
|
16mesh |
0.4 |
1.188 |
|
18mesh |
0.35 |
1.06 |
|
20mesh |
0.3 |
0.97 |
|
30mesh |
0.25 |
0.596 |
|
40mesh |
0.21 |
0.425 |
|
60mesh |
0.15 |
0.273 |
|
90mesh |
0.11 |
0.172 |
|
Stainless steel woven wire mesh (twill weave ) |
|
Mesh Count (Warp x Weft) |
Wire Dia (mm) |
Aperture (mm) |
Micron(Rating) |
|
100 x100 |
0.1250 |
0.1295 |
130 |
|
120 x120 |
0.0939 |
0.1168 |
117 |
|
165x 165 |
0.0482 |
0.1041 |
104 |
|
200 x 200 |
0.0584 |
0.0685 |
68 |
|
250 x 250 |
0.0533 |
0.0482 |
48 |
|
300 x 300 |
0.0355 |
0.0482 |
48 |
|
300 x300 |
0.0400 |
0.0431 |
45 |
|
325 x 325 |
0.0355 |
0.0406 |
41 |
|
350 x 350 |
0.0304 |
0.0431 |
43 |
|
400 x 400 |
0.0304 |
0.0330 |
33 |
|
500 x 500 |
0.0254 |
0.0253 |
25 |
Anping Xingmao Metal Wire Mesh Co., Ltd. is located at Anping County, Hebei Province, the famous Wire Mesh Town in China. XingMao is a one of the 5 biggest wiremesh companys in China, has advanced technology and equipment of production, test and inspection. The products are all inspected by our professional inspection team. We can design and develop different wire mesh products upon customers requirements or drawings.
Our main products include:
Gabion basket,
Gabion box,
Security Fence,
Garrison Fencing,
Perforated metal sheet,
Stainless steel wire mesh,
Galvanized iron wire,
Black annealed wire,
Alumium alloy wire mesh,
Brass wire mesh,
Copper mesh etc,
Which are widely applied in petroleum, chemical, food, construction and other industries.
Our export amount is up to 65, 000.00 dollars averagely per month. We mainly export to Europe, America, South Amercia, East and south Asia, MID east district, and some parts Africa countrys. With a dozen of years, we have entered into steady business with hundreds of customers at home and abroad.
General Manager, on behalf of all employees of Xing Mao, warmly welcomes you contact us for further information! We trust we can cooperate well based on mutual benefit and trust!
