Product Specifications
Prod Model: |
ADS109 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Stype: |
01 , 202 , 301 , 302 , 303 , 304 , 304L , 310S , 3 |
Material: |
SUS316L |
Hole Shape: |
Square |
Application: |
Fence Mesh |
Type: |
Stainless Steel Plain Wire Mesh |
Material Type: |
Stainless Steel Wire |
Weave Technique: |
Plain Weave |
Wire Mesh Width: |
1m |
Technique: |
Woven |
Nickels: |
2% |
Certification: |
SGS |
Product Description

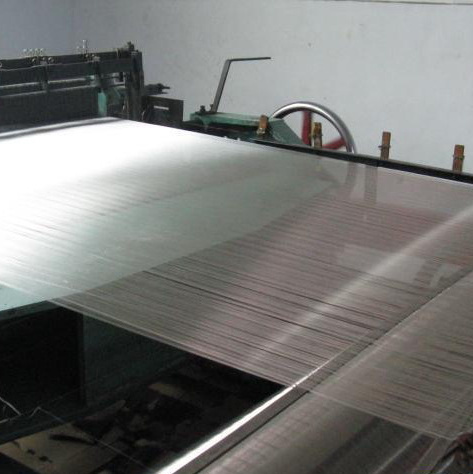

Stainless Steel Wire Mesh ,Stainless Wire Mesh, Steel Wire Mesh
Material: S. S 304, 304L, 316, 316L, 430, 904 and 904L. Etc.
Characteristics: Made by stretching and drawing through moulds, the product is characterized by acid-alkali resistance, high tensile strength, intercrystalline corrosion resistance, smooth surface and bright color.
Performance: Acid resistance, alkaline resistance, high temperature resistance, strong tension, and good abrasion resistance.
Weaving type: Plain weave, twill weave, Dutch weave (plain), Dutch weave (twill).
Usage: Used for screening and filtering in the acid or alkaline environment, and used as a mud mesh in petroleum industry, as a screen mesh in chemical industry, and as a pickling mesh in electroplating industry.
Packing: Wrapped with moister-barrier paper, then in wooden cases.
Stainless Steel Woven Wire Mesh(Dutch Weave) |
Mesh | Wire Dia. (MM) | Material(AISI) |
12meshX64mesh | 0.58/0.40 | 304 or 316 |
24meshX110mesh | 0.36/0.25 | 304 or 316 |
14meshX88mesh | 0.50/0.33 | 304 or 316 |
30meshX150mesh | 0.18/0.14 | 304 or 316 |
40meshX200mesh | 0.14/0.11 | 304 or 316 |
50meshX250mesh | 0.10/0.071 | 304 or 316 |
80meshX700mesh | 0.06/0.05 | 304 or 316 |
165meshX800mesh | 0.071/0.040 | 304 or 316 |
165meshX1400mesh | 0.05/0.032 | 304 or 316 |
200meshX1800mesh | 0.05/0.03 | 304 or 316 |
325meshX2300mesh | 0.030/0.025 | 316L |
400meshX2800mesh | 0.030/0.02 | 316L |
Shenzhou AnDeSen Wire Fencing Co., Ltd is a big wire mesh manufacturer located in Shenzhou of Hebei Province. AnDeSen is specialized in wire drawing, galvanizing and wire mesh weaving. With over 200 sets of production machines, first-class technology, excellent management system and R & D capability, we have won trust and praises from many customers.
AnDeSen mainly produces All kinds of galvanized wire, soft annealed wire, PVC coated wire, Welded Wire Mesh, Hexagonal Wire Mesh, Stainless Steel Wire Mesh, Razor Barbed Wire, Fence, Chain Link Fence, Window Creening, Square Wire Mesh, common nails, roofing nails as well as other wire processed products for a wide applications in petroleum, mine, construction and other industries. Our products are well sold in China and exported far to the USA, Europe, Japan, the Middle-East and Southeast Asian countries.
We try to build our own brand and reputation with choice products, and have set up a complete system from raw material purchasing, production, inspection, packing and delivery to after-sales services. We sincerely hope to build good business relationship with you on the basis of mutual be
