Standalone Access Control RFID Reader Device S600mf
Product Specifications
| Prod Model: |
S600MF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Card Capacity: |
30, 000 |
| Logs Capacity: |
50, 000 |
| Communications: |
TCP/IP, RS232/485 |
| Display: |
B/W LCD 128*64 with 4 Lines Character; |
| Customized Functions: |
Webserver; Printer Output, External Bell Connectio |
| Type: |
Card |
| Usage: |
Attendance Machine |
Product Description
Description

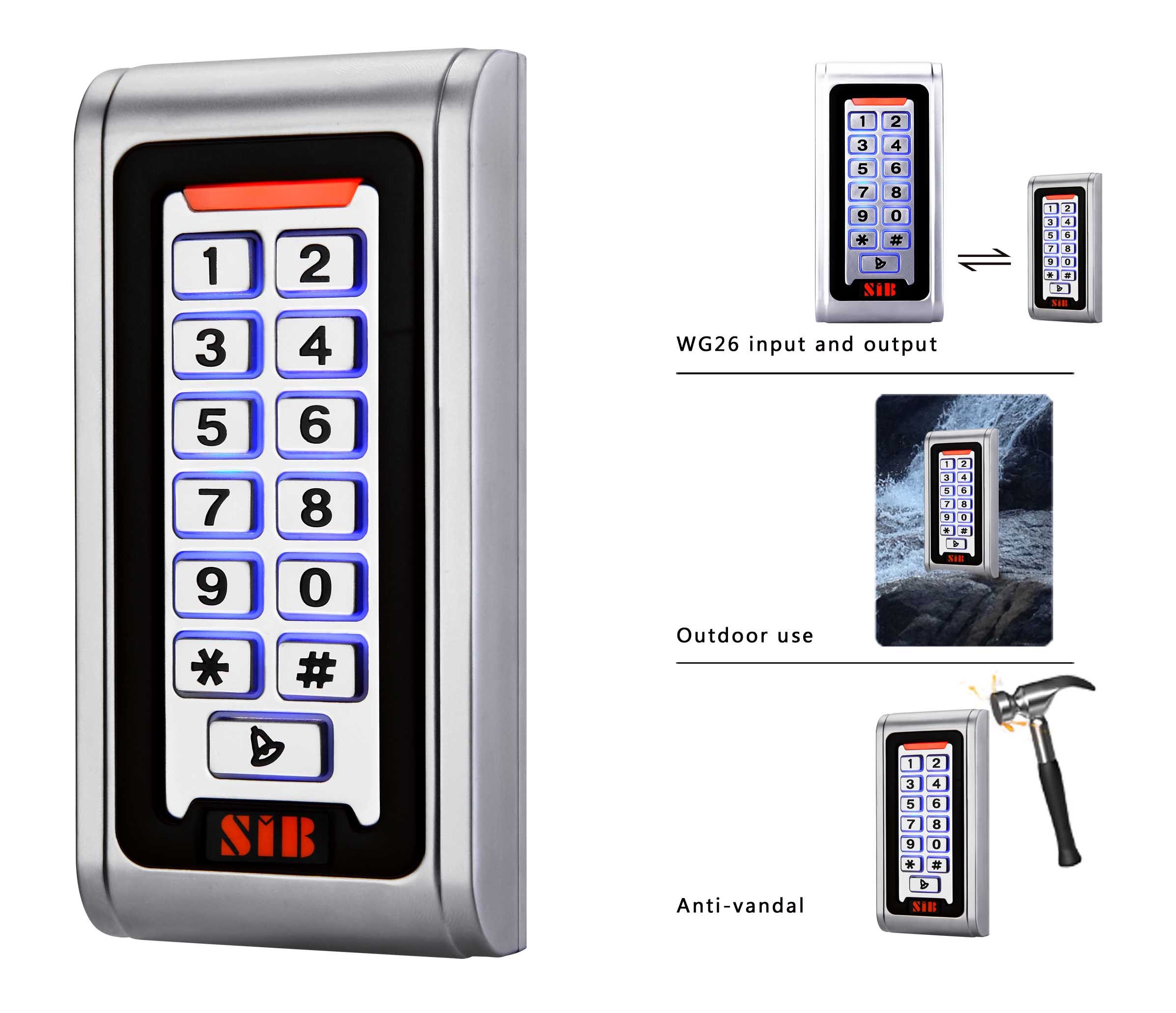

The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader.
It is suitable for mounting either indoor or outdoor in harsh environments.
This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option.
The inbuilt card reader supports 125KHZ EM cards,13.56MHz Mifare cards.
The unit isan ideal choice for door access not only for small shops and domestic households but also for commercial
and industrial applications such as factories, warehouses, laboratories, banks and prisons.Features
- Waterproof, conforms to IP68
- Strong Zinc Alloy Electroplated anti-vandal case
- Full programming from the keypad
- 2000 uses, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 input for connection to external reader
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time, Alarm time, Door Open time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in light dependent resistor (LDR) for anti tamper
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
|
Operating Voltage |
DC 12V±10% |
|
User Capacity |
2000 |
|
Card Reading Distance |
3-6 cm |
|
Active Current |
<60mA |
|
Idle Current |
25±5 mA |
|
Lock Output Load |
Max 3A |
|
Alarm Output Load |
Max 20A |
|
Operating Temperature |
-45~60 degree centigrade |
|
Operating Humidity |
10%- 90% RH |
|
Waterproof |
Conforms to IP68 |
|
Adjustable Door Relay time |
0 -99 seconds |
|
Adjustable Alarm Time |
0- 3 minutes |
|
Wiegand Interface |
Wiegand 26 bit |
|
Wiring Connections |
Electric Lock, Exit Button, External Alarm,External reader |
SIB Technology Co., Ltd is a professional manufacturer of access control, having our own factory. All access control products are designed, moulded, and produced by ourselves. We always provide customers high quality product with 2 years warranty and lifetime maintenance.
SIB mainly focus on stand alone access control and RFID Reader. Our products are very popular with patent and CE certification, distributed to over 20 countries and regions including Europe, Korea, Hong Kong, Southeast Asia, the Middle East, and the United States.
We always take "providing best product and service" as the enterprise objective. Don't seek high price, but high quality. This makes SIB obtain a long-term cooperation with our clients.
Nowdays, SIB Technology Co., Ltd is a dynamic and innovative enterprise, with a excellent R&D team. We are developing more competitive products to meet customers's demand. We believe SIB will be the leader in access control field in the future.
Thank you for your support. And welcome to our factory to have business!
