Dongguan Jiahao Clock Manufacturing Co., Ltd >> Standard Clock Movement with I Shaft

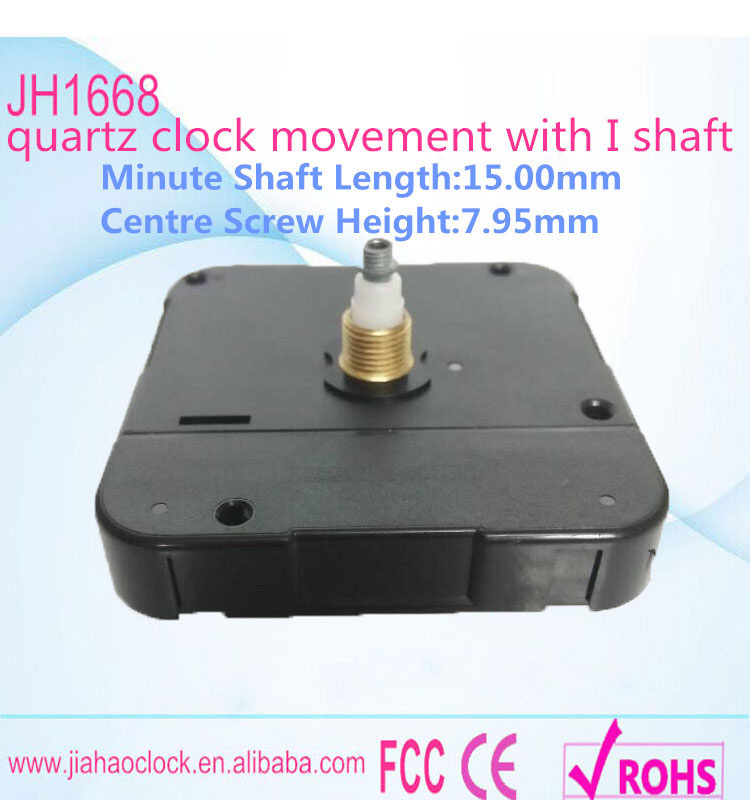

Standard Clock Movement with I Shaft

Name: Standard Clock Movement with I Shaft
Brand: china-manufacturer-directory.com
SKU: 699999102
Availability: InStock
Rating: 4.4 (46 reviews)

Supplier:	Dongguan Jiahao Clock Manufacturing Co., Ltd
Price:	US $ 0.49-1.0/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JH1668HTSA-15
Markets:	Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Minute Shaft Length:	15.00mm
Hand Shaft Length:	11.90mm
Centre Screw Height:	7.95mm
Size(Mm):	565616.3
Carton Size(Cm):	403638.5
Battery Size:	AA Battery
Battery Life:	2 Years
Warranty:	2 Years
Payment:	T/T , Western Union
Certificate:	CE RoHS FCC
Applications:	Wall Clock
Type:	Clock Movement
Material:	Plastic
Display Methods:	Analog
Style:	Antique

Product Description

More details about this model:

Type	Standard High Torque I shaft quartz clock movement for wall clock
Model	JH1668HTSA-15
Minute shaft length	15mm
Centre screw height	7.95mm
Material	ABS
Size(mm)	565616.3
Accessories	hexagon nut, rubber pad, metal washer
Packing	500pcs/ctn with foam tray
Carton size(cm)	403638.5
Delivery time	14 days after receiving order
MOQ	500pcs
Warranty	2years

Different Model:

Calibre	Minute Shaft Length	Hand Shaft Length	Centre Screw Height	Dial Fixing Mode
Calibre	Minute Shaft Length	Hand Shaft Length	Centre Screw Height	Centre Screw	Snap in
JH1668HTSA-13	13mm	9.90mm	6.05mm	*
JH1668HTSA-14.5	14.5mm	10.95mm	6.95mm	*
JH1668HTSA-15	15mm	11.90mm	7.95mm	*
JH1668HTSA-17	17mm	13.90mm	9.75mm	*
JH1668HTSA-20	20mm	16.90mm	12.45mm	*
JH1668HTSA-23	23mm	19.90mm	15.65mm	*

Technical Parameter:

Crystal Oscillator	32.768KHz
Operating Voltage	1.3V to 1.7V
Operating Temperature Range	-10°C to 50°C
Torque At Second Hand	Over 280 uNm
Current Consumption	Less than 130uA at 1.5V DC
Time Keeping Accuracy	+/-sec/day at 1.5V DC 25°
Battery Life	Approx 10 months
Warranty	2 years

Our company are specializing in producing standard quartz clock movements step movements, switch movements, sweep movements, alarm movements and pendulum movements clock hands, Thermometer etc. If you are interested in any of our products, please don't hesitate to contact with us. Your inquires are always welcome. We sincerely look forward to building up good relationship with you. Believe us and develop together. You ar welcome.
