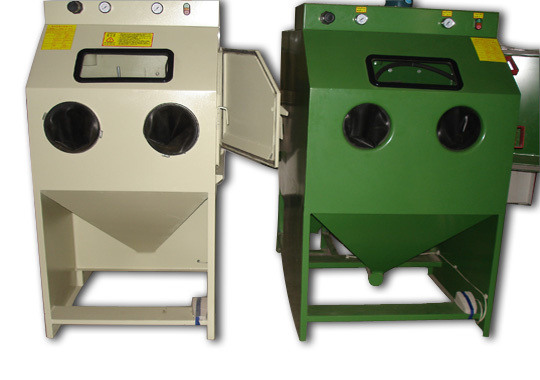

Standard dry sand blasting machine
TB6050A TB7660A TB9060A TB9080 TB1212A
Features
A. This machine features novel design, simple structure, reliable performance, easy operation, high efficiency and low consumption of power.
B. Major parts and components in this machine are made with high-quality materials. They feature reliable performances and long service lives.
Function
This machine can do cleaning work on forgings, castings, welded components, heat-treated components and rough surfaces on machines components. It has the function of removing scales, slugs and burrs. It is good for pretreatment before painting, coating and electric plating.
This machine is also good for enhancing bright-finish surfaces.
This machine is fit for single-piece or batch production of small or medium sized products.
Specifications
Overall Dimensions: (H*W*L mm)
TB6050A: 960*650*1520
Tb7660A: 1050*760*1580
TB9080A: 1050*800*1580
Tb9060A: 1050*900*1580
Tb1010A: 1000*1450*1800
Cabin Dimensions: (H*W*L mm)
TB6050A: 600*500*520
Tb7660A: 760*600*580
TB9080A: 900*800*580
Tb9060A: 900*600*580
Tb1212A: 1000*1000*660
Power supply: 220V(380V). 50Hz
Lighting: Flood light incandescent lamp 220V, 13W
Separator motor: 220V, 50Hz, 0.75KW
Air from separator: 8.5m3/min
Compressed air supply: Dry and clean compressed air with pressure at 2.8-7bar(kg/cm2) and flow of 0.5-1.1m3/min
Dust removal: Bag-type dust collector, powder clearance by compressed air vibration
Net weight: TB6050A: 180kg TB7660A: 200kg
TB9060A: 230kg
|
Model |
TB6050A |
TB7660A |
TB9080A |
TB9060A |
TB1010A |
TB1212A |
|
Overall Dim(H*W*L mm) |
960*650* 1520 |
1050*760* 1580 |
1050*800* 1580 |
1080*900* 1580 |
1000*1450* 1800 |
1620*1250* 2000 |
|
Cabin Dim(H*W*L mm) |
600*500* 520 |
760*600* 580 |
900*800* 580 |
900*600* 580 |
1000*1000* 800 |
1000*1000* 800 |
|
Power supply |
220V(380V) 50HZ |
220V(380V) 50HZ |
220V(380V) 50HZ |
220V(380V) 50HZ |
220V(380V) 50HZ |
220V(380V) 50HZ |
|
Lighting |
220V 13W |
220V 13W |
220V 13W |
220V 13W |
220V 13W |
220V 13W |
|
Separator motor |
220V 50HZ 0.75KW |
220V 50HZ 0.75KW |
220V 50HZ 0.75KW |
220V 50HZ 0.75KW |
220V 50HZ 0.75KW |
220V 50HZ 0.75KW |
|
Draft from separator |
8.5m 3 /min |
8.5m 3 /min |
8.5m 3 /min |
8.5m 3 /min |
8.5m 3 /min |
8.5m 3 /min |
Hangzhou Tongbao Machinery Factory (TBBLAST), established in2003, located in Hangzhou China. Is specialized in sand blasting machine, shot blasting machine, and vibratory polishing machine. Has developed to be a leading manufacturer in the surface treatment and finishing industry.
Our company has passed ISO9001 quality system certification, relying on high technologies and with quality products and good after service. It has created god economic benefit and social bebefit and our products have been widely sold to many domestic and overseas countries We offer a complete range of surface preparation products, including sandblast nozzles & holders, hoses & couplings, helmets, valves and hundreds kinds of related accessories and blasting equipment.
Our company is dedicated to the success of every customer worldwide by our quality products and services. Our experienced engineers can quickly design and customize products according to customers' requirements.
Freely processing according your sample, Delivery time is short, Contact us with your requirements for competitively priced products or if you are interested in joining us as a distributor.
