Standard Ductile Iron 22.5 Degree Elbow with FM/UL Approval

Name: Standard Ductile Iron 22.5 Degree Elbow with FM/UL Approval
Brand: china-manufacturer-directory.com
SKU: 706680032
Availability: InStock
Rating: 4.3 (132 reviews)

Supplier:	Weifang Yinuo Casting Co., Ltd.
Price:	US $ 1/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Southeast Asia,Africa,Mid East
50:	60.3 2.375mm/in
Shape:	Equal
Angle:	90 Degree
Material:	Iron
Technics:	Casting
Certification:	GB
Color:	Red

Product Description

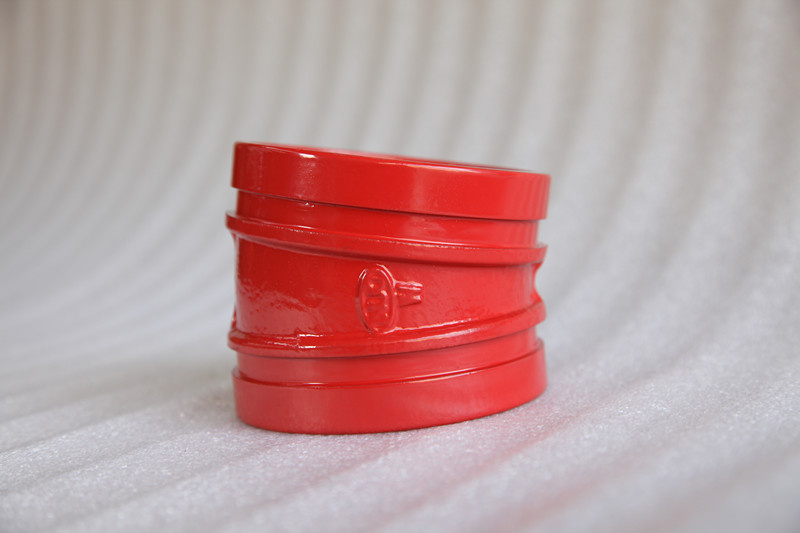

22.5° Elbow
Material: Ductile Iron (ASTM A536 Grade 65-45-12)
Gasket Material: EPDM/ Silicon Rubber/NBR
Surface Treatment: Epoxy-(Red/Blue/White), Painted-(Orange/Red), Galvanized
Size: 1"-12"
Working Pressure:300 psi
Certification: UL, FM, ISO 9001:2008
Connect Type: Grooved & Thread
Payment term: T/T, LC
Package: Cartons with pallet/ Wooden case

:
Application: As one of the most popular fittings in fire fighting systems, the grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, oil&gas pipeline, mine piping and ordinary piping delivery. Yinuo is spreading all over the world and winning the appreciations from users at home and abroad.

Size	Pipe O.D mm/in	22.5°Elbow
		22.5°Elbow
		L
DN in	mm in	mm in
25 1	33.7 1.327	41 1.61
32 1¼	42.4 1.669	45 1.772
40 1½	48.3 1.900	45 1.772
50 2	60.3 2.375	51 2.
125 5.5OD	139.7 5.500	73 2.874
150 6.5OD	165.1 6.500	79 3.11
150 6	168.3 6.625	79 3.11
200 8	219.1 8.625	98 3.858
250 10	273.0 10.750	111 4.37
300 12	323.9 12.750	124 4.88

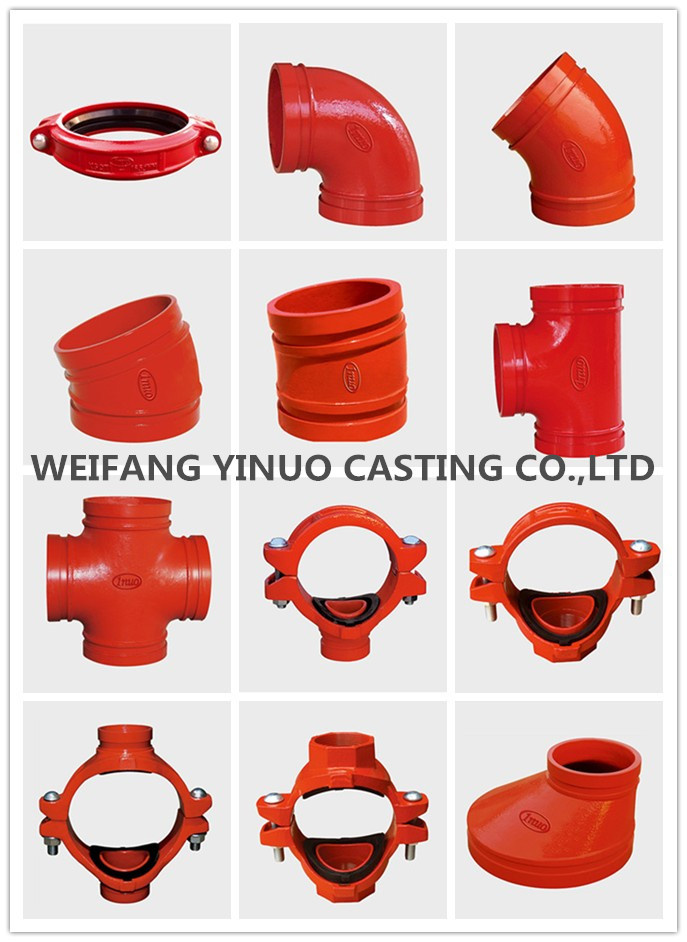

Our company is specialized in grooved fittings, valves and pipe processing of the Corrosion prevention. We make great contributions for improving the qualities and reducing the cost of the project in field of feed water, fire protection, mineral, electrical power. All grooved fittings & valves use the modern casting tooling of electric furnace smelting, auto-casting, vermicularizing control. The all machining use the CNC machine.
