Foshan Lixin Steel Material Co., Ltd. >> Steel Frame Factory Including Sandwich Panel Cladding

Steel Frame Factory Including Sandwich Panel Cladding

Name: Steel Frame Factory Including Sandwich Panel Cladding
Brand: china-manufacturer-directory.com
SKU: 703858355
Availability: InStock
Rating: 4.7 (116 reviews)

Supplier:	Foshan Lixin Steel Material Co., Ltd.
Price:	US $ 35-120/Square Meter
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	light steel structure
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Crane:	with or Without (1 to 50 Tons)
Raw Materials:	Q235/Q345
Roof And Wall Panel:	EPS/Rock Wool/Polyurethane/MGO/Cement Foam Panel
Life Time Of Steel Frame:	More Than 50 Years
Purlin:	C/Z Section Steel,Q195/Q235/Q345,Galvanized/Paint
Packing Method:	Flat Pack,Open Top Container,by Steel Skid,etc.
Type:	H-Section Steel
Application:	Steel Structure Bridge
Standard:	SGS
Forming:	Hot-Rolled Steel

Product Description

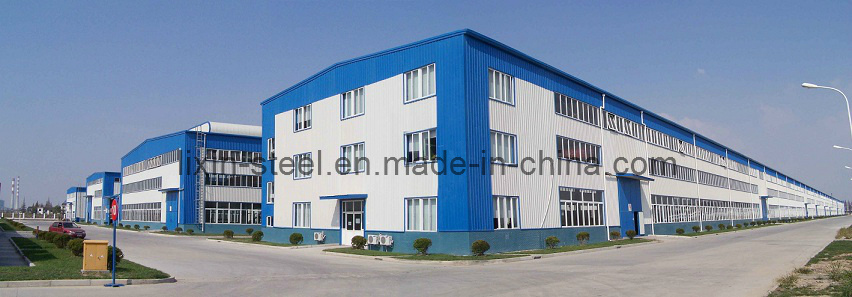

Each building is three storeise, building area total 100, 000 square meters.

Steel structure project is the third generation construction. It combines H section and c/z section into the frame with the profiled steel sheet or sandwich panel as the wal and roof. The traditional reinforced concrete construction has aready been taken place by this kind of construction in developed contries. It has many excellent charateristics such as light weight, larger span, less marerial, low cost, less foundation, short building cycle, safe, beautiful, ect. It is widely used in single industrial factory, warehouse, business construction, office, parking lots, residence and so on.

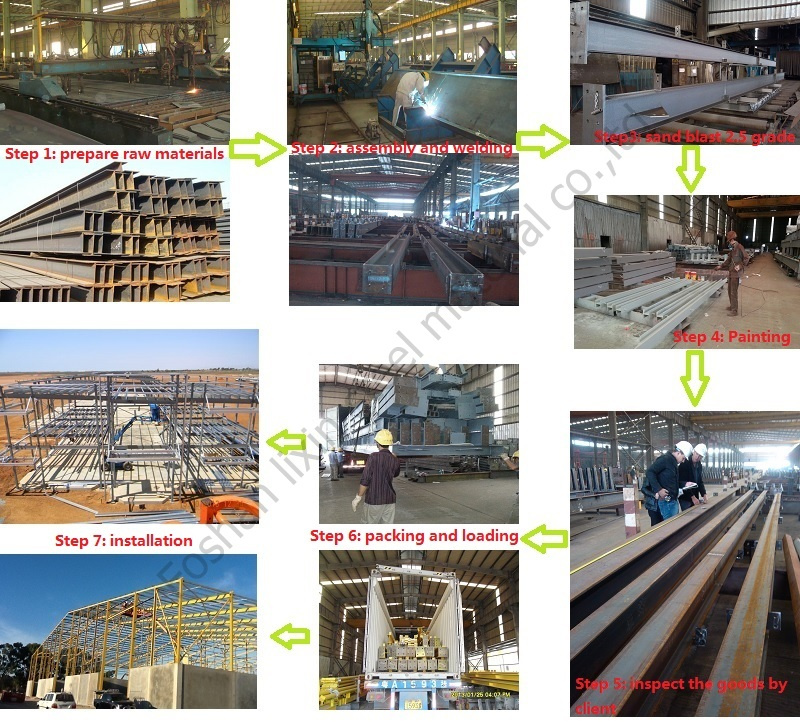

STEEL STRUCTURE MEMBERS PRODUCTION (Fabrication) PROCESS :

1. Prepair raw materials : cut steel plate or use internation size H section steel and angle steel,round tube,round steel,square tube etc.;

2. Assembly and welding: our welders will follow the drawings to assembe the steel members and weld them together as a entire beam/column/brace and so on; (Our quality inspector will check the steel pieces after finish welding,this is the first quality check)

3. Sand blast : After finish welding and polishiing,our sand blast effect can reach internation 2.5 high grade,very good for resist rust; (Secondary quality check)

4.Paint : Within 2 hours after sand blast,all the steel members should be paint. Client can choose any color and any brand of paint. (The third quality check)

5. Inspect the goods by client : After we finish a part of fabrication work,we will invite clients to check the goods before we pack the steel frame.

6.Packing and loading : If clients require us to load the goods by close containers,we will pack the steel structure members one by one on the steel skid and tie the whole steel package well. (The fourth quality check )

Please check the details drawings as follow :

Our strong points(advantages) :

1. Sand blast: The sand blast effect reach 2.5 high grade,many countries with high standard requirements accept 2.5 grade.

2. Welding:        Our welders are full of experiences,professional in butt weld,fillet weld,intermittent welding etc.The welding lines are straight,orderly and nice.

3. Painting:       We use hight pressure airless spraying machine for painting,both the color and the thickness of paint are well-proportioned.

4. Packing: (1) Open top container(advantage:easy to load the steel;disadvantage:high shipping cost,aleak and few quantity);
                        (2) Closed container with steel skid (advantage:save shipping cost,all members be packed together and reduce friction,the surface of steel members will be much better;save labor cost to unload the steel members).

Economic type (about US $30-$50/m2)	Mian steel frame	Span 5-8m (unrestricted width and length),less than 7 meters high,column and beam:square tube and C purlin (Q195/Q235)
	Cladding material	Single layer steel sheet/EPS panel/brick wall(supplied by client at site)
	Door	sandwich panel silding door /single door
	Window	PVC window
	Usuage	Simple workshop,warehouse,garage,shading light shed,interim steel building etc.
	Suitable area	Africa,Southeast Asia,Middle East,UAE,Australia and other countries with low wind speed and no snow.
Standard type (about US $45-$100/m2)	Mian steel frame	Span 10-30 m (unrestricted width and length),less than 20 meters high (column and beam:H section steel or welded by steel plate)
	Roof and wall panel	EPS panel/glass wood/rock wool/polyurethane/Mgo/concrete panel/brick wall(supplied by client at site)
	Door	silding door /single door/roller shutter door
	Window	PVC / Aluminium window
	Usuage	workshop,warehouse,garage,shading light shed,shopping mall,office building,showroom,simple hotel etc.
	Suitable area	Africa,Southeast Asia,Middle East,UAE,Australia,South America,Canada etc.
	Crane	With or without (1 - 50 tons)
Lage span and high strength type (about US $60-$150/m2)	Mian steel frame	Span 30-80 m (unrestricted width and length),less than 12 meters high (column and beam: welded by steel plate Q345)
	Roof and wall panel	EPS panel/glass wood/rock wool/polyurethane/Mgo/concrete panel/brick wall(supplied by client at site)
	Door	silding door /single door/roller shutter door
	Window	PVC / Aluminium window
	Usuage	workshop,warehouse,garage,shading light shed,shopping mall,office building,showroom,simple hotel etc.
	Suitable area	Africa,Southeast Asia,Middle East,UAE,Australia,South America,Canada etc.
	Crane	With or without (1 - 50 tons)
Fireproof type ( about US $60-$150/m2)	Mian steel frame	Unrestricted width,length,height and span
	Roof and wall panel	Rock wool panel(50mm to 150mm thickness,density:60kg/m3 - 150kg/m3) or rock wool mgo panel
	Door	Fire proof door
	Usuage	workshop,warehouse,garage,shopping mall,office building,showroom,hotel etc.
	Suitable area	Africa,Southeast Asia,Middle East,UAE,Australia,South America,Canada and other countries with high requirement for firepooof .
	Crane	With or without (1 - 50 tons)
	Paint	Fireproof paint
Heat insulation type (about US $60-$150/m2)	Mian steel frame	Unrestricted width,length,height and span
	Roof and wall panel	Polyurethane panel(50mm to 200mm thickness,density: 35kg/m3 - 45kg/m3) or rock wool mgo panel
	Door	Polyurethane door or hear insulation door
	Usuage	coolroom,fresh-keeping cold storage,workshop,warehouse,garage,shopping mall,office building,showroom,hotel etc.
	Suitable area	Russia,Canada,Northern Europe and other countries with low temperature and high requirement for heat insulation .
	Crane	With or without (1 - 50 tons)
