Product Specifications
| Prod Model: |
FW-WH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Qingdao China(Mainland) |
| Brand: |
Xgz |
| Type: |
Prefab Steel Structure Warehouse |
| Dimensions: |
as Your Requirement |
| Skylights: |
Available |
| Doors And Windows: |
Aluminum Alloy |
| Drawing: |
CAD, 3D, Sketchup |
| Material: |
Steel Structure |
| Usage: |
Workshop |
| Certification: |
BV |
| Customized: |
Customized |
Product Description
Production Description

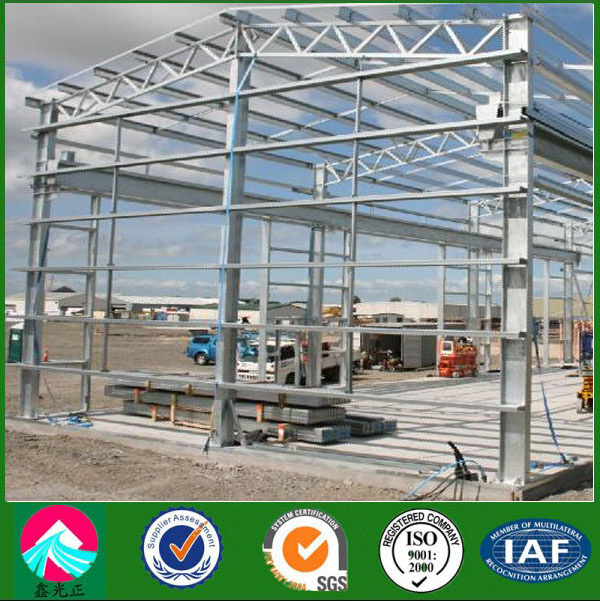

Steel Workshop or Warehouse is typical and popular for its fast and flexible construction.
The main fabrication process is cutting, drilling and welding, using various section steel,
steel plate, steel tube, etc. to achieve design drawing shapes.
We will be highly appreciate if you offer us the information below
1. Dimension: Length, width, height, eave height, roof pitch, etc.
2. Doors and windows: Dimension, quantity, where to put them.
3. Local climate: Wind speed, snow load, rain, earthquake, etc.
4. Thermal insulation material: Sandwich panel or steel sheet.
5. Crane (if you have): crane span, crane type, crane quantity, crane lift height, max lift
capacity, max wheel pressure and min wheel pressure.
Technical Details
H steel warehouse technical specification |
| No. | Classification | Name | Specification |
| 1 | Parts | Length | Any length available |
| 2 | | Width | Single span no more than 30000mm |
| 3 | | Height | Transported in container,ridge is no more than12000mm |
| 4 | | Upright post | H steel structure composed of jointing steel board,Q345or Q235. |
| 5 | | Roof girder | H steel structure composed of jointing steel board,Q345or Q235. |
| 6 | | Roofing purline | C160steel,T=2.5MM,Q235/Q195 |
| 7 | | Wall girder | C160steel,T=2.5MM,Q235/Q195 |
| 8 | | Wall panel | Colored sandwich panel,colored steel contour plate |
| 9 | | Roofing panel | Colored sandwich panel,colored steel contour plate |
| 10 | | Door | Colored steel sandwich panel double acting door/single door/double door |
| 11 | | Windows | Plastic steel windows/Colored steel windows (push and pull,casement,top-hinged window) |
| 12 | Optional accessories | Ceiling | Mineral cotton acoustic board sprung roof,PVC sprung roof,aluminum gusset sprung roof. |
| 13 | | Water | Provided plan, design and technical service. |
| 14 | | Electricity | Provided plan, design and technical service. |
| 15 | Structure | Live load on roof | In 120kg/Sqm (Color steel panel surrounded) |
| 16 | | Wind resistance grade | 12 |
| 17 | | Earthquake-resistance | 8degree |
| 18 | | Structure usage | 50years |
Packing And Shippment
The materials will be loaded in a 40 HT or 40 OT.
