Product Specifications
| Prod Model: |
LS-SC-056 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Frame: |
Steel Frame |
| Size: |
Customer Request |
| Material: |
Steel Structure |
| Certification: |
ISO |
| Usage: |
House |
Product Description
Welcome come to visit www.lstianjun.com for more info.Size: As customer request
Material 50mm Polystyrene( EPS ) sandwich panel
Door: Electric door
Light transfer zone: Fiber Reinforced Plastic (FRP) daylight bands
Descriptions:12 year warranty on steel structure, standad prefabricated house, container house, SIP villa house,
Modular house, etc. Precision design meeting or exceeding industry standards.
Design Common Norms
"Steel Design Code" (GB50017-2003)
"Cold-formed steel structure technical specifications" (GB50018-2002)
"Construction Quality Acceptance of Steel" (GB50205-2001)
"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)
"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)
Component and Characteristics of the Construction
The main frame (columns and beams) is made of H section steel, steel grade is Q235 or Q345
The envelop construction net is made of cold form C-style purlin
The wall and roof are made of color steel board or sandwich panels
Doors and windows can be designed at anywhere suit to different requests, and can sliding type or rolling up type
Ventilation could be by window or ventilator
The light transfer zone could be added on the wall or roof with material sun glass board.
Connection Method
The columns are connected with the foundation by pre-embedding anchor bolt
The beams and columns, beams and beams are connected with high intensity bolts
Construction Advantage
Could be designed according to different purpose and environment condition
Long life span, could be more than 50 years
Quick and easy install work and the more economic friendly
Could be moved and recycle
Strong seismic and wind resistance

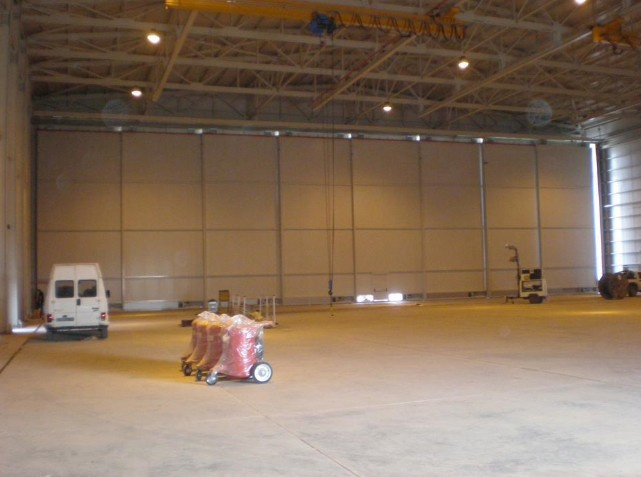

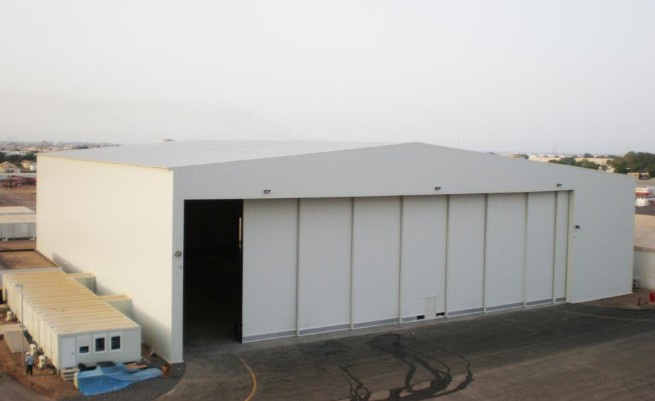

Application:Widely used as industry factory building, warehouse, workshop, office buildings, supermarkets, logistic,
Showrooms, hangar, shelter, etc
In 2000, the Jiaonan Government decided to transfer Lingshan Shipbuilding Company into private enterprise. At the same year, Lingshan Shipbuilding Company combined by Korea Hyundai Shipbuilding Co., Ltd.
And we became an independent private company with the name Lingshan Steel Structure Co., Ltd. The main products stay the same.
In 2003, we join in the China Steel Construction Society.
In 2005, we became a director of Shandong Steel Construction Inspection and Design Society.
In 2006, the factory expanded the produce ability to 3000 ton per month.
In 2009, we get the China classification society certification.
In 2012, we get the produce license for pressure vessel.
In order to serve the import and export business, another branch named Tianjun Steel Structure Engineering Co., Ltd established.
