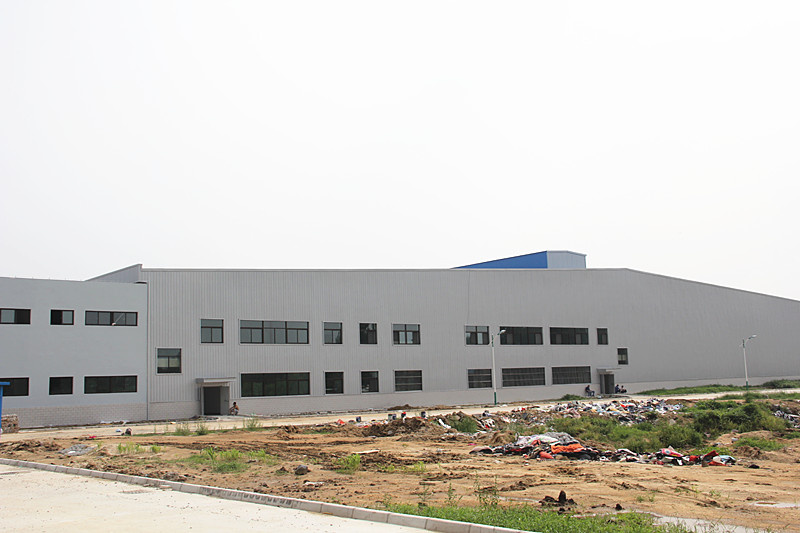

Steel Structure Buildings for Processing Workshop

Product Specifications

Prod Model:	HSS0011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Main Steel Frame:	Steel Structure H Column
Size:	According to Customer's Requirememt
Roof And Wall Material:	Color Steel Sheet or Sandwich Panel
Grade:	Q235B /Q345b
Connect:	Bolt
Window:	Aluminium Alloy or PVC Sliding Window
Door:	Sliding Door or Roll up
Delivery Port:	Qingdao Port
Delivery Date:	About 35 Days
Type:	Light Section Steel
Standard:	DIN
Trademark:	Carbon Structural Steel
Forming:	Hot-Rolled Steel
Connection Form:	Bolt Connection
Member:	Steeltruss
Type Of Steel For Building Structure:	H-Section Steel
Carbon Structural Steel:	Q235
Residential Wall Structure:	Wall Support
Application:	Steel Structure Bridge

Product Description

Steel Structure buildings for workshop
Steel structure building is widely used as workshop, warehouse, factory, prefabricated house, hotel, church, garage, etc. It is durable, economic and environmentally friendly.

Steel Structure Workshop:

1) Different sizes:
MOQ is 100m2, width X length X eave height.
2) Different types:
Single slope;
Double slope;
Sing span;
Double-span;
Multi-span;
Single floor, double floors.

3) Different Bases:
Cement and steel foundation bolts.
4) Different Columns and Beams:
Material Q345(S355JR) or Q235(S235JR) steel, all bolt connections, Straight cross-section or Variable cross-section.
5) Different bracings:
X-type or V-type or other type bracing made from angle, round pipe, etc.
6) Different Purlins:
C or Z type: Size from C120~C320, Z100~Z200.
7) Different Roof and Wall Panel:
Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide) or sandwich panel with EPS, ROCK WOOL, PU insulation thickness around 50mm~100mm.
8) All accessories:
Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc.
9) Surface:
Two lays of Anti-Rust Paint.
10) Packing:
Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ.


You ONLY need you to provide us with the following information:

Design Parameters:
1) Live load on roof (KN/M2);
2) Wind speed (KM/H);
3) Snow load (KG/M2) - If Applicable;
4) Earthquake load - If Applicable;
5) Style of Doors and Windows;
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure;
7) Size: Width X length X eave height, roof slope;
8) Or your idea!
BUT maybe you are unsure about what type or what needs you have regarding you're warehouse/workshop, or this project is your first one. Don't worry, we will teach you to choose the right style and the finest design within your budget.

Generally speaking, our Steel structure warehouse/workshop are categorized as below:

(1) Simple Steel Structure Workshop
Main structure	Single span: L -shorter than 18m, H -lower than 6m
Maintenance system	Roof	Colored steel sheet with 50mm glass wool insulation
	Wall	Colored steel sheet
	Door	Simple steel rolling shutter (within 10m2)
	Window	Very few
Usage	Warehouse, workshop
Standard and suitable market	Africa, Middle-East, South America (no snow, wind load below 0.4kn/m2)

(2) Standard Steel Structure Workshop
Main structure	Single span: L -shorter than 24m, H -lower than 8m
Maintenance system	Roof	Colored steel sheet with 50mm glass wool insulation
	Wall	Colored steel sheet or 50mm EPS sandwich board
	Door	Wind resistance rolling door(within 15m2)
	Window	Alu. Alloy (can use with skylight)
Usage	Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market	Snow loading below 0.5kn,wind loading below 0.5kn/m2
