Product Specifications
| Prod Model: |
KXD-SSB54 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| MOQ: |
500square Metre |
| Size: |
According to The Need of Design |
| Wall And Roof Sandwich Panel: |
EPS/Rock Wool/Glass Wool/PU |
| Main Steel Frame: |
H Steel, Z or C Purlin |
| Connect Method: |
Welding or Bolt |
| Type: |
H-Section Steel |
| Standard: |
GB |
| Trademark: |
Low-alloy High-tensile Structural Steel |
| Forming: |
Hot-Rolled Steel |
| Connection Form: |
Bolt Connection |
| Member: |
Steel Column |
| Type Of Steel For Building Structure: |
High-Strength Steel |
| Carbon Structural Steel: |
Q235 |
| Residential Wall Structure: |
Wall Support |
| Application: |
Steel Structure Bridge |
Product Description

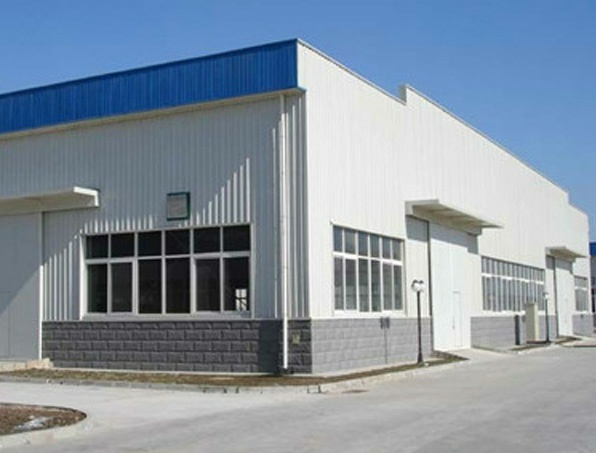

Steel Structure workshop/Warehouse Building
Specifications
Steel structure building is widely used as warehouse, factory, hotel, church, garage etc. Is durable, economic and environment
1) Different sizes:
MOQ is 100m2, width X length X eave height
2) Different types:
Single slope
Double slope
Sing span
Double-span
Multi-span
Single floor, double floors
3) Different Bases:
Cement and steel foundation bolts
4) Different Columns and Beams:
Material Q345(S355JR)or Q235(S235JR) steel, all bolt connections, Straight cross-section or Variable cross-section
5) Different bracings:
X-type or V-type or other type bracing made from angle, round pipe, etc
) Different Purlins:
C or z type: Size from C120~C320, Z100~Z200
7) Different Roof and Wall Panel:
Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm
8) All accessories:
Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc
9) Surface:
Two lays of Anti-Rust Paint
10) Packing:
Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ
You ONLY need you to provide us with the following information:
Design Parameters1) Live load on roof (KN/M2)
2) Wind speed (KM/H)
3) Snow load (KG/M2) - If Applicable
4) Earthquake load - If Applicable
5) Style of Doors and Windows
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure
7) Size: Width X length X eave height, roof slope
8) Or your idea!
BUT maybe you are unsure about what type or what needs you have regarding you're warehouse/workshop, or this project is your first one. Don't worry, we will teach you to choose the right style and the finest design within your budget.
Specifications
Steel structure building is widely used as warehouse, factory, hotel, church, garage etc. Is durable, economic and environment
1) Different sizes:
MOQ is 100m2, width X length X eave height
2) Different types:
Single slope
Double slope
Sing span
Double-span
Multi-span
Single floor, double floors
3) Different Bases:
Cement and steel foundation bolts
4) Different Columns and Beams:
Material Q345(S355JR)or Q235(S235JR) steel, all bolt connections, Straight cross-section or Variable cross-section
5) Different bracings:
X-type or V-type or other type bracing made from angle, round pipe, etc
) Different Purlins:
C or z type: Size from C120~C320, Z100~Z200
7) Different Roof and Wall Panel:
Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm
8) All accessories:
Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc
9) Surface:
Two lays of Anti-Rust Paint
10) Packing:
Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ
You ONLY need you to provide us with the following information:
Design Parameters1) Live load on roof (KN/M2)
2) Wind speed (KM/H)
3) Snow load (KG/M2) - If Applicable
4) Earthquake load - If Applicable
5) Style of Doors and Windows
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure
7) Size: Width X length X eave height, roof slope
8) Or your idea!
Name
| Specification
|
Length
| Single slope, double slope, muti slope
|
Width
| Single span, double-span, Multi-span
|
Height
| single floor, double floors
|
Column
| Q235, Q345 welding H section steel
|
Beam
| Q235, Q345 welding H section steel
|
Purlin
| Q235 C channel or Z channel
|
Knee brace
| Q235 angle steel
|
Vertical and transversal support
| Q235 angle steel, round bar or steel pipe
|
Tie ba r
| Q235 steel pipe
|
Brace
| Q235 round bar
|
Sleeve
| Q235 steel pipe
|
Cladding system
| sandwich panels (EPS, PU, Fiber glass wool etc.) or can use corrugated steel sheet
with fiber glass wool insulation and steel wire gauze.
|
Pa r tition wall
| sandwich panels (EPS, PU, Fiber glass wool etc.)
|
Second floor
| floor deck
|
Second floor office
| fiber cement board floor panel or checkered steel plate
|
Stair:
| Q235 steel structure with checkered steel plate
|
Ventilation:
| ventilator
|
Door
| sandwich panel sliding door or roller door
|
Windows
| PVC or Aluminum
|
Water
| Provided plan, design and technical service.
|
Electricity
| Provided plan, design and technical service.
|
Gutter
| stainless steel or color steel sheet
|
Rainspout:
| PVC
|
Live load on roof
| In 120kg/Sqm (Color steel panel surrounded)
|
Wind resistance grade
| 12
|
Earthquake-resistance
| 8degree
|
Qingdao KXD steel structure Co., Ltd, is a professional enterprise specializing in designing, developing, manufacturing, marketing and constructing high quality steel structures, prefabricated houses and container houses. We have professional steel structure engineering contracting first class qualification and ISO9001: 2000 quality system certification.
Our company was established in 1996. There are 1000 employees, including 5 registered engineers, 36 senior engineers and 120 professional technicians. Up to now, we have successfully undertaken and operated hundreds of international projects in more than 76 countries and regions around the world.
Our products are exported to North America, South America, Europe, Africa, Oceania and many Asian countries and regions. With the idea of "Credit builds brand", we have already established good relationships with many overseas clients.
Based on the spirit of "Credit, Professionalism, Cooperation, Mutual benefits", our company is building a comprehensive industrial chain system gradually and making great efforts to supply our quality products and perfect after-sales services to worldwide clients.
