Product Specifications
| Prod Model: |
NC-6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Product Model: |
Nc-6090 |
| Working Area: |
600x900x120mm |
| Lathe Structure: |
Cast Iron |
| Drive Bearings: |
Linear Square Rail & German Ball Screw |
| Spindle Motor: |
1.5kw Water-Coolant Spindle |
| Spindle Speed: |
0-24000rpm |
| Drive Motor: |
Stepper Motor |
| Operating System: |
DSP Control System or Nc-Studio |
| Interface: |
USB |
Product Description

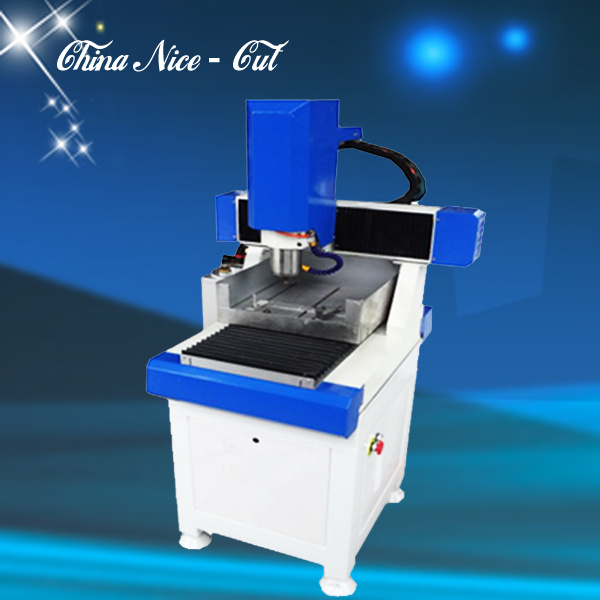

Stepper motor CNC Router Machine NC-6090:
Features:
1. The integrally cast lathe bed is used for great solidity and stability.
2. High precision makes it suitable for the arts and crafts advertising industry.
3. Option metal tools are available to facilitate metal engraving
4. High-speed water cooling spindle, high performance subdivision driver.
5. Precise and efficient control system, coming with professional software.
Applicable industries:
1. Craft & gift industry: Engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
2. Advertising industry: Engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
3. Wood working industry: Mainly used in redwood classical and antique furniture, wood carving, gifts wooden box, redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.
4. Model industry: Company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould.
5. Other lines: Also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.
|
NO. |
Description |
Parameter |
|
1 |
X, Y, Z Working Area |
600x900x120mm |
|
2 |
Table Size |
720X1135mm |
|
3 |
X, Y, Z Traveling Positioning Accuracy |
± 0.03/300mm |
|
4 |
X, Y, Z repositioning Positioning Accuracy |
± 0.05mm |
|
5 |
Lathe Structure |
Cast iron |
|
6 |
X, Y Structure |
Shaft Linear Bearings and Ball Screw |
|
7 |
Z Structure |
Ball Screw |
|
8 |
Max. Consume power |
3.0Kw |
|
9 |
Max. Speed |
0-6000mm/min |
|
10 |
Max. Working Speed |
0-3000mm/min |
|
11 |
Spindle Power Motor |
1.5kw water-coolant spindle |
|
12 |
Spindle Speed |
0-24000RPM |
|
13 |
Drive Mode |
Stepper Motor |
|
14 |
Working Voltage |
AC220V/380V, 50/60Hz |
|
15 |
Command |
G code, *uoo, *mmg, *plt |
|
16 |
Operating System |
DSP System |
|
17 |
Interface |
USB |
|
18 |
Flash Memory |
128M |
|
19 |
Collet |
ER18 |
|
20 |
X, Y Working Delicacy |
< 0.01mm |
|
21 |
Software |
Type3, Ucancam, Artcam |
|
22 |
Running circumstance |
Temperature: 0° C~45° C Relative humidity: 30%~75% |
|
23 |
Packing Size |
1300x1050x900mm |
|
24 |
Net Weight |
165KG |
|
25 |
Gross Weight |
202KG |
|
All parameters above subject to change without prior notice |
China Nice-Cut Mechanical Equipment specializes in manufacturing CNC routers, laser engraving/cutting machines, plasma cutting machines and cutting plotters. Our products are widely used in various industries such as arts and crafts processing, advertising, clothing, leather processing, model- and printed-hectograph making, woodworking and stone working.
Production Equipment from Japan, Germany, the US and Taiwan.
We have been devoted to the development of CNC, optical, mechanical and electrical integral technology for years. We use servomotors from Yaskawa (Japan), vacuum pumps from Beker (Germany), plasma generators from the US and LNC control systems and AMT square rails form Taiwan. We import this equipment from all over the world because we are focused on quality. Thanks to our business relationships in more than 30 countries, our Nice-Cut series of machines are known worldwide.
Our products come with at least one year warranty. We have seven technicians with at least three years' experience in charge of aftersales service. They can offer you on-site training and solve technical problems for you. Our seven foreign trade representatives speak English, French and Spanish. Test our products out on your market by taking advantage of our no-MOQ policy. Delivery takes just seven days.
