Stereo Microscope (MZ61)

Name: Stereo Microscope (MZ61)
Brand: China-Manufacturer-Directory.com
SKU: 677007215
Availability: InStock
Rating: 4.5 (74 reviews)

Supplier:	Micro-shot Technology Co., Ltd.
Price:	US $ 340/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	MZ61
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attribute (E. G.: Size):	Value (E. G.: 12 Inches)

Product Description

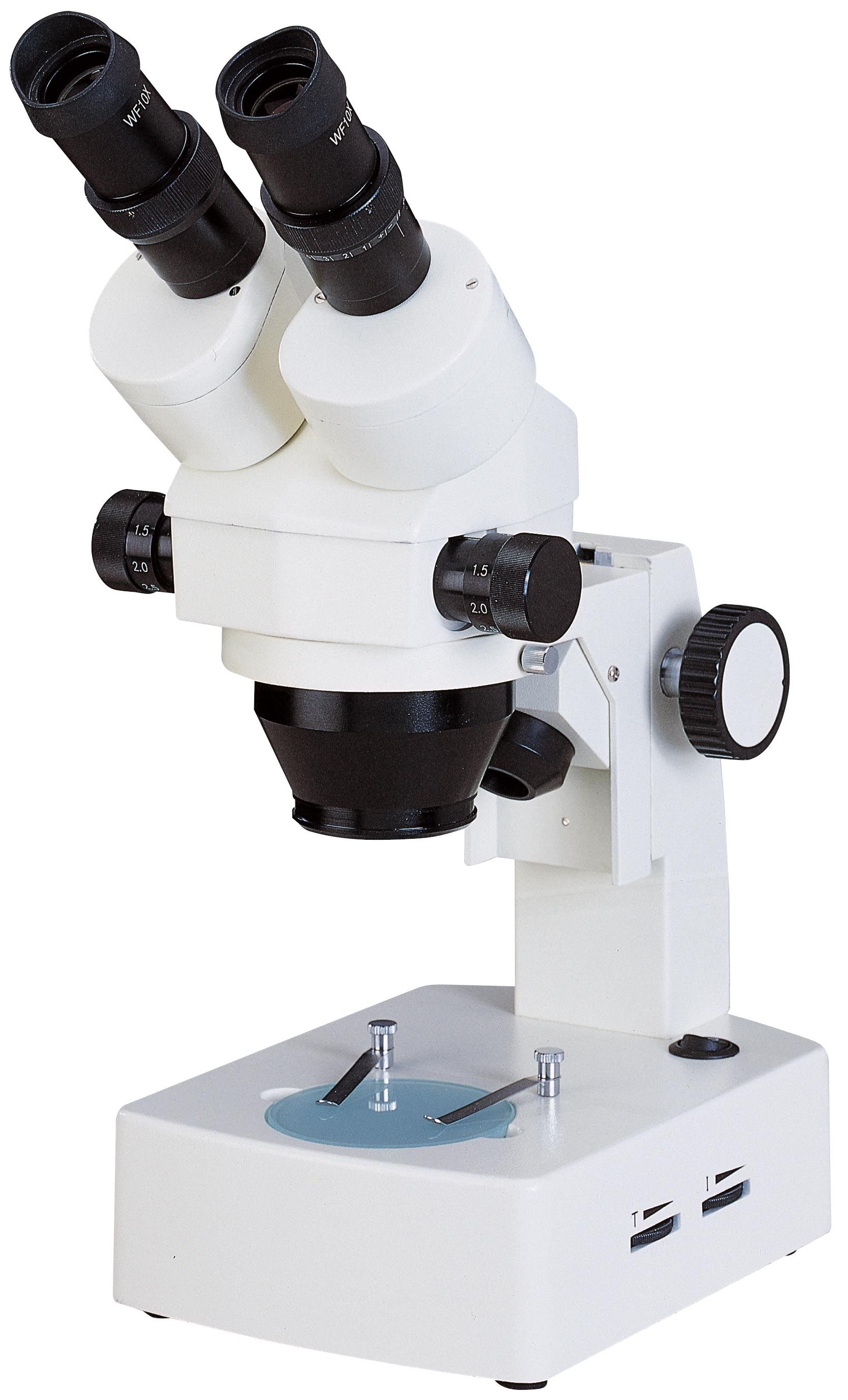

MZ61 series zoom stereo microscope with erect image, horizontal focusing knobs. It is characterized by long working distance, excellent image flatness, wide-field, easy operation etc. It is used extensively in basic research and education, agriculture and geology, as well as in electronic component manufacturing.

Features:
-Stereo Binocular Microscope - Turret Style Selectable Magnification.
-Wide-field, distortion-free.
-Zoom objective magnification 0.7X-4.5X.
-Viewing head: 45° Inclined, 360° Rotatable binocular head or trinocular head. The interpupillary distance between the microscope eye tubes, adjusts from 55mm to 75mm to fit each user.
-Great Economical Price! Priced thousands Lower than Competition!
-Scope sells for hundreds more in several science catalogs!

Other Specifications
-Manufactured under ISO: 9001 Standards.
-220 VAC Power Requirement (Contact us about 110V availability).
-High Quality Solid Construction!
-Precision Made Glass Optics!

Manufacturer's Warranty
-Warranty is 1 year on free for all microscope equipment.
-The microscope warranty covers problems arising from normal usage.
-We will repair or replace your defective microscopy equipment as needed during the warranty period.

Stereo Microscope MZ61
(1)MZ61-1 Series
Model Specification	MZ61-1A	MZ61-1B		MZ61-1C
Eyepieces	WF10X (\|μ 20mm)
Objective	Objectives range of zoom magnification 0.7X~4.5X
Total magnification	7X~45X
Visual field	\|μ 28.5~\|μ 4.5
Working distance	88mm
Vertical effective movement	25mm < = h < 265mm			25mm < = h < 240mm
Base size	240X180X25mm	300X240X25mm		240X180X25(mm)with movable stage, movement range: 42X42(mm)
Note: Please append a letter " T" in the backside of correspond model when you select the trinocular body.
(2) MZ61-2 Series
Model Specification	MZ61-2		MZ61-2A
Eyepiece	WF10X(\|μ 20mm)
Objective	Objectives range of zoom magnification 0.7X~4.5X
Total magnification	7X~45X
Visual field	\|μ 28.5~\|μ 4.5
Working distance	88mm
Vertical effective movement	25mm < = h < 265mm		25mm < = h < 130mm
Base size	215X160X60mm
Illumination model	Reflected light source: 12V10W halogen lamp with reflector cup and adjustable brightness
Note: Please append a letter " T" in the backside of correspond model when you select the trinocular body.
(3) MZ61-3 Series
Model	MZ61-3		MZ61-3A
Eyepiece	WF10X(\|μ 20mm)
Objective	Objectives range of zoom magnification 0.7X~4.5X
Total magnification	7X~45X
Visual field	\|μ 28.5~\|μ 4.5
Working distance	88mm
Vertical effective movement	25mm < = h < 265mm		25mm < = h < 130mm
Base size	215X160X60mm
Illumination model	Reflected light source: 12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source: 12V10W halogen lamp and adjustable brightness
Note: Please append a letter " T" in the backside of correspond model when you select the trinocular body.
(4) MZ61-101, 102Series
Model Specification	MZ61-101		MZ61-102
Eyepiece	WF10X (\|μ 20mm)
Objective	Objectives range of zoom magnification 0.7X~4.5X
Total magnification	7X~45X
Visual field	\|μ 28.5~\|μ 4.5
Working distance	88mm
Vertical effective movement	35mm < = h < 215mm		35mm < = h < 265mm
Base size	260X290X55mm		300X240X25mm
Illumination model	Reflected light source: 12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source: 12V10W halogen lamp and adjustable brightness		Reflected light source: 12V10W halogen lamp with reflector cup and adjustable brightness
Note: Please append a letter " T" in the backside of correspond model when you select the trinocular body.
