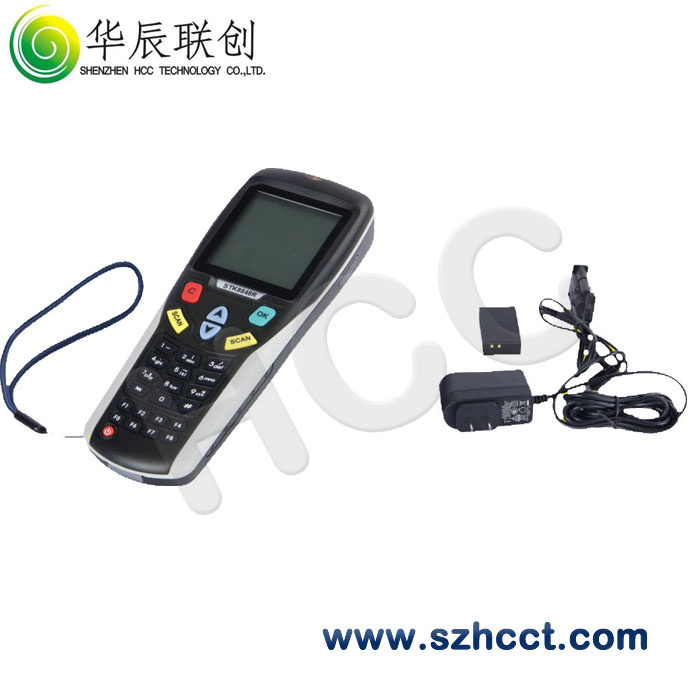

STK-8848/a/B/W/G Laser Barcode Data Collector
Product Specifications
| Prod Model: |
STK-8848 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Scan Speed: |
78 Times/Second |
| Ambient Temperature: |
-20o C~ 60o C |
| Dimension: |
185mm(L) * 70mm(W) * 30 Mm(H) |
| Weight: |
280 G |
Product Description
General
STK-8848 batch collector: Transfer data with a standard RS232 cable
STK-8848B Bluetooth collector: Transfer data with a wireless Bluetooth
STK-8848W Wi-Fi collector: Transfer data with 802.11b/g wireless network
STK-8848G GPRS collector: Transfer with GPRS of GSM net
Feature
Stylish appearance, high performance-price ratio, practical
| CPU | High-performance 32-bit ARM9 core processor, frequency is 100MHz or more (up to 192MHz) |
| Memory | FLASH: 10M bytes(standard) |
| RAM: 8M bytes |
| screen | 1, 160*160 pixel FSTN, COG Ultra-thin LCD
2, support 20 * 20 English and 10 * 10 Chinese character display
3, the use of high-tech materials, non-friable, no scratches
4, highlight backlight |
| Security module | dual SAM card backup, data encryption |
| keyboard | 27 keys, number+ function + auxiliary |
| communication | Standard RS-232 communication, up to 115200bps (STK-8848 type) |
| Bluetooth ( STK-8848B type) |
| 433Mhz wireless micro power communication (STK-8848A type) |
| WiFi (802.11b/g) (STK-8848W type) |
| GPRS wireless communication (900/1800/1900M) (STK-8848G type) |
| Combination of a variety of communication methods (custom) |
Barcode module
(standard) | Barcode mode | UPC-A/UPC-E/EAN(8, 13, 128)/CODE (128, 39, 93)/Post 25 yards, etc. |
| Scan speed | 78 times/second |
|
|
| Scan distance | 10-520mm |
| Barcode with | Directly contact: 250mm(Max) |
| Resolution | 0.15mm(Min); 0.125mm(Max) |
| Contactless card module, RFID module(optional) | Support ISO 14443A contactless card or ISO 15693RFID |
| battery | Rechargeable Li-ion battery
voltage: 3.7~4.2V; capacity: 2000mAh; standby time: at least 7 days; charging time: 8h |
| ambient temperature | -20º C~ 60º C |
| Working procedure | standard“ bar code management software; For customized applications |
| dimension | 185mm(L) * 70mm(W) * 30 mm(H) |
| weight | 280 g |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
Business Type: Manufacturer/Factory
Management System Certification: ISO 9001,HACCP
International Commercial Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, EXW
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 21~50 People
Export Year: 2008-03-05
Export Percentage: 71%~90%
Main Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: Rm. 306, 3/F, Bldg. 6, Changyuan New Material Port, No. 2 Gaoxin C. Ave. 1st, Nanshan Dist, Shenzhen, Guangdong, China
R&D Capacity: OEM, ODM, Own Brand(HCCTG)
No. of R&D Staff: 5-10 People
No. of Production Lines: 6
Annual Output Value: US$10 Million - US$50 Million
